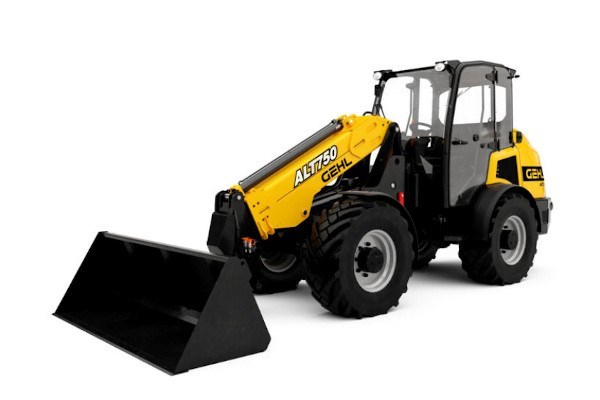

Need more reach on the construction site, farm, or lumber yard? The ALT750 is the answer. Pushing your lift abilities to new heights with a heavy-duty telescopic boom, the ATL750 is built with the agile chassis of the AL750—a reliable and strong foundation that's ready to take on tough tasks. A fully adjustable operator station providing true 360° visibility keeps you safe, comfortable, and ready for whatever challenges come your way. Built for any terrain or condition, the ALT750 is your opportunity to do more and extend your capabilities to a new level.

Static tipping load with bucket (straight):  7714 lb
Max. height of bucket pivot point:  16 ft 6 in
Engine power (kW):  55 kW
Overall width:  6 ft 5 in

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the ALT750

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the ALT750

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on ALT750

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

ALT750 Features & Benefits

Key Features

  • 4-Post Canopy ROPS and FOPS Certified
  • Proportional Auxiliary Hydraulics with Case Drain and Circuit Pressure Dump
  • Inching Pedal
  • Digital Display with Audible and Visual Indicators
  • Differential Lock (Hydraulically Activated Front and Rear)
  • Power-A-Tach® Attachment Mounting System (4-Point, Skid Steer and EuroStyle)
  • Telescopic Lift Arm with Z-Bar Bucket Linkage and Mechanical Self-Level
  • Lift Arm Float Detent
  • Hydraglide™ Ride Control*
  • High-Flow Auxiliary Hydraulics*

*Optional Features

ALT750 Specs & Compare

CapacitiesImperial
Static tipping load with bucket (straight)7714 lbs
Static tipping load with bucket (full turn)4012 lbs
Max. payload with forks as per EN 474-3 (80%)3527 lbs
Max. height of bucket pivot point16 ft 6 in
Max. lifting height (below forks)15 ft 11 in
Max. outreach10 ft 10 in
Breakout force with bucket4990 daN
Static tipping load with bucket (retracted)7714 lbs
Static tipping load with bucket (extended)4012 lbs
Bucket hinge pin height (retracted)12 ft 10 in
Bucket hinge pin height (extended)16 ft 6 in
Weight and dimensions
Unladen weight (with forks) with 4-post canopy12300 lbs
Ground clearance1 ft  in
Overall length to carriage (without hitch)18 ft 10 in
Overall cab width4 ft 2 in
Overall width (over tyres)6 ft 5 in
Overall height with 4 posts canopy8 ft 2 in
External turning radius (over tyres)13 ft 3 in
Articulation angle40 °
Standard tyres405/70-20
Engine
Engine brandDeutz
Engine modelTD3.6 L4
Number of cylinders4
I.C. Engine power rating / Power (kW)74.30 Hp / 55 kW
Max. torque / Engine rotation330 Nm / 2300 rpm
Engine cooling system2 radiators water + hydraulic oil
Transmission
Transmission typeHydrostatic
Number of gears (forward / reverse)2 / 2
Travel speed (laden)19 mph
Max. travel speed (may vary according to applicable regulations)12 mph
Differential lockFront and rear locking of the machine
Parking brakeManual
Hydrualics
Hydraulic pump typeGear pump
Hydraulic flow - Pressure18 US gpm / 5511 PSI
High-Flow Option (l/min)29 US gpm
Drive hydraulic system pressure5511 PSI
Tank capacities
Hydarulic oil19 US gal
Fuel tank30 US gal
Noise and vibration
Vibration to whole hand/arm< 2.50 m/s²
Miscellaneous
Safety cab homologationCabin ROPS - FOPS Level 1
