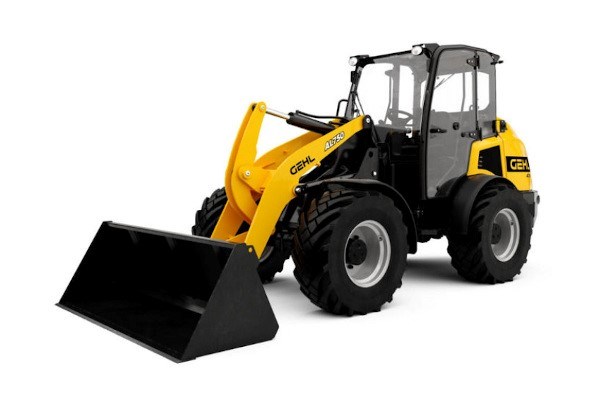

Gehl AL750
Static tipping load with bucket (straight): 7908 lb
Max. height of bucket pivot point: 11 ft 5 in
Engine power (kW): 55 kW
Overall width: 5 ft 9 in
Shopping Tools
AL750 Features & Benefits
For tough jobs, you need a tougher machine. The largest Articulated Loader with a standard lift arm we offer, the AL750 is for those who can't compromise—on agricultural and construction sites or anywhere else that demands more lifting power. Swiftly getting the job done with its high-performing hydrostatic transmission and Z-Bar lift arm for extra break-out force, this rugged and robust machine chews through the hardest workdays in less time. The AL750 has your back, enabling you to do your best work from the minute you arrive at work until the minute you head home.
AL750 Specs & Compare
| Capacities | Imperial |
| Max. height of bucket pivot point | 11 ft 5 in |
| Max. lifting height (below forks) | 10 ft 9 in |
| Breakout force with bucket | 5906 daN |
| Static tipping load with bucket - Straight with cab | 7908 lbs |
| Static tipping load with bucket - Full turn with 4-post canopy | 5778 lbs |
| Static tipping load with bucket - Full turn with cab | 6127 lbs |
| Static tipping load with pallet forks - Straight with cab | 6354 lbs |
| Static tipping load with pallet forks - Straight with 4-post canopy | 6043 lbs |
| Static tipping load with pallet forks - Full turn with 4-post canopy | 4793 lbs |
| Static tipping load with bucket - Straight with 4-post canopy | 7447 lbs |
| Weight and dimensions | |
| Unladen weight (with forks) with 4-post canopy | 10540 lbs |
| Unladen weight (with forks) | 10919 lbs |
| Ground clearance | 1 ft |
| Overall length to carriage (without hitch) | 14 ft 7 in |
| Wheelbase | 6 ft 9 in |
| Overall width of 4 posts canopy | 4 ft 9 in |
| Overall cab width | 4 ft 9 in |
| Overall width (over tyres) | 5 ft 9 in |
| Overall height with 4 posts canopy | 8 ft 2 in |
| Overall height with cab | 8 ft 2 in |
| Tilt-up angle | 45 ° |
| Tilt-down angle | 45 ° |
| External turning radius (over tyres) | 11 ft 2 in |
| Articulation angle | 45 ° |
| Engine | |
| Engine Brand | Deutz |
| Engine model | TD3.6 L4 |
| Number of cylinders / Capacity of cylinders | 4 - 220 in³ |
| I.C. Engine power rating / Power (kW) | 74.30 Hp / 55 kW |
| Max. torque / Engine rotation | 330 Nm / 2300 rpm |
| Engine cooling system | 2 radiators water + hydraulic oil |
| Transmission | |
| Transmission type | Hydrostatic |
| Number of gears (forward / reverse) | 2 / 2 |
| Travel speed (laden) | 19 mph |
| Max. travel speed (may vary according to applicable regulations) | 19 mph |
| Differential lock | Front and rear locking of the machine |
| Parking brake | Manual |
| Hydraulics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow - Pressure | 18 US gpm / 2901 PSI |
| High-Flow Option (l/min) | 30 US gpm |
| Drive hydraulic system pressure | 5511 PSI |
| Tank capacities | |
| Hydraulic oil | 19 US gal |
| Fuel tank | 27 US gal |
| Noise and vibration | |
| Vibration to whole hand/arm | < 2.50 m/s² |
| Miscellaneous | |
| Safety cab homologation | Cabin ROPS - FOPS Level 1 |
