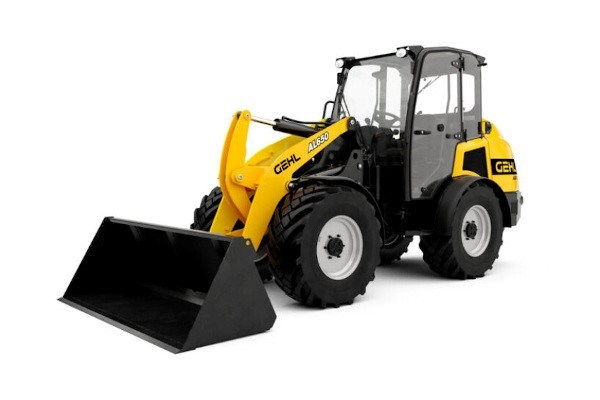

Gehl AL650
Built to deliver a new level of productivity in the most demanding environments, the AL650 combines compact dimensions with raw power—giving you the ability to slip in and out of tight spaces without compromising on lift strength. With full 360° visibility, an adjustable workspace, and ergonomic controls centralized around an intuitive joystick, the AL650 ensures you'll get the job done in comfort all day long. When hard work comes calling, answer with a machine that's as capable, strong, and committed as you.
Static tipping load with forks (straight): 5302 lb
Static tipping load with bucket (straight): 6744 lb
Max. height of bucket pivot point: 10 ft 11 in
Engine power (kW): 48 kW
Shopping Tools
AL650 Features & Benefits
Key Features
- 4-Post Canopy ROPS and FOPS certified
- Proportional Auxiliary Hydraulics with Case Drain and Circuit Pressure Dump
- Inching Pedal
- Digital Display with Audible and Visual Indicators
- Differential Lock (Hydraulically Activated Front and Rear)
- Power-A-Tach® Attachment Mounting System (4-Point, Skid Steer and EuroStyle)
- Lift Arm with Z-Bar Kinematics, Limited Self-Level and Mechanical Return to Dig
- Lift Arm Float Detent
- Hydraglide™ Ride Control*
- High-Flow Auxiliary Hydraulics*
*Optional Features
AL650 Specs & Compare
| Capacities | Imperial |
| Max. height of bucket pivot point | 10ft 11 in |
| Max. lifting height (below forks) | 10 ft 3 in |
| Breakout force with bucket | 5743 daN |
| Static tipping load with bucket -Straight with cab | 6744 lbs |
| Static tipping load with bucket - Full turn with 4-post canopy | 4916 lbs |
| Static tipping load with bucket - Full turn with cab | 5245 lbs |
| Static tipping load with pallet forks - Straight with cab | 5302 lbs |
| Static tipping load wit h pallet forks -Straight with 4-post canopy | 4980 lbs |
| Static tipping load with pallet forks - Full turn with 4-post canopy | 3920 lb s |
| Static tipping load with bucket -Straight with 4-post canopy | 6409 lbs |
| Weight and dimensions | |
| Unladen weight (with forks) with 4-post canopy | 9149 lb s |
| Unladen weight (with forks) | 9500 lbs |
| Ground clearance | 1 ft 3 in |
| Overall length to carriage (without hitch) | 14 ft |
| Wheelbase | 79 in |
| Overall width of 4 posts canopy | 4 ft 6 in |
| Overall cab width | 4 ft 6 in |
| Overall width (over tyres) | 5 ft 5 in |
| Overall height with 4 posts canopy | 8 ft 1 in |
| Overall height with cab | 8 ft 1 in |
| Tilt-up angle | 45 ° |
| Tilt-down angle | 45 ° |
| External turning radius (over tyres) | 10 ft 10 in |
| Articulation angle | 45 ° |
| Engine | |
| Engine brand | Ycrnmar |
| Engine model | 4TNV98CT |
| Number of cylinders / capacity of cylinders | 4- 201 in 3 |
| I.C Engine power rating / Power (kW) | 64.40 Hp / 48 kW |
| Max. torque/ Engine rotation | 280 Nm / 2300 rpm |
| Engine cooling system | 2 radiators water+ hydraulic oil |
| Transmission | |
| Transmis sion type | Hydrostatic |
| Number of gears (forward / reverse) | 2 / 2 |
| Travel speed (laden) | 19 mph |
| Max. travel speed (may vary according to applicable regulations) | 19 mph |
| Differential lock | Machine Lock Rear & front |
| Parking brake | Manual |
| Hydrauics | |
| Hydraulic pump type | Gear pump |
| Hydraulic flow - Pressure | 18 US gpm / 2901 PSI |
| High-Flow Option (I/min) | 26 US gpm |
| Drive hydraulic system pressure | 6092 PSI |
| Tank capacities | |
| Hydrau lie oii | 19 US gal |
| Fuel tank | 25 US gal |
| Noise and vibration | |
| Vibration to whole hand/arm | < 2.50 m/s 2 |
| Miscellaneous | |
| Safety cab homologation | Cabin ROPS - FOPS Level 1 |
