Exmark RDE691GKA48200

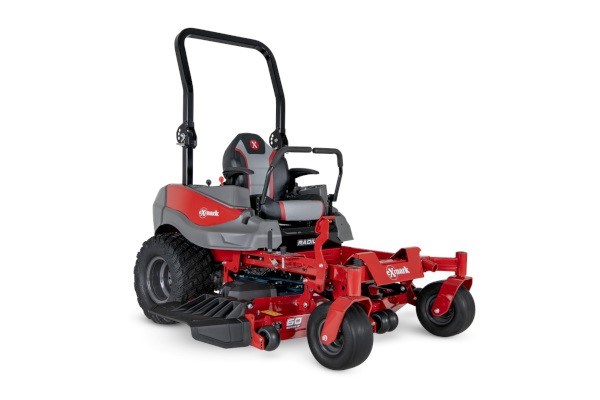

Radius E-Series with 23 HP* Kawasaki FR691 Engine and 48” Series 2+ Deck (Available Spring 2026)
With the performance you expect from Exmark, new features and a fresh new look, the Radius E-Series is the right choice for home and acreage owners looking for a commercial-grade mower without breaking the bank. Choose from 48-, 54-, or 60-inch Exmark Series 2+ cutting decks and a wide range of available accessories for maximum versatility. And with new Kawasaki V-twin engine options, Radius E-Series models deliver more performance per dollar than ever before.
Shopping Tools
RDE691GKA48200 Features & Benefits
Adjustable Rollover Protection System (ROPS)
New square tubing rollover protection system (ROPS) is easily foldable for storage.
Height of Cut Made Easy
Exmark’s patented cut height adjustment system is very easy to use, enabling the user to quickly set height of cut with unmatched accuracy, right from the operator seat.
High-Strength Steel Frame
Fabricated and fully welded of high-strength rectangular steel tubing, the Radius frame places the heaviest components –– engine, transmission and fuel tank –– low and centralized in the frame. This lowers the machine’s center of gravity for increased traction and stability. New steel engine guards increase engine protection at the sides and rear of the machine, while also being easily removable for service access.
Series 2+ Cutting Deck
Fabricated and fully welded from high-strength steel, the Exmark Series 2+ cutting decks feature maintenance-free sealed bearing spindle assemblies and durable double-capture anti-scalp rollers to deliver the cut quality and durability you expect from Exmark.
Integrated Hydro Pump and Motor Design
Dual HydroGear ZT-2800 hydro transmissions feature an integrated pump and motor design for maximum efficiency, long-term reliability and ground speeds of up to 8 mph.
Large Drive and Caster Tires
Radius E-Series models are equipped with large, smooth-riding 22-inch drive tires and 13-inch caster tires.
RDE691GKA48200 Specs & Compare
| EQUIPMENT | RDE691GKA48200 |
| UPC | 193308243740 |
| Width / Cutting Deck | 48" |
| Drive | Hydro-Drive |
| Starter | Electric |
| Steering Control | Hydraulically dampened twin levers adjustable both fore and aft. Also has 2-position height adjustment. |
| Caster Forks | .375" thick caster yoke arms. |
| Front Caster Tires | 13 x 6.5-5 smooth-tread, pneumatic. |
| Drive Tires | 22 x 10-10 K3012 |
| Safety Package | Operator Presence Controls (OPC) and drive system interlock. |
| Parking Brake | Automatic-actuated pawl brake. |
| Tractor Frame | Unibody, riveted 10-guage steel. |
| Blade Spindles | No maintenance, sealed and non-greasable spindles; 7.75"-diameter cutter housing with 25mm (.98") diameter spindle shaft. |
| Cup Holder | Yes |
| Electrical | 12 volt battery with 15-amp alternator |
| Standard Features | Hour meter, cup holder, hitch |
| Seat | Deluxe, two-tone, bolstered seat with flip up armrests and integral safety switch |
| Optional Features | Hour meter and seat armrests |
| POWER COMPONENTS | |
| Engine Brand | Kawasaki |
| Transmission Brand | Hydro-Gear |
| Transmission Speeds | Infinitely Variable |
| Engine Model | FR691 |
| Engine Displacement | 691 |
| Engine Series | V-Twin |
| Fuel System | Carbureted |
| Speed | Infinitely variable speed selection from 0-8.0 mph forward, 0-4.0 mph reverse |
| Transmission | Hydrostatic |
| Engine Spec | AS43-R |
| Engine Speed | 3,600 rpm |
| Air Filter | Standard Engine Manufacturer's air filter |
| Fuel Capacity | 7-gallon single fuel tank with single fill location |
| Drive Description | Two Hydro-Gear ZT-2800 hydro static transmissions with no hoses and integrated cooling fans and integrated reservoir |
| Fuel Type | Gas Carbureted |
| PTO Engagement | Electromagnetic 105-ft-lb clutch |
| Drive Wheel Release | Allows unit movement without engine running. |
| Fuel Indicator | Float Gauge |
| Deck Lift | Foot pedal, single point drop pin HOC |
| Carb Compliant | No |
| ROPS | 2-post foldable ROPS standard with seat belt. |
| DECKS | |
| Deck Style | Floating Deck |
| Deck Style Description | Series 2 plus fabricated and welded steel deck. Decks have side discharge standard with the option ot bag or mulch |
| Deck Construction | 7-gauge top that is formed and welded, 12-gauge side skirt and .375" welded bumper. 4 point suspension. |
| Cutting Heights | 1.5" to 5.0" in 0.25 increments |
| Blade Tip Speed | Approximately 18,500 fpm |
| Blades | 3 Blades at 16.50" Length |
| DIMENSIONS | |
| Width | 60.6" |
| Height | 73.7" |
| Curb Weight | 804 |
| Length | 83.9" |
