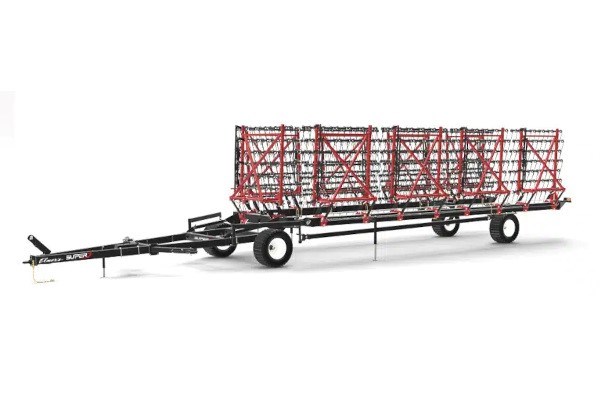

Elmer's Manufacturing Super 7 – 70’

DYNAMIC GROUND PRESSURE

GET MORE DONE PER PASS

Electronically set in-cab, and hydraulically actuated with 26 inches of independent vertical motion on each section to maintain constant pressure regardless of the terrain, providing the operator with consistent ground contact, pressure, and finish.

SINGLE PIVOTING WHEEL

UNFOLD IN LESS SPACE & TIME

Hydraulically controlled pivoting wheels allow the transport and field wheels to be replaced by larger tires, increasing flotation and reducing the amount of space and time needed to unfold.

S7 PRO

HARROW MORE ACRES PER DAY

The PRO option for the Super 7 Harrow adds a level of automation and control to the harrow that has not been seen before. The PRO hydraulic manifold and controller provide several new features, which can be accessed through a tablet or ISOBUS interface. Simplified field controls allow the operator to run at faster speeds, covering more acres per day without compromising on field finish.

CONTROLS

Elmer’s has been at the forefront of harrow technology for the past decade, since the introduction of the first 7-Bar Harrow to the latest solid pull arm advancements. With customer feedback at the top of mind, Elmer’s is excited to announce the next generation of Super 7 Harrow. The Super 7 has been redesigned to provide a more versatile and user-friendly product for a more consistent field finish. Differences include:

STANDARD FEATURES

Our harrow has the original 7 Bar Design which harrows 40% more of your field per pass. Combine that with the 3-way in cab adjustability and heavy duty construction it is truly a harrow that can do it all!

• Built To Last - 10" x 10" Toolbar, Solid Pull Arms and refreshed SecureLock System equipped with spring-applied latches & cylinder-mounted interlocks eliminates the possibility of unlatching during operation or with hydraulic pressure loss.
• Worry Free Operation - Completely greaseless and equipped with MAXLIFE Hardened Harrow Tines – The MAX LIFE process infuses weld-embedded tungsten carbine onto the harrow tine allowing you to harrow in the toughest conditions without worrying about excessive tine wear.
• Less Maintenance - The Super7 is completely greaseless.
• Elmer’s 7 bar design combined with 1/2” hardened tines allows for more harrow action, chopping straw, spreading residue more evenly and incorporating seed and chemicals without compromising field finish.

S7 PRO

The PRO option for the Super 7 Harrow adds a level of automation and control to the harrow that has not been seen before. The PRO hydraulic manifold and controller provide several new features, which can be accessed through a tablet or ISOBUS interface.

• Fold and Unfold Automation - This feature allows the harrow to auto-latch and fold up/down sections between transport and field modes without operator input to the hydraulics, based on the mode selected.
• Advanced Field Controls & Setting Presets - Super 7 PRO includes advanced field controls, allowing operators to create and store up to fifty presets. With each pre-set, you can choose a setting for your ideal field finish or create quick actions for dumping straw and easier cornering.
• Steerable Wheels - The wheels are controlled together through software allowing the operator to guide the harrow around obstacles and through field approaches with ease.
• Hydraulic Override - Finally, the Super 7 Harrow is equipped with a hydraulic override for each valve, ensuring that the harrow is always operational, even in the event of an electrical failure on the harrow or tractor.
