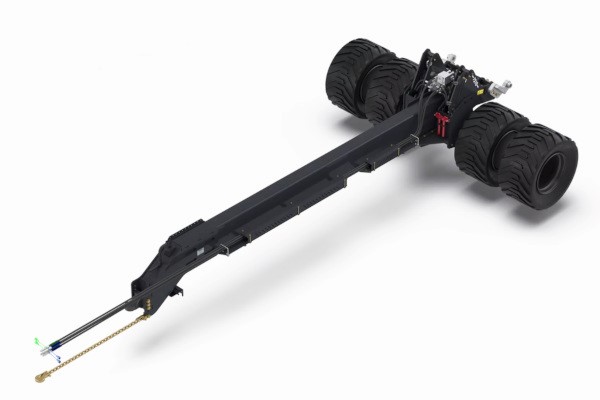

Dawn Equipment 72 Series

• Converts 3-Point To a Pull-Type
• Carries Most Standard CAT 3N/3/4N
• Dual Floater Tires
• Simple Design
• 24,000 lb. Lift Capacity
• Integrated Rear Bulkhead

Features
Enhance Flexibility with Bolt-On Lower Lugs
Our carrier is equipped with bolt-on lower lugs for fast and flexible reconfigurations. Its modular design allows you to easily adapt to one Category size or alternate between different Category sizes throughout the year—no welding or major modifications needed.

Increased Safety with Transport Lock
The carrier includes a user-friendly safety lock for transport, easily engaged by inserting a lock pin into one of two travel height setting holes. This dual-hole design accommodates taller toolbars while maintaining legal transport height. The front hole sets the lower lug at 41.5" from the ground, while the rear hole sets the lower lug at 33" from the ground.

Stay Organized with Bulkhead Plate
The integrated bulkhead keeps hydraulic and electrical components organized, reducing the risk of damage during operation and transport. It features holes for -8 and -6 bulkhead fittings, as well as standard M12 cables. It also includes a spot for the 7 pin trailer socket which is included on every Carrier. A series of additional mounting holes allow for future expansion, making the system easily customizable to meet your evolving needs.

Reduce Downtime with Routing Tube
Each carrier includes our streamlined routing tube system, borrowed from our larger toolbar designs. The removable top allows hoses and cables to be laid in quickly, simplifying accessory installation and reducing setup time. This design also protects components from damage during operation and transport, ensuring a clean and secure routing solution.

Decrease Compaction with Floater Tires
Our carrier was specifically engineered to support floater tires, addressing the critical issue of ground compaction in modern farming. By enabling larger tire configurations, the system improves weight distribution and reduces soil disturbance. This capability was a key objective in the carrier’s design, ensuring adaptability without compromising performance.

72 Series Carrier Floater Tires
Decrease Customization with Switch Rail
Our switch rail serves multiple functions, starting with providing a convenient location for setting upper and lower 3-point height limits. These limits can be easily overridden with activating a simple switch, allowing for tool-free operation when adjustments beyond preset limits are needed. Additionally, the switch rail offers a centralized mounting point for other essential switches for GPS, rate controllers, and more.

72 Series Height Switch Rail
