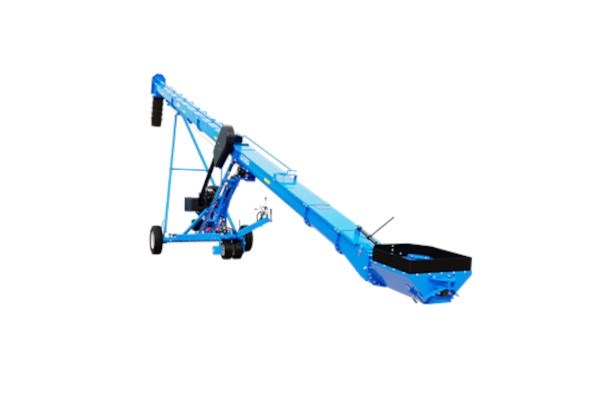

Brandt 1345B LP (Low Profile)
The Low Profile (LP) intake provides up to 3’ of additional intake reach for wide diameter hopper bins and an intake height less than 14”
- Capacities up to 6900 bu/hr in cereal crops.
- Capacities up to 7500 bu/hr in canola.
- 19’ of intake reach with self-levelling hopper offering 14” of clearance.
- Seed Saver baffle plate is standard to manage risk of overflow and to reduce splash.
- Available in diesel.
Shopping Tools
1345B LP (Low Profile) Features & Benefits
Increased Productivity
- Oversized intake flighting and funnel-shaped hopper improve grain flow efficiency.
- 13” U-trough allows more grain to move above the flighting for higher output and less damage.
- Purpose-built discharge flares open to handle peak capacities to prevent risk of plugging.
- Move up to 9,000 bu/hr in canola and up to 7,100 bu/hr in cereal crops.
Maximum Uptime
- HD 3-bearing Gearbox and chain coupler handles higher load tolerances of high torque operation.
- Improved reliability of the solid round bar driveline and head-end drive chain keep the auger working.
- Triple-banded belt delivers maximum traction, and belt tensioning system optimizes power transfer.
- For easy belt tensioning, an adjustment nut on a threaded rod is used to move the idler.
Simple Operation
- A frame-mounted engine keeps all controls and most service points at ground level.
- Axle powered EZMOVE and its available AWD kit offer dependable portability in all yard conditions.
- Industry-leading reach with a low-clearance hopper ensures an optimized fit for more bin setups.
- Retractable hopper provides 14” – 24” of clearance to get under bins and raises up to prevent loss.
Frame-mounted Engine
The engine position uses a self-leveling mount connected by a parallel linkage to a pivot point aligned to the main drive pulley. This maintains proper belt tension.
Triple Banded Belt
Belt delivers higher load capacity and better performance. It also reduces slippage and improves stability, reducing vibration.
Protected Driveline
A chain coupler on the gearbox output shaft helps dampen the shock load on the gearbox and engine and accounts for any misalignment in the driveline.
Convenient Controls
Operator control station includes ignition, throttle, electric clutch, and EZMOVE operations.
Convenient Controls
Operator control station includes ignition, throttle, electric clutch, and EZMOVE operations.
Total Cleanout
The cleanout door on the hopper delivers complete cleanout with the reversible gearbox.
All-Wheel Drive Kit
The AWD kit provides power to the steering wheels of the EZMOVE system for the ultimate traction for navigating the worst yard conditions.
Drive Options
Multiple drive options available: 40hp Vanguard EFI Gas, Electric Drive, and PTO Drive.
1345B LP (Low Profile) Specs & Compare
| Performance - Capacity (bu/hr) | LP Intake |
| Gas (40hp) | up to 7,500 |
| Dimensions | |
| Length | 48' |
| Height - Lowered | 9' 10" |
| Height - Raised | 21' 10" |
| Height - Transport | 12' 1" |
| Reach - Lowered | 16' 2" |
| Reach - Raised | 16' 7" |
| Intake Reach - Lowered | 17' 9" |
| Intake Reach - Raised | 17' 9" |
| Width | 8' |
| Trough Thickness | 12 ga w/ 3/16" top cover |
| Trough Length | 51'6" |
| Trough Width | 11" |
| Trough Depth | 13" |
| Main Flight | 10" x 7GA" |
| Intake Flight | 11" x 1/4" |
| Flight Core Diameter | 2" |
| Top End Drive | #80 |
| Drive Belt | Triple-banded |
| Weight - Hitch (lbs) | ~480 |
| Weight - Total (lbs) | ~4,400 |
