Brandt Low Profile Intake

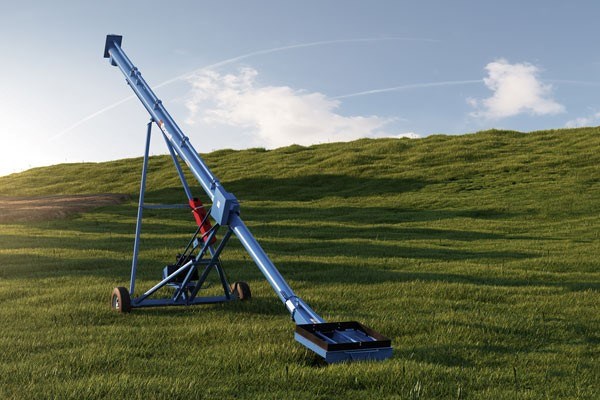

Whether you’re emptying hopper bins or center bin unloads Brandt’s Low Profile Transport Augers provide the maximum clearance you need while delivering the capacity required to keep your operation running smoothly and efficiently.
Available on all 8" and 10" auger models, the Low Profile intake uses Extended Life Flighting, a tapered transition and a self-levelling hopper to maximize capacity and ease of use when every second counts to get the job done.
Shopping Tools
Low Profile Intake Features & Benefits
Low Profile Intake
Brandt’s Low Profile Intake provides clearance when it’s needed though a self-leveling hopper and a tapered transition section to focus the flow of grain from the hopper into the tube. Extended Life Flighting with optimized pitch keeps the grain moving at the performance you’d expect from Brandt.
Strengthened Undercarriage
The undercarriage has been designed to offer maximum discharge and intake reach while maintaining optimum stability at any height.
Grease Bath Head End
The sealed cover allows the double chain drive and sprockets to be run in a grease bath, extending the life of parts and minimizing repairs.
Extended Life Flighting
Brandt's Extended Life Auger Flighting is thicker at the edges. The raised profile strengthens the area where most wear occurs, keeping your auger running longer and more efficiently.
Heat Treated Sprockets
For maximum durability, Brandt Transport Augers feature a heavy-duty, chain drive and heat-treated sprockets.
Dual Flex Couplers
Using two flex chain couplers dramatically reduces strain and stress on the driveline for increased durability and more reliable operation.
Fully Enclosed Driveline
The entire length of the drive shaft is fully guarded; from the gearbox to the head end cover to protect from weathering, improve operator safety, and reduce required maintenance.
Working Lights
The Triple Halogen Work Light Package includes lights mounted on the discharge, intake and above the engine, helping you safely move grain at night and speed up your fieldwork.
EZMOVE
Brandt’s EZMOVE Mover System with joystick controlled hydraulic steering does the heavy lifting for you. An integrated mover system that is designed to work both in the yard and out in the field to make your job easier.
All Brandt Transport Auger mover systems come standard with a hydraulic winch and intake lift cylinder and are hydraulically powered using ring gear drives mounted to the auger wheels, allowing Brandt Transport Augers to move freely across any terrain.
Drive Options
- Gas Drive
- Diesel Drive
- Direct Drive PTO
- Centre Drive PTO
- Electric Drive - Tube-Mount & Undercarriage Mount
Attachment Options
- Hydraulic Winch
- Reversible Gearbox
- Reversing Gearbox Linkage/Handle
- Electric Clutch
- Soft Start
- Large Gas Tank
- Poly Hopper
- Hopper Cover
- Bucket Spout
- Enclosed Guard Kit
- Safety Light Kit
- Work Light Kit
- Shovel Holder
- Dolly Wheel
- EZMOVE mover system
Low Profile Intake Specs & Compare
| Low Profile Intake | Length | Height | Capacity |
| 832A LP | 32 ft | 9' 5" - 21' 6" | 3200 bu/hr |
| 837A LP | 37 ft | 9' 1" - 23' 7" | 3200 bu/hr |
| 842A LP | 42 ft | 9' 1" - 26' 0" | 3200 bu/hr |
| 847A LP | 47 ft | 10' 5" - 31' 0" | 3200 bu/hr |
| 852A LP | 52 ft | 10' 5" - 33' 6" | 3200 bu/hr |
| 862A LP | 62 ft | 11' 9" - 41' 2" | 3200 bu/hr |
| 1032A LP | 32 ft | 9' 3" - 21' 5" | 5000 bu/hr |
| 1037A LP | 37 ft | 9' 1" - 23' 7" | 5000 bu/hr |
| 1042A LP | 42 ft | 10' 5" - 26' 0" | 5000 bu/hr |
| 1052A LP | 52 ft | 10' 4" - 33' 5" | 5000 bu/hr |
