Our powerful sub-compact tractor is small enough to go where bigger tractors can't and can still do the heavy lifting.

  • Get a Quote Value Your Trade
  • Send to a Friend
  • Payment Calculator

    • Get information on the 1022 Sub-Compact Tractor

    Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

    Send your friend information on the 1022 Sub-Compact Tractor

    Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

    Requesting Trade In on 1022 Sub-Compact Tractor

    Contact Information
    Equipment Interested In
    Trade Information

    Request A Demo

    Fields with asterisks* are required.

    Loan Calculator

    Use the Loan Calculator to help you determine the financing and payment options that are best for you.

    Amount Financed ($)
    Interest Rate (%)
    Loan Term in Months
    Monthly Payment Calculated

    **The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools
Contact Salesman
Request Demo
Apply for Financing

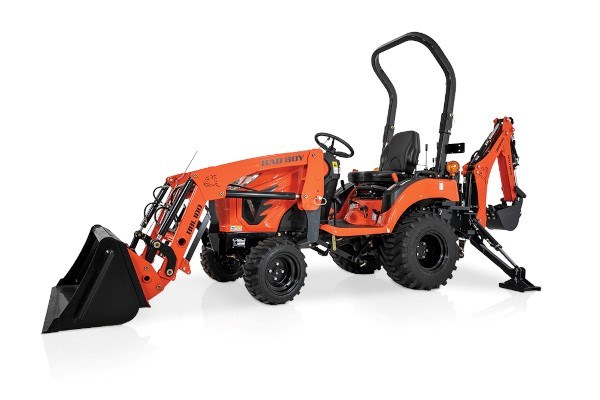

1022 Sub-Compact Tractor Features & Benefits

FEATURING:

  • 22 HORSEPOWER
  • 617 LBS. LOADER LIFT CAPACITY AT PINS
  • HYDRO MAX TRANSMISSION
  • TREADLE STYLE HST PEDALS
  • REVERSE MOUNT ENGINE



ADDITIONAL FEATURES

  • 2 RANGE TRANSMISSION
  • INDEPENDENT PTO
  • POWER STEERING
  • SELECTABLE 4WD
  • DIFFIRENTIAL LOCK
  • 7 YEAR POWERTRAIN WARRANTY

1022 Sub-Compact Tractor Specs & Compare

1022 Engine
Engine3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM21.5
Displacement (in.)60.6
Number Of Cylinders3
Fuel Tank (gal.)6.6
1022 Drivetrain
TransmissionHST
Number Of Speeds2 Range
ClutchDry Single Plate
BrakesWet, Multi-Disc
1022 Hydraulics
TypePower Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement)6.3 (2.1+4.2) / 23.8 (8+15.8)
3-Point HitchLimited Cat 1
Rear Remote ValveOptional (Up To 1)
3-Point Hitch Lift Capacity @ 24" Behind Lift Point (lbs.)679
1022 Dimensions
Overall Length94.2"
Overall Width44.5"
Overall Height86.6"
Wheelbase53.1"
Minimum Ground Clearance8.3"
Weight1,433 lbs.
1022 PTO
TypeIndependent
Rear (Mid) PTO Speed540
PTO HP15.4
1022 Electrical
Battery12 V, 500 CCA
Alternator12 V, 40 A
1022 Wheels & Tires
IND (Front)18X8.50-10
IND (Rear)26X12-12
1022 Loader - Model BBL100
Standard Bucket Size (in.)48
Maximum Lift Height (in.)72.7
Dig Depth (in.)4
Lift Capacity To Full Height At Pivot Pin (lbs.)617
Breakout Force (lbs.)1,253
Shipping Weight (lbs.)438
1022 Backhoe - Model BBH100
Standard Bucket Size (in.)12
TypeSubframe-Mounted, Quick Attach
Maximum Dig Depth (in.)66
Dig Force Bucket (lbs.)1,975
Shipping Weight (lbs.)747
