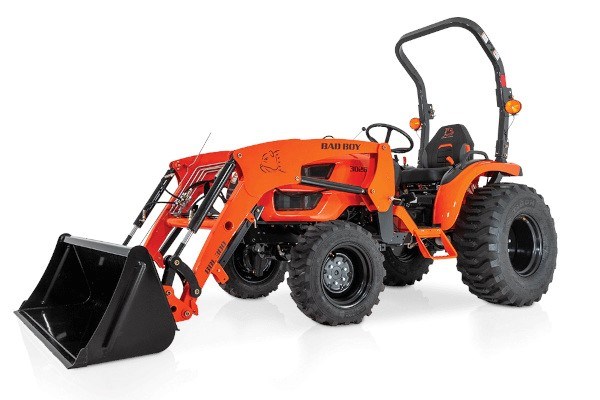

3026 Compact Tractor Features & Benefits

FEATURING:

  • 25 HORSEPOWER
  • 1,314 LBS. LOADER LIFT CAPACITY AT PINS
  • HYDRO MAX TRANSMISSION
  • DUAL HST PEDALS
  • CAST IRON AXLES



ADDITIONAL FEATURES

  • REVERSE MOUNT ENGINE
  • 3 RANGE TRANSMISSION
  • POWER STEERING
  • SELECTABLE 4WD
  • DIFFIRENTIAL LOCK
  • 6 YEAR POWERTRAIN WARRANTY



PERFORMANCE MEETS STRENGTH
The 3026 carries unbeatable Sub-Compact and Compact performance for your farm, business or property. The longer frame size, larger tires and higher ground clearance can handle just about any workload you throw at it.

HARD WORK MADE EASY
The power is in your hands with the easy-to-read digital control display. Operate anything from the PTO to the front loader, right at your fingertips. Power steering makes the job even easier with effortless direction control.

YOU'RE IN THE DRIVER'S SEAT
Every Bad Boy features legendary comfort and quality. The premium seat reduces fatigue so you can keep pushing forward. The adjustable seat flips up and back for ideal rear backhoe operation.

CUT FROM THE SAME BAD BOY STEEL
The Bad Boy 3026 Tractor is built to deliver the same power, strength and quality Bad Boy is known for. It's the perfect size for any farm, ranch, property or outdoor business, delivering the best in both sub-compact and compact performance. This Bad Boy is all working dog, constructed with a longer frame, larger tires and higher ground clearance so it can handle jobs of any size. And it's made with Bad Boy steel, so there's no job too tough. Plus it features the same Hydro Max Transmission as its larger cousins, the 4035 and 4025 Tractors, giving you the power to automatically increase engine RPMs evenly with the push of a pedal. If you want value, the 3026 delivers, outperforming everything else in its class.  

BIG ON POWER
The Bad Boy 30 Series Tractor is the perfect mix of performance and strength. It's riding on a steel frame and cast iron axles, and driven by a powerful 25-horsepower engine. The hydraulics offer class-leading lifting power up to 1314 lbs., far more than other tractors this size.

In terms of pulling power, this Bad Boy features differential lock, automatically equalizing power to both rear wheels. If you need even more boost, use the selectable 4-wheel drive to engage the front wheels and maximize traction and pulling power. And we put all that power at your command with our easy-to-read digital control display. Now you operate anything from the PTO to the front loader, right at your fingertips. The 3026 gets the job done, with strength, convenience and lifting power, all in one compact package. 

GET EVEN MORE DONE 
Want the job done? Start with a Bad Boy 3026 Series Tractor. Thanks to our tough 3-point hitch and front loader quick attach and latch implements, getting any job done just got quicker and easier. All of our implements are manufactured with Bad Boy's industry-leading standards. Made from heavy-gauge, welded and fabricated steel, they're more than ready to pull their weight around your property. The Bad Boy line-up includes; Box Blades, Land Graders, Rotary Tillers, Disc Harrows, Forks and Hitches, Front Grapples, Grader Blades, Landscape Rakes and Rotary Brush Cutters. They're built for a lifetime of work around the field and farm.  

GUARANTEED POWERTRAIN WARRANTY
Because the 3026 Tractor is all Bad Boy, you get the quality craftsmanship and durability we’re famous for. We’re backing up that promise with a 6-year powertrain warranty, guaranteed. So you can work every day with the confidence that your tractor is covered. Sit back in the comfortable driver’s seat, let the power steering do the work, and enjoy the Bad Boy 3026 Tractor.



3026 Compact Tractor Specs & Compare

3026 Engine
Engine3 Cylinder, Water-Cooled, Diesel
Engine HP @ RPM25
Displacement (in.)71.7
Number Of Cylinders3
Fuel Tank (gal.)6
3026 Drivetrain
TransmissionHST
Number Of Speeds3 Range
ClutchDry Single Plate
BrakesWet, Multi-Disc
3026 Hydraulics
TypePower Assisted Hydro-Static
Total Hydraulic Flow (Power Steering + Implement)7.4 (3.1+4.3) / 28.1 (11.7+16.4)
3-Point HitchCat 1
Rear Remote ValveOptional (Up To 1)
3-Point Hitch \ Capacity @ 24" Behind Lift Point (lbs.)974
3026 Dimensions
Overall Length110"
Overall Width53.8"
Overall Height91.4"
Wheelbase65.7"
Minimum Ground Clearance16.4"
Weight2,106 lbs.
3026 PTO
TypeLive
Rear (Mid) PTO Speed540/960
PTO HP18
3026 Electrical
Battery12 V, 540 CCA
Alternator12 V, 50 A
3026 Wheels & Tires
IND (Front)25X8.50-14
IND (Rear)14X17.5
3026 Loader - Model BBL300
Standard Bucket Size (in.)
Maximum Lift Height (in.)
Dig Depth (in.)
Lift Capacity To Full Height At Pivot Pin (lbs.)1,314
Breakout Force (lbs.)1,960
Shipping Weight (lbs.)654
3026 Backhoe - Model BBH200
Standard Bucket Size (in.)12
TypeSubframe-Mounted, Quick Attach
Maximum Dig Depth (in.)76
Dig Force Bucket (lbs.)2,050
Shipping Weight (lbs.)827
