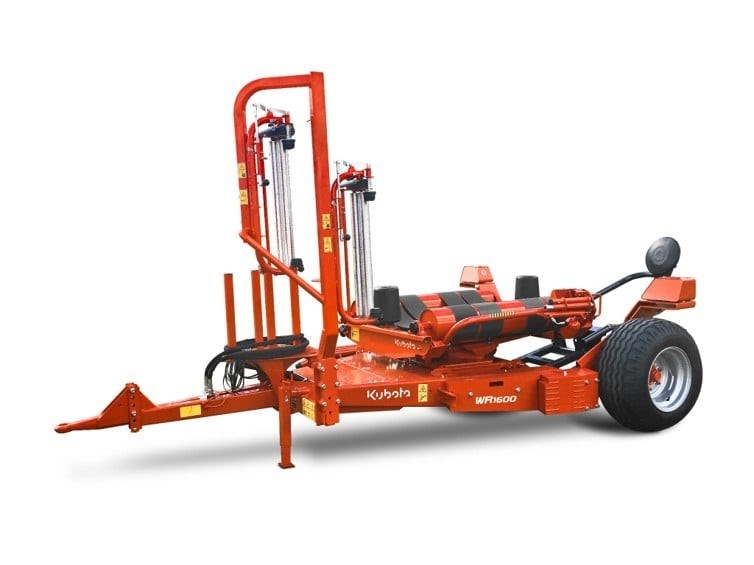

Kubota WR1600C
WR1600C
A low-profile, round bale wrapper that works smarter and harder, giving you the best quality silage and hay. You can control the WR1600C by computer or by joystick, helping you move efficiently throughout the day. With features like outstanding maneuverability and easy transportation, you’ll cover more ground than ever before with the power of the WR1600C!
WR1600C Features & Benefits
Easy To Operate
The Kubota WR1400 is a pull-type wrapper designed for smaller tractors. The machine is very easy to operate. A fully automatic film cutter comes standard on all models.
Turntable Principle
The turntable with two driven rollers is designed for high bale stability and smooth, even rotation. This ensures consistent bale rotation even in the most difficult of conditions.
Extendable Wheel Arm
To allow for increased stability during bale loading, an extendable wheel arm was incorporated into the frame design. This allows bales up to 2650 lbs. to be loaded without any counter weight on the machine.
Gentle Unloading
Wide spaced wheels allow for an exceptionally low turntable height. This design allows the table to be tilted downward until it nearly touches the ground, reducing drop height when unloading bales. This provides the gentlest possible handling of wrapped bales. It reduces the chance of film damage and eliminates the need for a fall damper or drop mat. Additionally, it can be fitted with a bale on end kit, which allows the bale to be tipped off gently without damage to the bale.
Narrow Transport Width
For narrow transport width, the right hand wheel is turned to the inside of the support arm.
High Speed Pack for 75% higher wrapping capacity
- Fastest and unique turntable wrapping technology in the market
- DuoWrap double pre-stretchers
60% increased wrapping capacity
- No driver action required, no extra steps/actions
- Time efficient and comfortable system
Double film application systems lift output to the next level
- DuoWrap device
Double pre-stretchers
- 66% overlapping = higher air resistance
- 60% increased wrapping capacity
- Single film wrap capability (gearbox)
WR1600C Specs & Compare
| Transport Length ft. | 14.17' | |
|---|---|---|
| Transport Width ft. | 8.25' | |
| Transport Height in. | 76" | |
| Weight lbs. (kg) | 2249 | |
| Max Bale Size (L x D) in. | 47" x 50" | |
| Max Bale Weight lbs. | 2650 | |
| Mounted Wrapper | Not Available | |
| Pull-Type Wrapper | Standard | |
| Support Rollers/Belts (number) | 2/4 | |
| Automatic Film Cutter | Standard | |
| Max. Wrapping Speed rpm. | 30 | |
| 1 Pre-Stretcher 750mm | Standard | |
| Pre-Stretcher 29.5" (750mm) | Standard | |
| Manual Cable Control (M) | Standard | |
| Electro Hydraulic Joystick (J) | Standard | |
| Programmable Computer (C) | Not Available | |
| Remote Control (C) | Not Available | |
| Oil Consumption (l/min) | 28 | |
| Wheels and Axles | 10.0/80-12 | Standard | |
| Fill Roll Magazine | Optional | |
| Adapter Kit for 20" (500mm) Film Spool | Optional | |
| Bale and Wrap Counter | Standard | |
| Auto-Stop at End of Wrapping Cycle | Standard | |
| Film End/Tear Sensor (C) | Not Available | |
| Road Lights | Optional |
