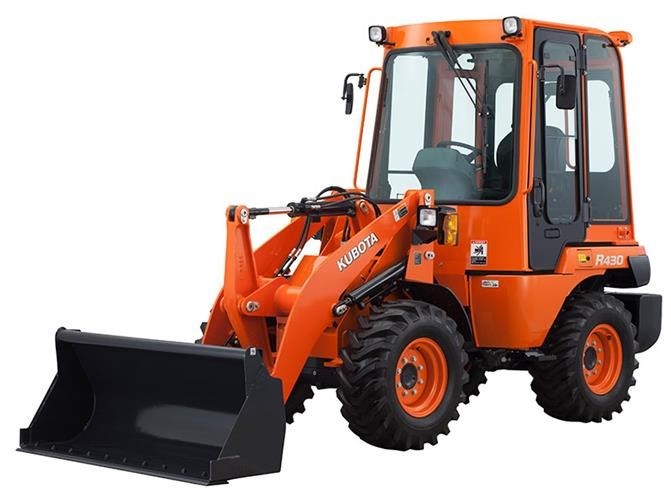

Kubota R430
R430
Compact design with impressive power allows the R430 to get the work done where larger loaders cannot fit. The R430 also delivers big on comfort in every season with an available enclosed cab featuring heat and A/C.
Shopping Tools
R430 Features & Benefits
Powerful Kubota Engine
The R430 boasts a gross rating of 47.6 HP (SAE J 1995) that provides the extra muscle needed for all of the chores that the loader is capable of performing.
Comfortable Work Station
Comfort and convenience are the keys to operator efficiency. The working station is mounted on rubber ISO mounts to minimize sounds and vibrations. Increase your comfort level in all seasons with an enclosed heated and A/C cooled cab.Load Sensing Transmission
As the travel and loading conditions change, the R430's transmission automatically shifts to compensate to provide maximum torque and speed for efficient ground speed operation. The manual switch can be operated with a convenient button located on the loader control level.Limited Slip Differential
Mud, sand, snow are no problem for the R430's front limited slip axle. If a front wheel slips, the power is transferred to the opposite wheel to restore traction.Hybrid Link Design
The well-balanced cylinder position of the Z link provides strong bucket break out forces and a lift path almost parallel to the ground for superior reach and lift.Rear Backhoe
The R430 takes versatility to a new level in compact wheel loaders with an optional backhoe attachment. The RBK4009SA backhoe allows the operator to dig a trench up to seven feet deep and 24 inches wide.R430 Specs & Compare
Specifications
| Engine | D1830-CR-TIE4-WL5 | |
|---|---|---|
| Emission Certification | Tier 4 | |
| Output (SAE J1995 gross) HP/(kW)/rpm | 47.6 (35.5) / 2600 | |
| Output (SAE J1349 net) HP/(kW)/rpm | 44.5 (33.2) / 2600 | |
| Displacement (cu. in.) | 11 | |
| Transmission Type | Hydrostatic transmission | |
| Overall Length, ft (mm) | 14' 4" (4355) | |
| Overall Height, ft (mm) | 8' 3" (2515) | |
| Overall Width, ft (mm) | 4' 12" (1520) | |
| Ground Clearance, in (mm) | 11" (280) | |
| Auxiliary Hydraulics Flow Rate, GPM (LPM) | 11.1 (42.1) | |
| Auxiliary Hydraulic Pressure psi, kgf (cm2) | 2697 (18.6) | |
| Standard Tire Size, in | 12.5/70-16-8PR | |
| Traveling Speed: High, mph (kph) | 12.4 (20.0) | |
| Traveling Speed: Low, mph (kph) | 3.0 (4.8) | |
| Traction Force, lbs (kgf) | 5485 (24.4) | |
| Front/Rear Axle Traction Lock | Limited slip differential | |
| Articulation Angle (deg.) | 40 (each direction) | |
| Angle of Rear Frame Oscillation (deg.) | ±8 | |
| Loader Clearance Circle, ft (mm) | Loader Clearance Circle, ft (mm) 12' 1" (3695) | |
| Turning Radius Track Circle, ft (mm) | 10' 1" (3085) | |
| Brakes (Service) | Enclosed wet disc | |
| Tipping Load - Straight, lbs (kg) | 5335 (2420)/5743 (2605) / 3494 (1585)/3770 (1710) | |
| Tipping Load- Full Turn, lbs (kg) | 4596 (2085)/4949 (2245) / 3009 (1365)/3251 (1475) | |
| Rated Operating Capacity, (ROC) | 2298/2474/504/1625 | |
| Standard Bucket Capacity, yd3 | 0.5 | |
| Bucket Breakout Force, lbs (kN) | 5215 (23.2) | |
| Lifting Capacity at Ground Level, lbs (kN) | 3687 (16.4) | |
| Loader Raise / Lower Time, sec | 4.4 / 3.3 | |
| Fuel Tank, gal (l) | 14.3 (54) | |
| Hydraulic System, gal (l) | 15.3 (58) | |
| Hydraulic Reservoir, gal (l) | 11.1 (42) | |
| Operating Weight, lbs (kg) | 7758 (3519) / 8232 (3734) | |
| Hinge Pin Height, ft | 9ft2in | |
| Dump Height at Fully Raised Position, ft | 7ft2in | |
| Maximum Dump Angle | 44 degrees | |
| Reach Fully Raised at Maximum Dump Angle, ft | 2ft9in | |
| Steering Angle | 40 degrees | |
| Frame Oscillation Angle | 8 degree |
