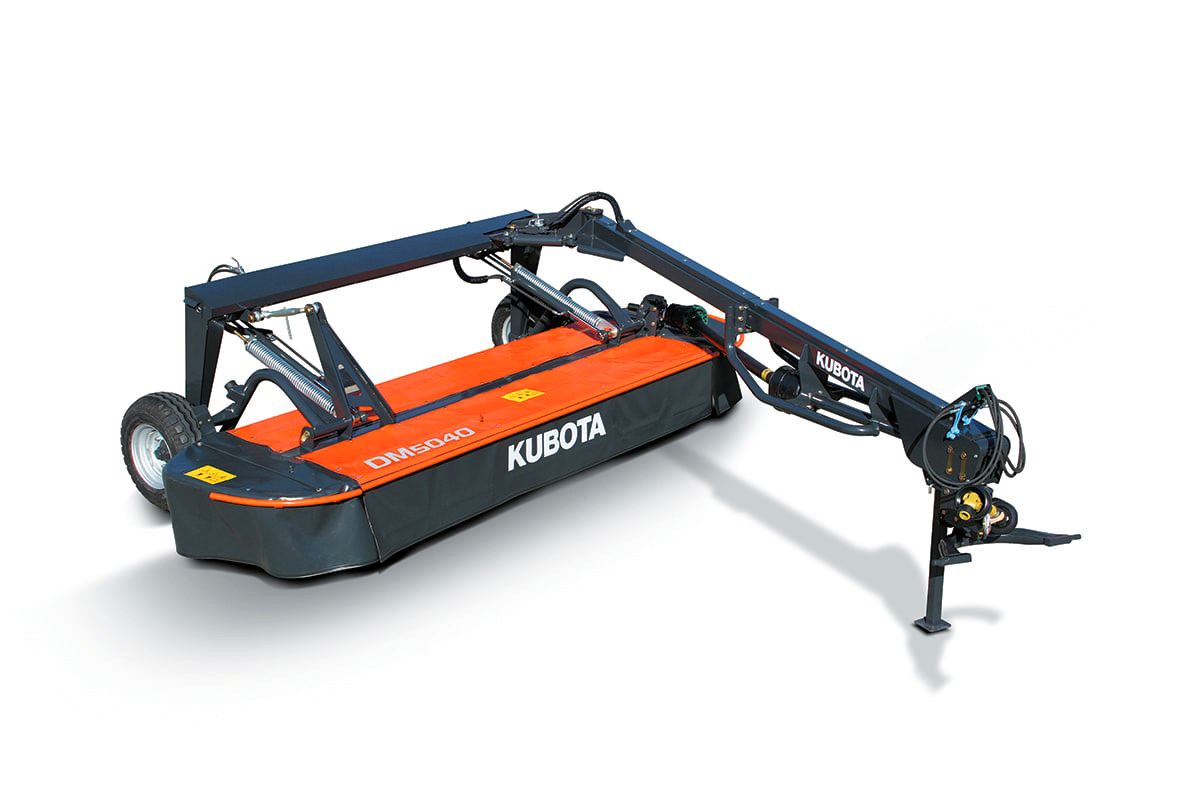

Kubota DM5040
DM5040
The Kubota DM5040 doesn’t just bring you trouble free mowing and outstanding cut quality, the disc mower takes it even further with its secure and convenient transportation system. The DM5040 can quickly go from a 13’1” working width to 12’6” for transporting by folding in the side guards. Designed for maximum durability, this mower has active suspension to make mowing through rough conditions possible. Improved grass flow and easier operation on crops provides you with the results you’ve been searching for.
DM5040 Features & Benefits
Active Suspension
The Kubota DM5032, DM5040, and DM5028 have an exceptional ability to adapt to field conditions. The active suspension ensures even pressure across the entire cutterbar while in rough conditions. With 13.8" of upward suspension and 9.3" of downward adaption, these machines ensure that the cutting discs are always positioned close to the ground, ensuring outstanding cutting quality and trouble-free mowing.
The DM5000 Series floatation system protects the complete machine from possible shock loads. When an obstacle is encountered the cutterbar will pivot upward and over the obstacle and then automatically return once the obstacle has been passed.
Lateral Flotation
DM5000 series machines provide for 17 degrees of sideward adaption. This generates many benefits while working on hillsides or when aligning the unit on headlands.
Drawbar Swivel Hitch Gearbox
The drawbar swivel hitch gearbox is fixed to the mainframe in order to minimize movement during operation, yet it provides unlimited rotational movement between the machine and the tractor making it easier to perform sharp turns.
Counter
Rotating Three-Bladed Discs
With three blades per disc, Kubota mowers are constantly cutting. This means a third less load per blade, an even load on the drive and smoother power usage – which produces an even, cleanly cut stubble. Each steel blade is precisely angled to immediately discharge the cut crop upwards by both air flow and mechanical action.
Fully Welded Cutterbar
The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.
Express Quick Change of Knives
Mowers can be fitted with the 'Express' system for quick and easy changing of knives. Simply place the lever around the bolt, release the spring by turning the lever and the knife is ready to be replaced with a new one.
Narrow Transport
DM5000 series offers a secure and convenient transport solution while still providing excellent road visibility. To make transportation width as narrow as possible, the side guards can be folded upwards. This reduces the transport width for DM5032 and DM5028 to only 9'10" while in the field it cuts a full 10'6". The transport width for DM5040 is reduced to 12'5" while in field it cuts 13'1".
Working Widths
- DM5032 / DM5028 – 10’6”
- DM5040 – 13’1”
DM5040 Specs & Compare
| Cutting Width ft. (m) | 13' 1" | |
|---|---|---|
| Weight lbs. (kg) | 2778 | |
| Transport Width ft. (m) | 12' 5" | |
| Hitch (CAT) | 2 | |
| Pin Hitch | Standard | |
| PTO RPM | 540 | |
| Minimum PTO Horsepower Required HP/KW | 85 | |
| Number of Disc and Knives | 10/30 | |
| Remotes | 2 | |
| Cutterbar Operating Angle | ±17 | |
| Stubble Height in. (mm) | 0.75"-4.0" (19-102) | |
| BreakAway | Not Available | |
| Non-Stop BreakAway | Not Available | |
| Overrun Clutch | Standard | |
| Swath Board (RH/LH) | Not Available | |
| Swath Rollers (RH/LH) | Optional | |
| High Skids +20/+40/+80 mm | Standard / Optional / Optional | |
| Lighting Kit | Standard |
