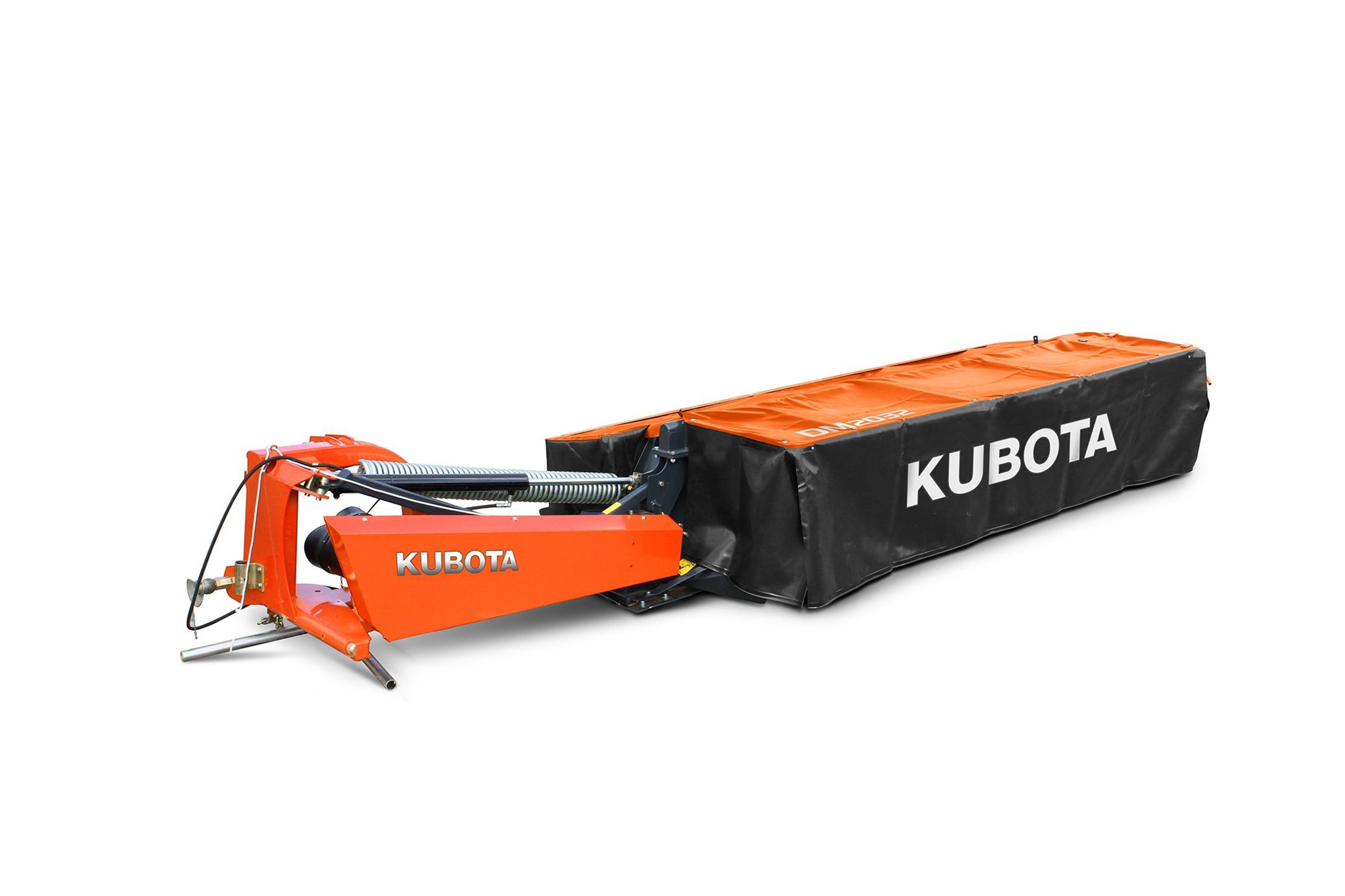

Kubota DM2032
DM2032
DM2032 Features & Benefits
Flexible Suspension
Offering a flexible suspension, the DM2000 series is exceptionally well suited for work on slopes and in hilly conditions.
Fully Welded Cutterbar
The fully welded Kubota cutterbar with overlapping C-channels makes for a stiff and strong design, ensuring a high level of durability. The cutterbar’s design, with machined gears and large bearings along with low oil requirements, allows for a low working temperature for efficient oil cooling and lubrication of the entire cutterbar.
Non-Stop Breakaway
When you hit an obstacle, the non-stop breakaway system will be activated and swing the machine backwards and over the obstacle and then return it to the original working position. No need to stop – no time lost.
Fast Lift on Headlands
The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
Vertical Transport Position
When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
Counter-Rotating Three-Bladed Discs
With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
DM2032 Specs & Compare
| Cutting Width ft. (m) | 10' 6" (3.2) | |
|---|---|---|
| Weight lbs. (kg) | 1510 (685) | |
| Transport Width ft. (m) | 4' 7" (1.4) | |
| Hitch (CAT) | 2 | |
| Pin Hitch | Not Available | |
| PTO RPM | 540 | |
| Minimum PTO Horsepower Required HP/KW | 55/40 | |
| Number of Disc and Knives | 8 / 24 | |
| Remotes | 1 | |
| Cutterbar Operating Angle | -35/+35 | |
| Stubble Height in. (mm) | 0.75"-4.0" (19-102) | |
| BreakAway | Not Available | |
| Non-Stop BreakAway | Standard | |
| Overrun Clutch | Standard | |
| Swath Board (RH/LH) | Standard/Optional | |
| Swath Rollers (RH/LH) | Optional/Not Available | |
| High Skids +20/+40/+80 mm | 20 Standard, 40 & 80 Optional | |
| Lighting Kit | Optional |
