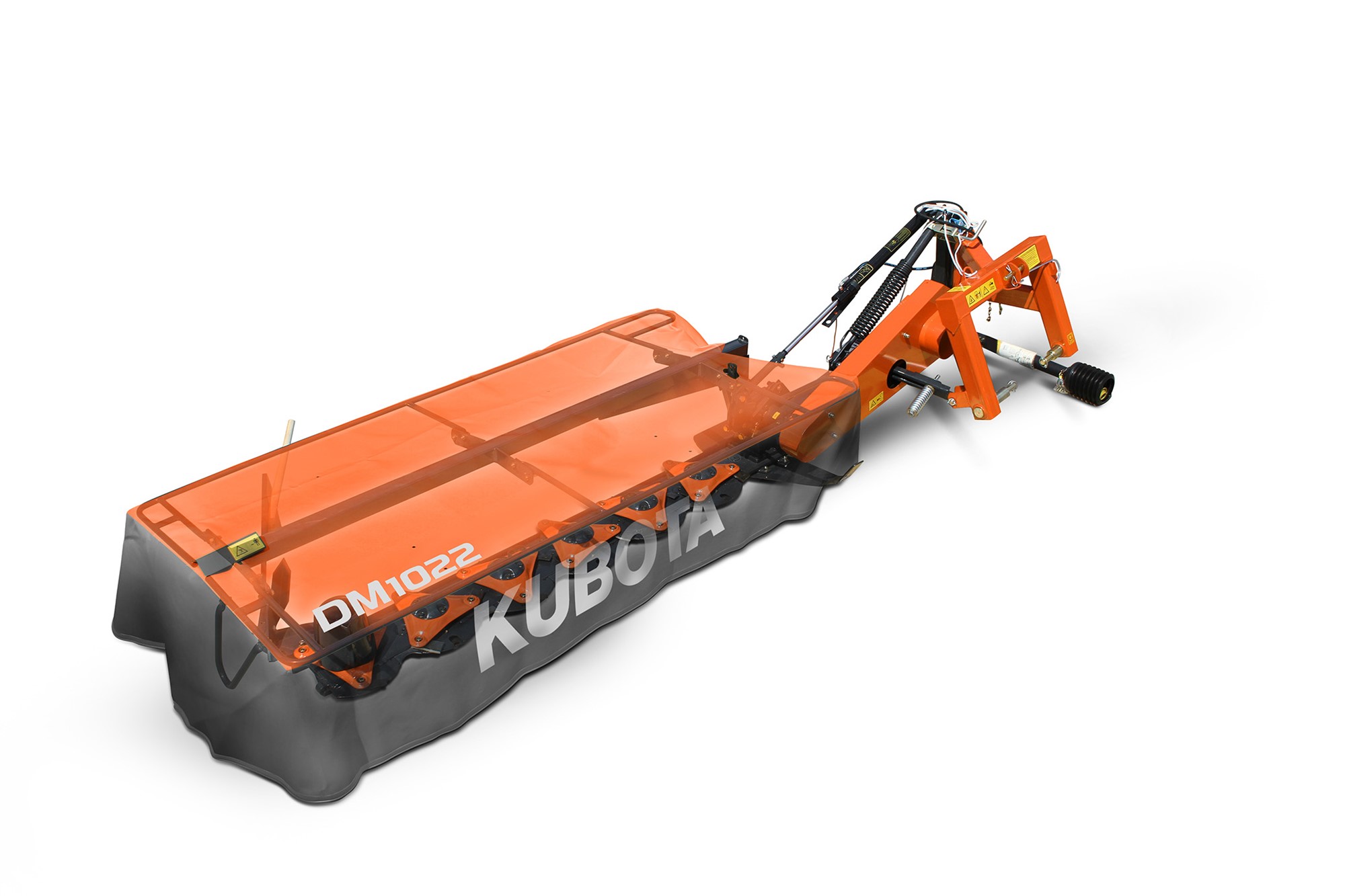

Kubota DM1022
DM1022
DM1022 Features & Benefits
Available Working Widths
- DM1017 – 5’6”
- DM1022 – 7’2”
- DM1024 – 7’9”
Spring Loaded Breakaway
When an obstacle is encountered, the DM1000 series swings backwards to protect the cutterbar; by reversing, the mower is reset into working position.
Fast Lift on Headlands
The mower is easily lifted via a hydraulic cylinder without activating the tractor’s 3-point linkage. This causes less wear on the tractor and the machine, as the PTO stays in the same position, minimizing vibrations in the transmission.
Vertical Transport Position
When in transport, the mowers are folded to a vertical position well behind the tractor. The center of gravity is close to the tractor, which ensures excellent weight distribution and transport stability.
Counter-Rotating Three-Bladed Discs
With three blades per disc Kubota mowers are constantly cutting. This means a third less load per blade; an even load on the drive; smoother power usage; and produces an even, cleanly cut stubble.
DM1022 Specs & Compare
| Cutting Width ft. (m) | 7'2" (2.2) | |
|---|---|---|
| Weight lbs. (kg) | 1058 (480) w/ PTO shaft | |
| Transport Width ft. (m) | 3' 9" (1.2) | |
| Hitch (CAT) | 2 | |
| Pin Hitch | Not Available | |
| PTO RPM | 540 | |
| Minimum PTO Horsepower Required HP/KW | 42/31 | |
| Number of Disc and Knives | 6/18 | |
| Remotes | 1 | |
| Cutterbar Operating Angle | -45/+45 | |
| Stubble Height in. (mm) | 0.75“ - 2“ (19-51) | |
| BreakAway | Standard | |
| Non-Stop BreakAway | N/A | |
| Overrun Clutch | Standard | |
| Swath Board (RH/LH) | Standard/Optional | |
| Swath Rollers (RH/LH) | Optional (RH) | |
| High Skids +20/+40/+80 mm | 20 Standard, 40 & 80 Optional | |
| Lighting Kit | Optional |
