Features
- Large 16" diameter baskets constructed with 10 high-carbon steel 3/8" thick blades
- Full-length 2-3/8" steel center shaft for optimum durability
- Vertical reinforcing disks spaced every 12" for added strength
- Reinforced roller endplates are formed to extend life and reduce wrapping of tough residues
- Reversible baskets for either aggressive mixing action or for packing effect
- Superior clearance between the roller and frame assures uninterrupted operation
- Adjustable tongue length for added turning clearance
- Dual transport wheels with 7.60 x 15 tires are positioned ahead of the roller for eliminating tracks and providing enhanced stability
- Trussed-frame design for added rigidity
- Optional leveling bar in front of the rollers provides added smoothing and a more even surface for the most effective tillage action possible
- The leveling bar features a tool-free spring pressure adjustment for fine-tuning aggressiveness
- Leveling bar can be pinned up for high-residue situations and available with choice of:
- Diagonal round tooth with heat-treated 3/4" x 11" teeth
- Spike-tooth with forged 3/4" x 11" diamond-shaped teeth
- Coil-tine with 3/8" x 17" long spring tine
- Hoses are routed through the frame and include end caps for maximum life
- Powder-coated finish in choice of tractor-matching green or red
- On 24' - 36' units, single hydraulics with a split function valve is standard and on 38' - 50' units, dual hydraulics are standard
- Available in sizes from 12' to 50'
- Available wing lift-assist packages with 9.5x15, 8-ply tires provide added stability when turning unit at ends of field
- Standard light package for safer transport

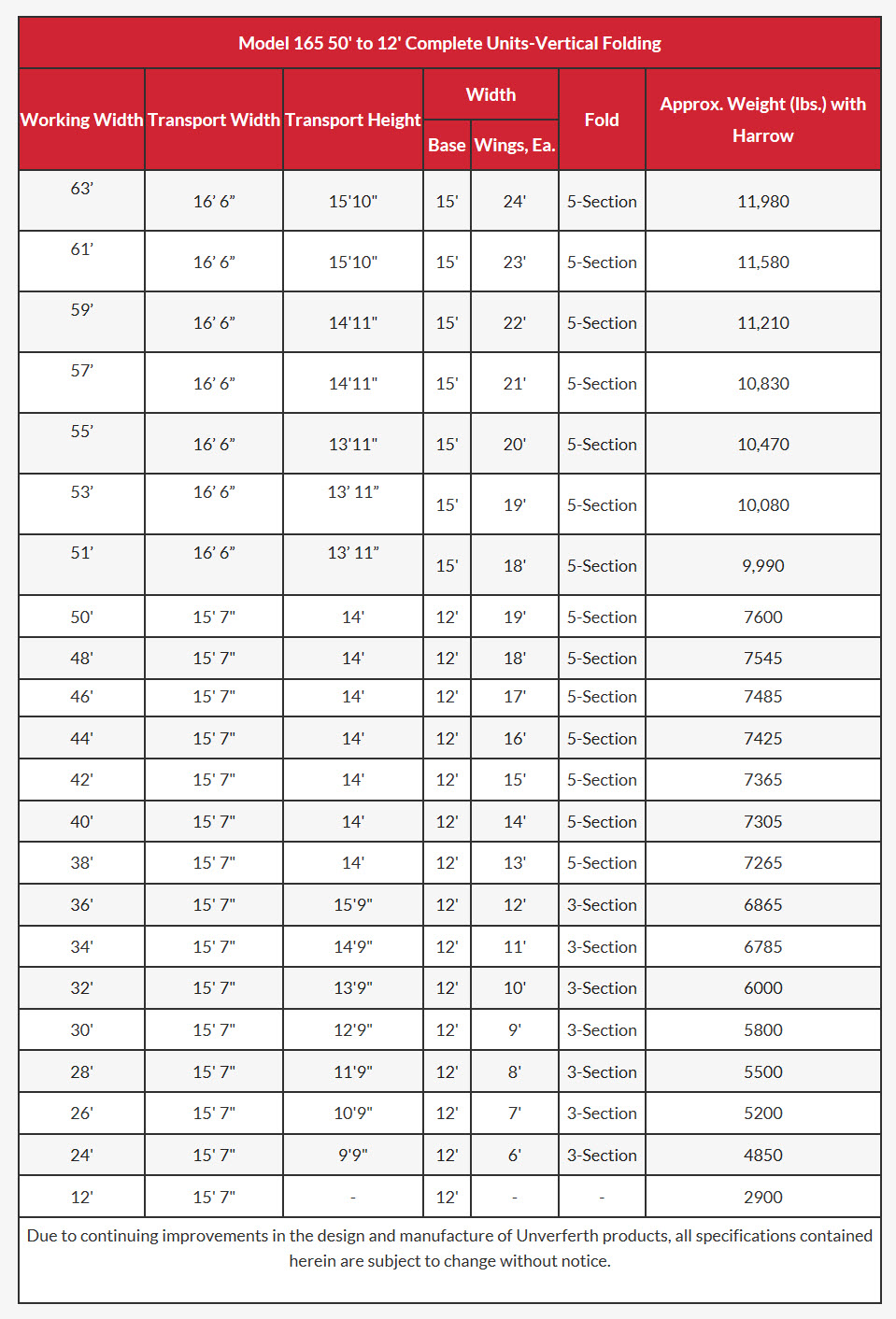

Specs
| Condition | New |
