Features
- Clean, modernized deck design for easy cleaning and maintenance
- CV drivelines on all pull-type units
- CAT 2 & 3 hitch compatible
- Slip clutch driveline protection
- EZ cutting boxes
Specs

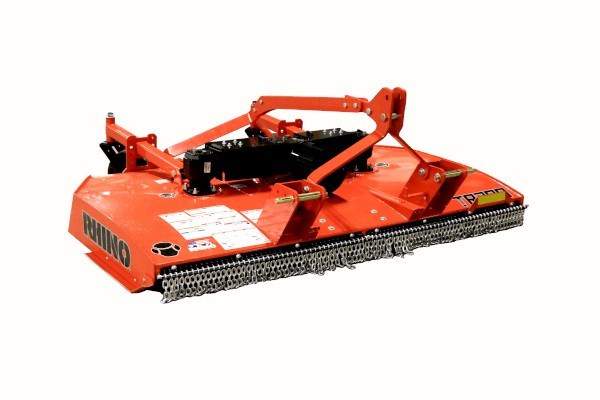

| Model | TR210 |
| Cutting Width | 10' (120") |
| Overall Width | 127 1/4" |
| Overall Length | 106 1/2" (Lift) |
| 149 1/2 (Pull) | |
| Cutting Height | 1" - 15" |
| Height Adjustment | 2.5'' x 8'' Cylinder - Pull |
| Jack Stand | Std. - Pull |
| Hitch | CAT 2/ CAT 3 Std. |
| CAT 2/ CAT 3 Q.H., | |
| Pull | |
| Blade Carrier | Infinity - Cast |
| Blades | 1/2'' x 3'' Parallel Updraft |
| Blade OverLap | 4" |
| HP Required | 60 HP - Lift |
| 45 HP - Pull | |
| Gearbox Rating* - Center | 100 HP |
| Gearbox Rating* - Outboard | 130 HP |
| Gearbox Oil (85W-140) | Factory Filled |
| Output Shaft Diameter | 2" |
| Blade Tip Speed - 540 RPM | 16,969 FPM |
| Blade Tip Speed - 1000 RPM | 16,694 FPM |
| Cutting Capacity (Max) | 2'' |
| Driveline Size | CAT 4 - Lift Main |
| CAT 4 - Pull Main | |
| Driveline Protection | Slip Clutch |
| Deck Thickness | 12 Ga |
| Side Skirt | 7 Ga |
| Tires & Wheels |
Laminated Tires 4"x 8" (Lift) |
| Safety Tow Chain | Std. (Pull) |
| Safety Deflector | Single or Double Chain Guards |
| Tongue Weight | 1,120 lbs |
| Weight | 2,170 lbs (Lift), 5,590 lbs (Pull) |
| * Gearbox power ratings based on actual field performance |
