Features
| FEATURES | BENEFITS |
| 2 Cutting widths | 72" and 84" |
| Gearbox HP rating | 15 - 60 HP |
| Rear discharge | The wide, even dispersal of grass leaves a fine thin layer directly behind the mower, vs. a possible windrow to the side. Keeps grass from blowing in unwanted areas. Easier to mow around objects. |
| Deflectors | Built-in to throw material and debris down. |
| Clevis type lower hitch points | Allows for easy hook-up by being able to remove pins and back into clevises. |
| Floating 3-point | Top and bottom hitch points float up and down which allows the mower to float over uneven terrain. |
| 5/16" Rolled front on deck | 5/16" roll formed front deck edging designed to take heavy abuse. |
| Frame-over-deck design | Frames takes stress out of deck by supporting it. |
| 3/16" Deck thickness | Heavy deck material to aid in overall strength and longevity. Reinforced spindle mounts. |
| Lower hitch points adjust in and out | Accommodates many tractor configurations by adjusting in and out. |
| FDR2572 Only - Solid rubber tires with roller bearings | Solid rubber tires on the FDR2572 are sandwiched between the rim halves, bolted in and can't go flat. Roller bearings allow for a long life. |
| FDR2584 Only - Semi solid tires with roller bearings | Semi solid tires on the FDR2584 offer premium flotation. Roller bearings allow for a long life. Semi solid tires offer shock absorption. |
| Heavy-duty Gauge wheel arms | 1/4" Gauge wheel arms increases strength. |
| Non-aligned gauge wheels | Rear wheels don't track behind the front wheels to reduce laying grass over. |
| High blade tip speed | 72" = 18,130 fpm For cleaner cutting and better dispersion of clippings. 84" = 17,210 fpm |
| Choices of blades | Low, medium, high-lift, or mulching blades are available to match customer needs and specific applications. |
| Blade overlap | Blade overlap of 1 1/4" assures no skipping in tight turns. |
| 1 3/8" Machined blade spindle with ball bearings and cast iron housing | Machined spindle for balanced performance and accuracy, ball bearings for smooth and quiet running, cast iron housing for added protection and durability. |
| Top greasing spindles | Assures top bearing gets grease. No shields to remove. |
| Single B-section Kevlar belt | Simple one belt design. Kevlar material adds additional strength. |
| Vacuum formed ABS belt guards | No scratching, no rattling. |
| Spring loaded adjustable idler | Allows for constant and proper tension on belt. Better than adjusting gearbox for belt tension. |
| Blade bar | Bar gives additional support to blade. (Not available on FDR2572) |
| Top Hitch | Top hitch has two hook-up points which allows greater lifting leverage for smaller tractors. |
| Driveline hanger | For ease in hookup and storage of driveline. Keeps driveline off ground. |
| Quick Hitch Compatible | Compatible with Land Pride Quick Hitch for easy attachment and removal increases productivity. |
Specs

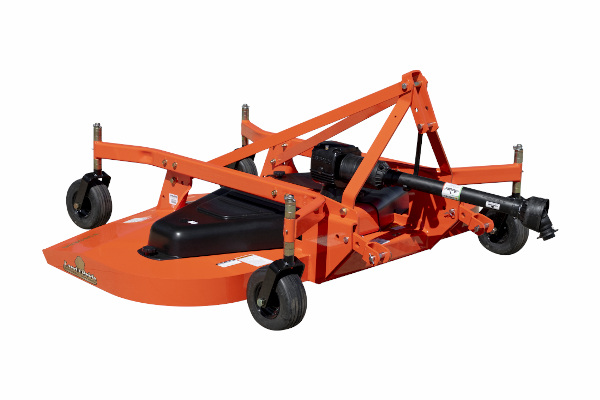

| Model Numbers | FDR2584 |
| Maximum Horsepower - Engine | 60 horsepower |
| Cutting Width 72" 84" | 84" |
| Overall Width | 87" |
| Height | Minimum: 35 1/2" / Maximum: 41" |
| Length | 75" |
| Weight | 812# |
| Cutting Height (1/2" increments) | 3/4" - 5 1/4" |
| Deck Material Thickness | 3/16" |
| Blade Tip Speed | 17,210 FPM |
| Blades Construction - 3 each | 5/16" x 2 1/2" x 29" Heat Treated Alloy Steel |
| Blade Options | Standard Blades: Medium Lift Optional Blades: Low Lift, High Lift & Mulching |
| Blade Overlap | 1 1/4" |
| Blade Spindles | Greasable |
| Discharge | Rear |
| Hitch | Category 1 |
| Lower Hitch | Floating & Adjustable Clevis with Plated Pins |
| Top Link | Floating & Adjustable Clevis |
| Castered Gauge Wheels | 4" x 11" Semi Solid |
| Caster Wheel Spindle | 1" Diameter with Greasable Bushing |
| Drive Train | 540 rpm power take-off Cast Iron Housing Gearbox With Beveled Gears, 1:2.83 Ratio Spring Loaded Single V-Belt |
| Gearbox Oil Capacity & Type | 3.5 Pints of 80-90W EP Gear Lube |
| Driveline | Heavy-duty w/ quick coupler |
| Front Roller | Optional |
| Quick Hitch Compatible | Fits Land Pride Quick Hitch |
