Features
Non-Stop Hydraulic (NSH) Reset
When a field obstacle is met, a rapid breakaway of the plow leg occurs. Once the obstacle is passed there is an increase in pressure, bringing the bottom quickly and firmly back into working position. The system also acts as a shock absorber in rocky ground, increasing plow life.
Headstock and Frame
For added reliability, the structure is made using a large, machine-welded frame measuring approximately 7” x 7”.
Triplex Steel
Moldboards are made of unequal layer, heat-treated Triplex steel that have an increased working life up to 40% over standard steel and a hard wearing surface over 1/8” thick.
H4 Moldboard
The H4, helicoidal, Scandinavian-type moldboard provides well-formed plowing to a normal depth range of 7-12”. The share is fitted with a reversible/replaceable point that greatly increases the life of the share. Recommended for fall plowing, the H4 moldboard is especially suited for heavy and damp clays. Furrow passes are well defined and trash burial is excellent.
N Moldboard
The helico-cylindrical N moldboard plows to a depth of 14”. Designed to be highly versatile, it is cylindrical at front, helicoidal at rear. A low draft ensures a partly broken furrow with excellent trash burial. Recommended for spring plowing, this moldboard is versatile and works well in sandy or clay soils.
VP Slatted Moldboard
VP Slatted Moldboard: The VP slatted moldboard composed of independent and interchangeable slats. Reduces pulling power, due to a lower moldboard surface area. Designed for use in extremely sticky muck and clay soils. Not for use in sand or loam soils or in soils with rocks or stones. The multiple slats allow individual replacement from wear.
On-Land Offset
On-land offset is available to enhance productivity. The soil sometimes requires wide or dual tires that cannot be used for in-furrow plowing. If the tractor is setup for other applications that require duals or wide tires, if equipped with the on-land kit it is no longer necessary to dismount the wheels in order to use the tractor for plowing.
Hydraulic Valves
Hydraulic sequencing comes standard meaning fewer valves to operate during headland turns. Ease of use is always important when handling large machinery. With this system, there are fewer hydraulic valves to operate on headlands. Hydraulic sequencing also allows for automatic folding of the offset when the plow is being lifted.
Skimmer
Each skimmer is independent of another and firmly held in a sheath-like support. The skimmers are shear bolt protected and are adjustable in three directions.
- Forward and backward-with a choice of three positions, the sheath bolts to the leg support via countersunk holes to avoid any risk of free play.
- Up and down-rapid and precise height adjustments (8” of adjustment) with countersunk holes in the skimmer leg for easy locking of the leg for the desired height.
- Side to side-for correct adjustment in relation to the disc coulter (where fitted).
Specs

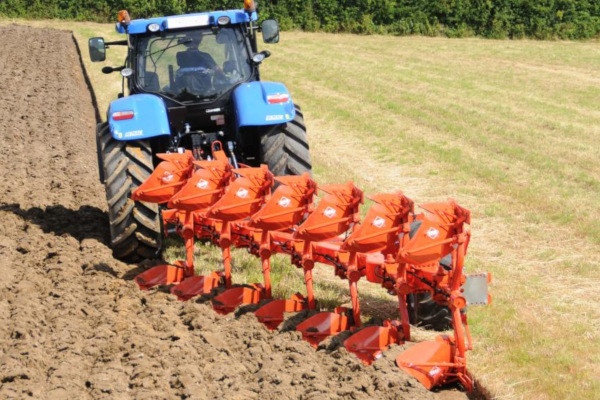

| Model | VARI-LEADER 8 |
| Number of Bottoms per side | 8 |
| Extendable by one bottom | No |
| Standard moldboards | L : Wide helicoidal |
| Hydraulic rollover with 2 cylinders | Standard |
| Minimum allowable power | 180 hp (132 kW) |
| Maximum tractor power | 360 hp (268 kW) |
| Approximate machine weight for NSH version | 10,273 lbs (4,660 kg) |
| Working Width | 14' - 22" (35 - 56 cm) hydraulically adjustable |
| Underbeam clearance | 31.5' (80cm) |
| Point to point clearance | 40' (102c m) |
| On-land hitch kit | Standard |
| Tires | 500/45-22.5 |
| Sequencing valve - combines lift and rollover functions | Standard |
| Hitch | Cat. 3 with cross-shaft |
| Beam dimensions | 7.1" x 7.1' (180 x 180 mm) |
| Offset and angling adjustment | Hydraulic |
| Side transport and depth wheel | Standard |
| Product specifications are based on published information at the time of publication. Product specifications are subject to change without further notice. Contact your local KUHN Dealer for more information. |
