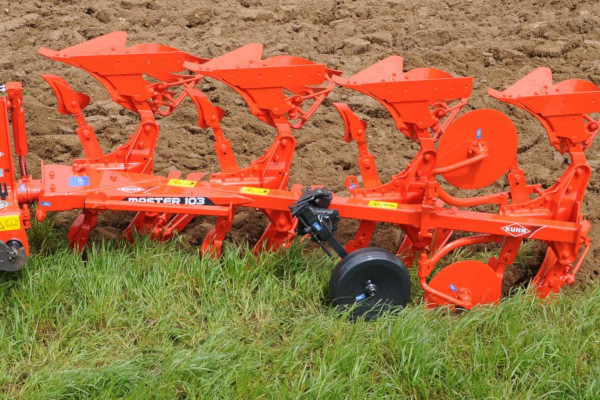

Features
Heavy-Duty Components to Ensure a Long Machine Life
Monobloc Headstock
Simple adjustment of leveling by stops. Easy storage with built-in toolbox in head-stock on 3- and 4-bottom NSH models.
High Strength Frame
Simplified adaptation to tractor wheel setting. Mechanical adjustment of plow angling (front furrow width).
Triplex Steel
Moldboards are made of unequal layer, heat-treated Triplex steel that have an increased working life up to 40% over standard steel and a hard wearing surface over 1/8” thick.
Standard Rubber Depth Wheel
Specs
| Model | MASTER 103 3 (2E+1) |
| Number of bottoms per side | 3 |
| Extendable by one bottom | No |
| Standard moldboards | H4 long helicoidal |
| Hydraulic rollover with 1 cylinder | Standard |
| Maximum tractor power | 90 hp (66 kW) |
| Approximate machine weight for T version | 1,631 lbs (740 kg) |
| Approximate machine weight for NSH version | 1,973 lbs (895 kg) |
| Working width | 14" or 16" (35 or 40 cm) delivered at 16" (40 cm) |
| Underbeam clearance | 27.5" (70 cm) |
| Point to point clearance | 35" (90 cm) |
| Offset and angling adjustment | Mechanical |
| Hitch | Cat. 2 swift hitch |
| Main beam dimension | 3.9" x 3.9" (100 x 100mm) |
| Extension beam dimension | 3.9" x 3.9" (100 x 100mm) |
| Required tractor hydraulic connections | 1 DA for rollover |
| Adjustable depth wheel with tire | 600 x 120 mm standard |
