Features
- Best-Value per Linear Foot of Machine Width for a (2) Head Continuous Merger

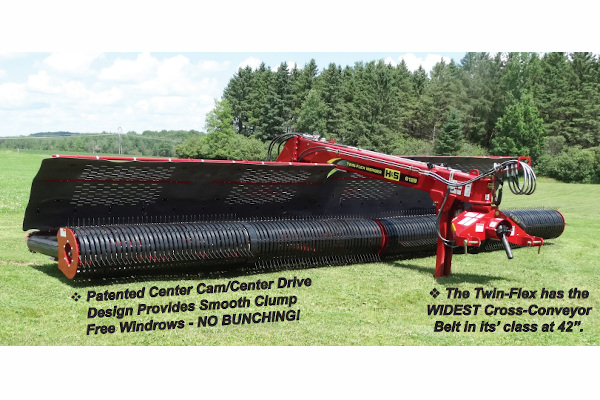

28’ of Continuous Merging with (2) 14’ Independent Heads - Patented Center Cam/Center Drive Design Provides Smooth Clump Free Windrows – NO BUNCHING!
- WIDEST Cross-Conveyor Belt in its’ class at 42″
- The ability (with up to 16’ windrow cuts) to merge (5) Windrows into one….in either direction. No additional Cross-Conveyor Extension is needed
- Self-Contained Hydraulic System features a 35 gallon reservoir coupled with large displacement motors for the Heads and Cross Conveyor, is able to handle “HEAVY” Crops
- Rubber Mounted Teeth
- Highest Torque Rated Hydraulic Motors in the Industry, coupled with Heavy 2-Ply Cross-Conveyor Belts
- Cross-Conveyor Belts feature a High Torque Drive System….Best in the Industry!
- Both Models have the ability to merge Left, merge Right, or Split Direction
- Requires no Sensors to run the Machine. Very simple to operate
- Narrowest Transport Width & Lowest Height
- The TF6128 Features Heavy Duty Radial Tires that don’t scuff in the Field (optional on the TF5128)
Specs
| Model | TF6128 |
| Working Width | 28'2" |
| Transport Width | 8' 6" |
| Transport Length | 25' |
| Transport Height | 9'8" |
| Pick-Up Heads | 2 - 14' |
| Head Travel | 20" |
| Pick-up Strippers | Poly |
| Pick-up Teeth | Rubber Mounted |
| Cross- Conveyor Belt Width | 42″ |
| Cross-Conveyor On/Off/Right/Left/Split | In-Cab Electric-over-Hydraulic |
| Skid Shoe Height | Manual Adjust |
| Head Suspension | Manual Pressure Adjust |
| Drive System | 3-Section High Volume Pump |
| PTO | 1-3/8" or 1-3/4" 1000 RPM |
| Oil Reservoir Capacity | 35 Gallon |
| Tire Size | 15R x 19.5 |
| Tractor Size | 95 HP Minimum |
| Hydraulic Requirements - Standard Unit | 2 Sets of Remotes (Requires Closed Center Hydraulic System) 2750 PSI & 12 GPM Minimum |
| Weight | 12,260 Lbs. |
