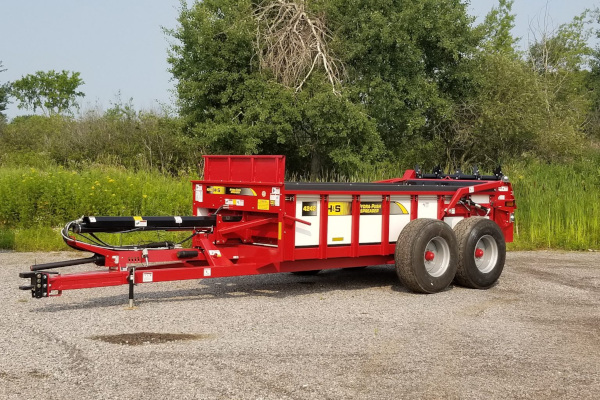

Features
- Horizontal beaters.
- All Hydraulic Push models use solid virgin grade poly with UV inhibitor, for the floor and sides allowing less friction.
- The hydraulic endgate has 2 cylinders with ⅜″ hose and pipe for faster operation in cold weather.
- A top beater is standard equipment.
- Heavy duty rectangular tubing is used for the pole to ensure strength and long life. Structural channel floor supports spaced 9 ½″ apart are used for maximum floor support.
- The HP’s PTO beater drive system is driven by the unique center drive system that consists of a straight shaft off the PTO underneath the manure spreader to an angle gearbox in the rear, and over to the beater drive sprocket.
- #80 chains are used for strength and long life and easy open shields makes lubrication easy.
- The Hydraulic Push-Off System on all models features two hydraulic cylinders that sequence to reduce push-off forces for fast unloading of material.
- Beater blades are replaceable and the beater assembly is removable for stockpiling manure.
- Removal of the beater assembly is done by simply removing the mounting bolts and a drive chain.
Specs
| HPH4142 | |
|---|---|
| CAPACITY – OLD RATING | 425 Bushel |
| CAPACITY CU. FT, STRUCK LEVEL | 270 |
| SIDE LOADING HEIGHT | 61 ¼″ |
| 2ND OR VERTICAL BEATER HEIGHT | 74 ¾″ |
| HEIGHT-TOP OF HYD. END GATE (W/O HOOK) | 65″ |
| HEIGHT-TOP OF SCREEN (VERT. BEATER ONLY) | N/A |
| INSIDE WIDTH | 72″ |
| INSIDE LENGTH | 16′ |
| INSIDE DEPTH | 34″ |
| OVERALL WIDTH W/TIRES | 10′ 2″ |
| OVERALL LENGTH | 26′ 5″ |
| STANDARD NUMBER OF BEATERS | 2 |
| HORIZONTAL BEATER DIAMETER/LOWER | 29″ |
| HORIZONTAL BEATER DIAMETER/UPPER | 20″ |
| VERTICAL BEATER DIAMETER | N/A |
| REPLACEABLE BEATER PADDLES | YES |
| REMOVEABLE BEATER ASSEMBLY | YES |
| HYDRAULIC PUSH CYLINDER DIAMETER | 3 ½″ |
| HYDRAULIC PUSH CYLINDER HOSE DIAMETER | ⅜″ |
| HUB | 8 Bolt |
| SPINDLE SIZE | 3″ |
| TIRE SIZE – STANDARD | 425 x 22.5 |
| TIRE SIZE – OPTIONAL | 19L x 16.1 10 Ply |
| HYDRAULIC END GATE | Standard |
| CYLINDERS ON HYDRAULIC END GATE | 2 W-⅜″ Hose |
| REAR PAN | Optional |
| JACK | Standard |
| WOOD SIDE RAILS | Standard |
| WEIGHT W/TIRES | 7,000# |
| PTO CHOICES | |
| 540 RPM PTO w/ OVER RUNNING TORQUE LIMITING CLUTCH |
YES |
| 1,000 PRM PTO 1¾ or 1¾ w/ SHEAR BOLT PROTECTION |
YES |
| 1,000 PRM PTO 1¾ or 1¾ w/ OVER RUNNING TORQUE LIMITING CLUTCH |
YES |
