Features
- The 7200 Series Forage Boxes are available in 23’, 25’ & 27’ models with front & rear unload systems.
- The Electric-Over-Hydraulic “Super Duty” features Hydraulic valves with a variable Speed High/Low Main Apron Unload System and Control Box.
- (1) Remote is needed for the Front Unload System (Hoses included are changed when using either the front, or rear unload systems)
- (1) Remote is needed for the Rear Unload System
- The system allows you to start and clear the cross conveyor before you start the beaters or main apron conveyors.
- No Belts or Pulleys.
- H&S uses three – 18″ 4 bar H.D. spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
- Beater shafts are 1¾″ equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
- 7200 Series Forage Box frames feature heavy 5″ channel cross members and 2.5″ x 2.5″ side stakes.
- On the rear unload system, once the tailgate safety lock is released, the self-locking mechanism unlocks automatically while unloading and locks shut when the tailgate closes.
- A 24″ Hydraulic-Fold Extend/Retract Cross-Conveyor Extension is standard on all 7200 Series Models.
- 2″ Stress-proof Front Drive Shaft.
- 2″ Stress-proof Rear Drive Shaft. (Front & Rear Unload Models).
- Heavy Duty Gearbox System.
- Heavy Drive Chains.
- Spring Loaded Tighteners on Beaters.
- Quick Release Cross-Conveyor Clean Out Pan.
- The Rear Unload Drive System features a quick change pin.
- A 4th beater is optional.
Specs

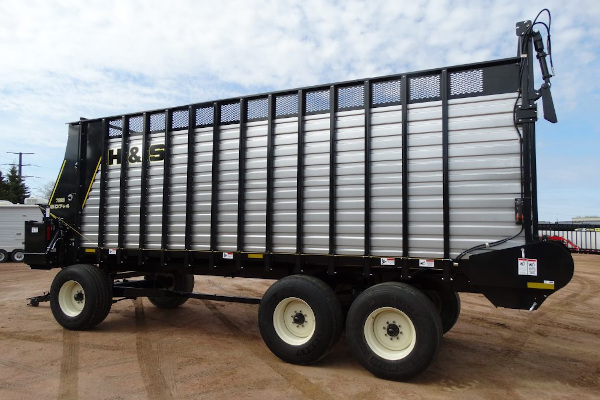

| 7223 "SUPER DUTY" | |
| Inside Width | 88.25″ |
| Inside Height (floor to top of side) | 86″ |
| Inside Length | 23′ |
| Overall Width w/Extension | 109″ |
| Overall Length | 27′ 6″ |
| Box Side Height | 106″ |
| Overall Height @ Top Door Pivot | 122″ |
| Cubic Ft. Cap. - No Roof/Struck | 1,196.19 cu. ft. |
| Apron Chain | 667XH |
| Cross-Conveyor | 22″ Wide - CA550 Chain w/Welded Slats |
| Beaters | 3 - 18″ - 4 Bar Spiral Beaters w/1¾″ Greaseable Bearings |
| Drive | Electric-over-Hyd. System w/Variable Speed High/Low Main Apron Unload System and Elec. Control Box |
| Cross-Conveyor Extension | 24″ Hydraulic-Fold Extend/Retract |
| Emergency Stop Clutch | Standard |
| Rear Unload Drive | Hydraulic |
| Rear Unload Speed | Unload Time is dependent on Tractor RPM, Hydraulic Pressure & GPM |
| Rear Endgate | Automatic Lock & Unlock |
| Rear Gate Delay | Standard |
| Roof | Optional |
