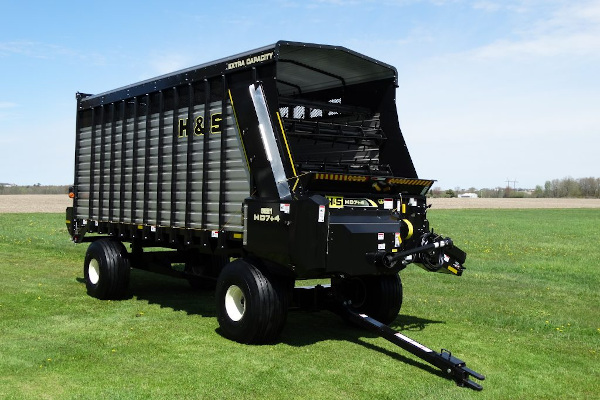

Features
- The 6200 Series Forage Boxes are front & rear unload only.
- Available in either HD 7-4 (cross conveyor), or HD Twin Auger front unload systems w/hydraulic front unload drive as standard, and PTO drive front unload as optional.
- 2″ Apron Drive Shaft.
- Faster unload time and the smoothest unloading system on the market.
- New swept back unit design.
- H&S uses three – 18″ 4 bar H.D. spiral type beaters – not augers. Aggressive in handling tough material, they are even feeding.
- Beater shafts are 1¼″ & equipped with greaseable bearings and are mounted in the head, not auxiliary panels in the box.
- Easy install 4th beater w/knock-out lugs.
- A simple trouble-free variable speed drive lets you match just the right unload speed to the crop type, load condition and blower capacity.
- A separate clutch allows you to start and clear the cross conveyor or augers before you start the beaters or main apron conveyors.
- 6200 Series Forage Box frames feature heavy 5″ channel cross members and 2.5″ x 2.5″ side stakes.
- On the rear unload system, once the tailgate safety lock is released, the self-locking mechanism unlocks automatically while unloading and locks shut when the tailgate closes.
- The Rear Unload Drive System features a quick change pin.
- 7+4 Models – Standard Spring Assist 24″ Cross Conveyor Extension has the ability to tip DOWNWARD 22 degrees.
- Spring Loaded Tighteners on Beaters.
- Remote grease zerks for the beater bearings.
Specs
| 6221 7-4 & TWIN AUGER | |
| Inside Width | 88.25″ |
| Inside Height (floor to top of side) | 86″ |
| Inside Length | 21′ |
| Overall Width | 112″ |
| Overall Length | 26′ 3″ |
| Box Side Height | 106″ |
| Overall Height @ Top Door Pivot | 122″ |
| Cubic Ft. Cap. - No Roof/Struck | 1,091.24 cu. ft. |
| Apron Chain | 667X |
| Cross-Conveyor - HD 7-4 | 22″ WIDE - CA550 CHAIN WITH WELDED SLATS |
| Beaters | 3 - 18″ - 4 BAR SPIRAL |
| Main Apron Speed | VARIABLE SPEED DRIVE — 12 UNLOAD SPEEDS |
| Front Drive System | BRONZE WORM GEAR BOX — #80 ROLLER CHAIN — 2″ MAIN APRON DRIVE SHAFT |
| Drive | HYDRAULIC DRIVE STANDARD/540 PTO OPTIONAL |
| Emergency Stop Clutch | STANDARD |
| Rear Unload Drive | HYDRAULIC |
| Rear Unload Speed | UNLOAD TIME IS DEPENDENT ON TRACTOR R.P.M., HYDRAULIC PRESSURE AND G.P.M. |
| Rear Endgate | AUTOMATIC LOCK AND UNLOCK |
| Rear Gate Delay | STANDARD |
| Roof | OPTIONAL |
