Choosing the right Case IH sprayer means matching the model, precision technology, and spray configuration to your farm's acreage, terrain, and crop demands. The Patriot lineup includes three self-propelled models, ranging from the 3250 to the flagship 4450, each scaled to different output requirements across row crop and large-acreage operations.
This guide covers the Patriot sprayer lineup, the core technologies that define each machine's capability, how to match model and configuration to your fields, spray tip and boom selection, and how H&R Agri-Power supports that decision across 18 Case IH dealer locations.
The Patriot 50 Series spans three models: the 3250 with up to 1,000-gallon capacity and 285 rated horsepower, the 4350 with a 1,200-gallon tank and 335 rated horsepower, and the 4450 with a 1,600-gallon tank, 390 rated horsepower, and boom widths up to 135 feet.
Three integrated technologies shape how each model performs: SenseApply's camera-based selective spraying, AIM Command Flex's individual nozzle on/off control across speed ranges up to 8:1, and VSN Visual Guidance, which reduces operator stress and supports more consistent field coverage.
Matching the right model requires evaluating farm acreage, terrain variability, and crop type together. Farms exceeding 200 acres typically require tank capacities above 1,000 gallons and boom widths between 60 and 100 feet to maintain application efficiency.
Spray tip selection and boom configuration directly affect coverage quality, with nozzle type, droplet size, pressure range, and boom width each playing a role in herbicide and pesticide performance across different row crops.
H&R Agri-Power's regional dealer network, precision farming expertise, and parts program provide the support infrastructure needed to configure and maintain a Patriot sprayer across its full working life.
What Is the Case IH Patriot Sprayer Lineup?
The Case IH Patriot sprayer lineup is a family of self-propelled application machines built around the Patriot 50 Series, offering three models scaled to different farm sizes and output demands. The sections below cover each model's tank capacity, horsepower, boom options, and ground clearance specs.
Patriot 3250
The Patriot 3250 is the entry-level model in the 50 Series, designed for mid-size operations. It offers 285 rated horsepower with a peak of 309 horsepower, and it is available with either an 800- or 1,000-gallon product tank. This flexibility makes it practical for farms that need efficient coverage without the overhead of the largest platform.
Patriot 4350
The Patriot 4350 features a 1,200-gallon product tank and delivers 335 rated horsepower with a peak of 374 horsepower. Positioned between the 3250 and the flagship 4450, it suits high-volume operations where tank refill trips meaningfully reduce daily acres covered.

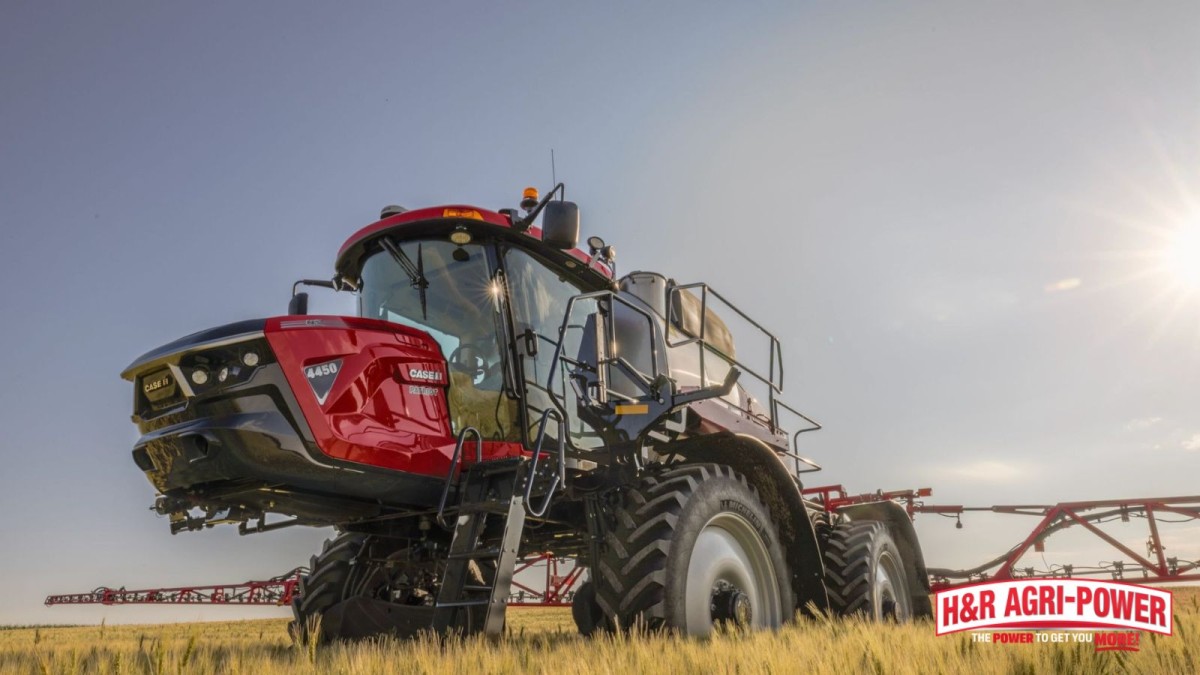

Patriot 4450
The Patriot 4450 is the top-tier model, offering a 1,600-gallon product tank and 390 rated horsepower with a peak of 415 horsepower. According to Case IH, the 4450 also provides a maximum ground clearance of 4 feet 8 inches, supporting tall-crop applications through the season. Across the 50 Series, boom width options range from 60/90 feet up to 69/135 feet, and the 4-bar linkage chassis suspension system delivers 8 inches of total suspension travel for consistent boom stability over variable terrain. For operations running high daily acreage, the 4450 represents the most capable platform in the lineup.
What Case IH Technologies Should You Understand Before Choosing a Patriot Sprayer?
Understanding these three core technologies helps you evaluate which Patriot configuration delivers the most value for your operation. The sections below cover SenseApply precision spraying, AIM Command Flex nozzle control, and VSN Visual Guidance.
How Does SenseApply Improve Application Accuracy on Large Acreage?
SenseApply improves application accuracy on large acreage by using a factory-integrated, camera-based system that delivers real-time Variable Rate Application and selective spraying. According to Case IH, this technology can reduce chemical and water costs by up to 67%. The SenseApply Selective Spray Green-on-Brown system targets only green plant material against bare soil, reducing herbicide use by up to 60%. For maximum accuracy, nozzles should be replaced when flow rates exceed 10% above a new nozzle of identical make. On large operations where input costs compound across thousands of acres, the savings potential here is difficult to ignore. H&R Agri-Power's precision farming team can walk operators through SenseApply configuration options to ensure the technology is set up correctly for their specific crop and field conditions.
How Does AIM Command Flex Control Boom Sections and Nozzles?
AIM Command Flex controls boom sections and nozzles through individual nozzle on/off capability, maintaining ideal application rate, pressure, and accuracy across speed ranges up to 8:1. According to OEM Off-Highway, AIM Command FLEX II accommodates this wide speed range without sacrificing uniformity. Nozzle selection also depends on boom height: 110-degree nozzles are recommended for heights under 30 inches with 30-inch spacing, while 80-degree nozzles suit higher boom positions. This level of individual nozzle control minimizes overlap and skip, directly protecting both crop quality and input budgets.

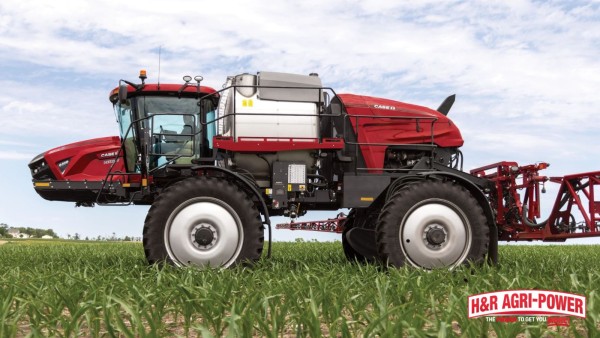

How Does VSN Visual Guidance Help Operators Navigate Fields?
VSN Visual Guidance helps operators navigate fields by providing a camera-based guidance overlay that reduces reliance on manual steering. A South Dakota State University study found that VSN reduces average operator stress rates by 48% compared to manual steering, while also enabling faster operational speeds with reduced crop damage. By lowering cognitive load, VSN allows operators to focus on field conditions rather than tracking passes, which translates to more consistent coverage across variable terrain.
How Can H&R Agri-Power Help You Select the Right Case IH Patriot Sprayer?
H&R Agri-Power can help you select the right Case IH Patriot sprayer through 18 dealer locations across six states, precision farming expertise, and dedicated parts availability. The sections below cover dealer network support and key selection takeaways.
Can H&R Agri-Power's Precision Farming Solutions and Dealer Network Support Your Patriot Sprayer Investment?
Yes, H&R Agri-Power's precision farming solutions and dealer network can support your Patriot sprayer investment. Operating 18 Case IH locations across Kentucky, Tennessee, Illinois, Alabama, Indiana, and Mississippi, H&R Agri-Power provides hands-on access to Case IH technology, including precision tools like SenseApply. The parts program ensures components are available year-round, reducing costly downtime during critical application windows. With over 50 years of experience, H&R Agri-Power pairs equipment knowledge with agronomic insight, helping operators configure sprayers to match their specific fields, crops, and precision farming goals. According to The Scottish Farmer, SenseApply's Green-on-Brown system reduces herbicide use by up to 60%, making dealer guidance on technology selection directly impactful to your bottom line.
What Are the Key Takeaways for Choosing the Right Case IH Patriot Sprayer for Your Fields?
The key takeaways for choosing the right Case IH Patriot sprayer center on matching machine capacity, technology, and service support to your operation's scale and crop type. Consider these decision factors:
-
Power and tank capacity: The Patriot 4450 delivers 390 HP with a 1,600-gallon tank, making it the highest-capacity model in the Patriot 50 Series lineup, while smaller operations may suit the 3250 or 4350.
-
Precision technology: SenseApply spot-spray technology can reduce post-emergence herbicide use by 60-80% across fallow land, corn, and wheat fields.
-
Maintenance planning: Patriot sprayers follow structured service intervals, so factor service access into your dealer selection.
-
Dealer partnership: Choosing a dealer like H&R Agri-Power with dedicated parts programs and regional locations reduces risk across the sprayer's full lifecycle.
Selecting the right sprayer is an investment in long-term productivity; H&R Agri-Power's experience makes that decision more confident.
