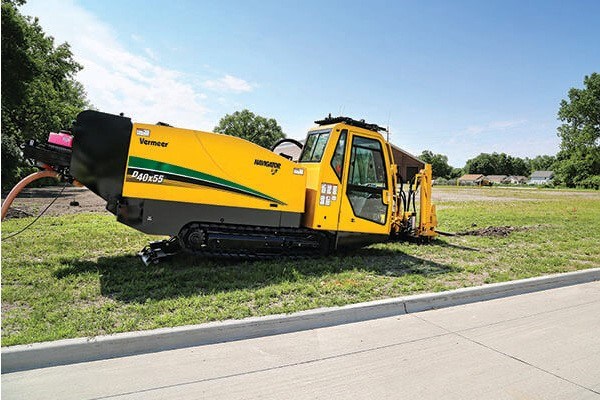

Vermeer D40X55 S3 HDD
- Premium performance, class-leading cycle times and a variety of drill rod options for a variety of applications
Shopping Tools
D40X55 S3 HDD Features & Benefits
Premium power
40,000 lb (177.9 kN) of thrust/pullback and 5,500 ft-lb (7,457 Nm) of rotational torque help operators get the job done faster.
Class-leading cycle times
Carriage speeds of 188 fpm (57.3 m/min) helps contractors install more linear feet per day.
Comfortable cab
The excavator-style cab provides operators greater with legroom.
A 104 dB(A) guaranteed sound power level and an operator ear rating of 82.9 dB(A) makes it one of the quieter drills on the market — contributing to less neighborhood disturbance.
Aurora® touchscreen display
Interactive full-color, touchscreen display from Aurora® delivers real-time, easy-to-view locate information, bore plans and more.
D40X55 S3 HDD Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length (Minimum Transport) - 10 ft (3 m) | 241 in |
| Length (Minimum Transport) - 15 ft (4.6 m)290 in | 290 in |
| Width (Minimum Transport) | 89 in |
| Width (With Cab, Minimum Transport) | 89 in |
| Height (Minimum Transport) | 76 in |
| Height (With Cab) | 94.5 in |
| Weight | 22380 lbs |
| Weight (Cab Option) | 27080 lbs |
| Angle of Approach - 10 ft (3 m) | 18 deg |
| Angle of Approach - 15 ft (4.6 m) | 15 deg |
| ENGINE | |
| Make and Model | John Deere 4045 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2400 rpm |
| Gross Horsepower | 140 hp |
| Aspiration | Turbo |
| Max Fuel Consumption | 7.4 gph |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25/25 |
| ENGINE - OPTION TWO | |
| Make and Model | John Deere 4045 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2400 rpm |
| Gross Horsepower | 140 hp |
| Aspiration | Turbo |
| Max Fuel Consumption | 7.4 gph |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25/25 |
| ENGINE - OPTION TWO | |
| Make and Model | John Deere 4045 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400 rpm |
| Gross Horsepower | 140 hp |
| Aspiration | Turbo |
| Max Fuel Consumption | 7.4 gph |
| Maximum Operating Angle (Left/Right)* | 30 deg |
| OPERATIONAL | |
| Thrust | 40000 lbs |
| Pullback | 40000 lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 188 ft/min |
| Maximum Carriage Speed in Low at Maximum Engine RPM | 75 ft/min |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 5500 ft-lb |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) | 4400 ft-lb |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 3000 ft-lb |
| Maximum Spindle Speed at Max Engine RPM | 227 rpm |
| Minimum Bore Diameter | 4 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3 mph |
| Automated Rod Loader | Yes |
| Noise Level at Operator's Ear | 83 dB(A) |
| Guaranteed sound power (CE-rating) | 105 dB(A) |
| FLUID CAPACITIES | |
| Fuel Tank | 44 gal |
| Hydraulic Tank | 55 gal |
| Hydraulic System | 65 gal |
| HYDRAULIC SYSTEM | |
| Auxiliary Pump Flow at Maximum Engine RPM | 9 gpm |
| Auxiliary Pump Relief Pressure | 3000 psi |
| Thrust/Pullback Pump Flow at Max Engine RPM | 32 gpm |
| Rotation Pump Flow at Maximum Engine RPM | 45 gpm |
| Rotation Pump Relief Pressure | 6000 psi |
| Hydraulic Supply Filter Rating | 9 micron |
| Hydraulic Return Filter Rating | Dual 5 micron filters |
| DRILLING FLUID SYSTEM OPTION ONE | |
| Maximum Flow | 50 gpm |
| Maximum Pressure | 1050 psi |
| Brand | Aplex |
| On Board Tank Capacity | 6 gal |
| DRILLING FLUID SYSTEM OPTION TWO | |
| Maximum Flow | 70 gpm |
| Maximum Pressure | 1100 psi |
| Brand | Aplex |
| On Board Tank Capacity | 6 gal |
| FEATURES | |
| Breakout System | Standard hydraulic vise |
| Drilling Lights | Standard |
| Flow Indicator | Standard |
| Stakedown System | Standard |
| Cab | Optional |
| Strike Alert | Standard |
| Remote Lockout | Standard |
