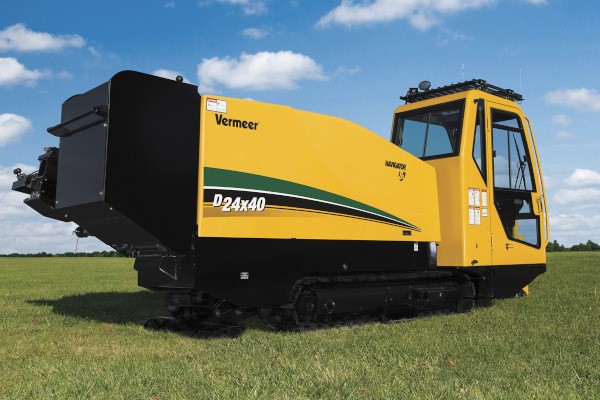

Vermeer D24X40 S3 HDD
- Setting the industry standard since 1993
- The right size and power for contractors
- Maximizes machine and jobsite productivity
Shopping Tools
D24X40 S3 HDD Features & Benefits
Top of its class
DigiTrak® Aurora® full-color touchscreen display delivers real-time easy-to-view locate information and more.
A class-leading carriage speed of 240 fpm (73.1 m/min) helps contractors install more linear feet per day.
Ideal for urban areas
A 104 dB(A) guaranteed sound power level and an operator ear rating of 82.9 dB(A) makes it one of the quieter drills on the market — contributing to less neighborhood disturbance.
A 270-rpm rotational speed rivals larger drills in a footprint ideal for urban or narrow jobsites.
Work in comfort
The excavator-style cab provides operators comfort with legroom.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
D24X40 S3 HDD Specs & Compare
| General Dimensions and Weights | |
| Length (Minimum Transport) | 241 in |
| Width (Minimum Transport) | 89 in |
| Width (With Cab, Minimum Transport) | 89 in |
| Height (Minimum Transport) | 76 in |
| Height (With Cab) | 117 in |
| Weight | 21750 lbs |
| Weight (Cab Option) | 22250 lbs |
| Angle of Approach | 19 deg |
| ENGINE | |
| Make and Model | John Deere 4045 |
| Fuel Type | Ultra low sulfur diesel |
| Maximum Engine RPM | 2400 rpm |
| Gross Horsepower | 125 hp |
| Aspiration | Turbo |
| Max Fuel Consumption | 6.8 gph |
| Maximum Operating Angle (Fore/Aft)* | 30 |
| Maximum Operating Angle (Left/Right)* | 25/25 |
| ENGINE - OPTION TWO | |
| Make and Model | John Deere 4045 |
| Fuel Type | Diesel |
| Maximum Engine RPM | 2400 rpm |
| Gross Horsepower | 125 hp |
| Aspiration | Turbo |
| Max Fuel Consumption | 6.8 gph |
| Maximum Operating Angle (Left/Right)* | 30 deg |
| OPERATIONAL | |
| Thrust | 28000 lbs |
| Pullback | 28000 lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 240 ft/min |
| Maximum Carriage Speed in Low at Maximum Engine RPM | 101 ft/min |
| Maximum Spindle Torque (Low at Maximum Engine RPM) | 4200 ft-lb |
| Maximum Spindle Torque (Medium at Maximum Engine RPM) | 3500 ft-lb |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 2000 ft-lb |
| Maximum Spindle Speed at Max Engine RPM | 270 rpm |
| Minimum Bore Diameter | 4 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3 mph |
| Automated Rod Loader | Yes |
| Noise Level at Operator's Ear | 83 dB(A) |
| Guaranteed sound power (CE-rating) | 105 dB(A) |
| FLUID CAPACITIES | |
| Fuel Tank | 44 gal |
| Hydraulic Tank | 55 gal |
| Hydraulic System | 65 gal |
| HYDRAULIC SYSTEM | |
| Auxiliary Pump Flow at Maximum Engine RPM | 9 gpm |
| Auxiliary Pump Relief Pressure | 3000 psi |
| Thrust/Pullback Pump Flow at Max Engine RPM | 32 gpm |
| Thrust/Pullback Pump Relief Pressure | 5500 psi |
| Rotation Pump Flow at Maximum Engine RPM | 45 gpm |
| Rotation Pump Relief Pressure | 6000 psi |
| Hydraulic Supply Filter Rating | 9 micron |
| Hydraulic Return Filter Rating | Dual 5 micron filters |
| DRILLING FLUID SYSTEM OPTION ONE | |
| Maximum Flow | 50 gpm |
| Maximum Pressure | 1050 psi |
| Brand | Aplex |
| On Board Tank Capacity | 6 gal |
| FEATURES | |
| Breakout System | Standard hydraulic vise |
| Drilling Lights | Standard |
| Flow Indicator | Standard |
| Stakedown System | Standard |
| Cab | Optional |
| Strike Alert | Standard |
| Remote Lockout | Standard |
