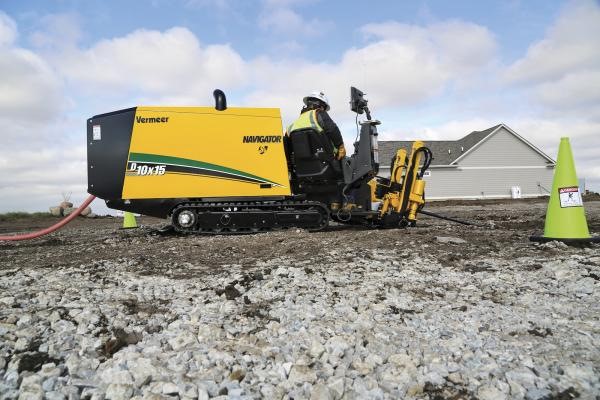

Vermeer D10X15 S3 HDD
- Reliable, economical solution for small service installation
- Increase crew's productivity
- Put more product in the ground in a short amount of time
Shopping Tools
D10X15 S3 HDD Features & Benefits
Get to work faster
A maximum ground drive speed (forward) of up to 3.3 mph (5.3 km/hr) with optional wireless remote makes it faster than the closest competitor — helping make job setup times, jobsite entry and jobsite departure go more quickly.
Improved rotation performance
Improved rotation performance helps boost productivity — an increase in spindle speed of up to 16% over its predecessor allows for a better mud slurry, enabling better mud flow while pulling in product in softer or reactive ground conditions.
The strong, quiet type
An almost 50% increase in tractive-effort-to-weight ratio over its predecessor enables improved tracking up and down ditches and enhanced maneuverability when fine-tuning setup and trailer positioning.
Reduced noise levels at operator’s ear makes a quieter working environment possible — creating less neighborhood disturbance and enabling efficient communication among the crew.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
D10X15 S3 HDD Specs & Compare
| General Dimensions and Weights | |
| Length (Minimum Transport) | 153 in |
| Width (Minimum Transport) | 44 in |
| Height (Minimum Transport) | 66 in |
| Weight | 7200 lbs |
| Angle of Approach | 22 deg |
| ENGINE | |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2300 rpm |
| Gross Horsepower | 60 hp |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 86 dB(A) |
| Emission rating | Tier 4i (EU Stage IIIA) |
| ENGINE - OPTION TWO | |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2300 rpm |
| Gross Horsepower | 60 hp |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 86 dB(A) |
| Emission rating | Tier 4 Final (EU Stage IV) |
| ENGINE - OPTION THREE | |
| Make and Model | Deutz TD2.9 |
| Fuel Type | Low sulfur diesel |
| Maximum Engine RPM | 2300 rpm |
| Gross Horsepower | 60 hp |
| Aspiration | Turbocharged |
| Noise Level at Operator's Ear | 87 dB(A) |
| Emission rating | Tier 4 Final (EU Stage V) |
| OPERATIONAL | |
| Thrust | 10000 lbs |
| Pullback | 10000 lbs |
| Maximum Carriage Speed at Maximum Engine RPM | 208 ft/min |
| Maximum Spindle Torque (High at Maximum Engine RPM) | 1500 ft-lb |
| Maximum Spindle Speed at Max Engine RPM | 240 rpm |
| Minimum Bore Diameter | 2.5 in |
| Maximum Ground Drive Speed at Maximum Engine RPM | 3.3 mph |
| Guaranteed sound power (CE-rating) | 103 dB(A) |
| FLUID CAPACITIES | |
| Fuel Tank | 18 gal |
| Hydraulic System | 25 gal |
| HYDRAULIC SYSTEM | |
| Auxiliary Pump Flow at Maximum Engine RPM | 9 gpm |
| Auxiliary Pump Relief Pressure | 3000 psi |
| Thrust/Pullback Pump Flow at Max Engine RPM | 29 gpm |
| Thrust/Pullback Pump Relief Pressure | 4350 psi |
| Rotation Pump Flow at Maximum Engine RPM | 29 gmp |
| Rotation Pump Relief Pressure | 4350 psi |
| Hydraulic Supply Filter Rating | 5 micron |
| Hydraulic Return Filter Rating | 5 micron |
| DRILLING FLUID SYSTEM OPTION ONE | |
| Maximum Flow | 15 gpm |
| Maximum Pressure750 | 750 psi |
| Brand | FMC |
| On Board Tank Capacity | 25 gal |
| FEATURES | |
| Breakout System | Standard hyd vise |
| Flow Indicator | Standard |
| Stakedown System | Standard or aggressive |
| Strike Alert | Standard |
| Remote Lockout | Standard |
| DRILL PIPE | |
| Drill Rod Thread | 1.66 Firestick® drill rod #200 |
| Thread Type | Firestick (#200) |
| Length | 6 ft |
| Rod Diameter | 1.7" (4.3 cm) |
| Joint Inside Diameter | .8 in |
| Weight | 26 lbs |
| Minimum Bend Radius | 95.5 ft |
