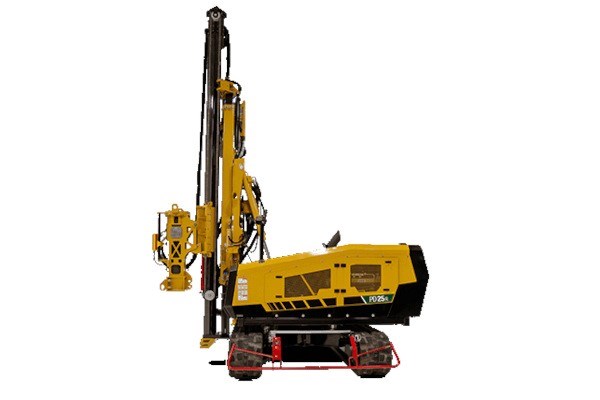

Vermeer PD25R Pile Driver
- Maximize productivity with pile-to-pile and row-to-row automation.
- Equipped with a 25-ft (7.6-m) pile driving capability, offered with a hammer as standard or optional rotary attachment.
- Power up the productivity with hammer downforce backed with a 74-hp (55-kW) engine that enables you to work in a variety of ground conditions.
- Equipped with multiple safety features.
Shopping Tools
PD25R Pile Driver Features & Benefits
Ease of setup and transport
Experience simplified and efficient jobsite mobility with a 25-ft telescoping mast and rotating upper half.
Automation
The PD25R is equipped with auto plumb, auto home, auto target and a laser receiver. Move from point-to-point and from row-to-row automatically.
Help shorten the training curve for operators and speed up jobsite productivity with automation, all with a wireless remote.
Safety features
An amber beacon notifies others on the site that the machine is in remote control use.
The bump bars during automation stop the machine if it comes into contact with an obstacle.
Other safety features include an emergency stop, tracking speed control based on hammer height and tilt out-of-range feature.
Intelligent on-rig diagnostics
Get ahead of the game and optimize uptime with technology that delivers a specific diagnostic explanation and prescriptive troubleshooting steps right to the operator's fingertips.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
PD25R Pile Driver Specs & Compare
| General Dimensions and Weights | |
| Maximum pile height | 25 ft |
| Maximum operating height | 32 ft |
| Operating weight | 18600 lbs |
| Operating length | 117 in |
| Operating width | 165 in |
| Transport Height | 99 in |
| Transport Length | 215 in |
| Transport Width | 89 in |
| Track width | 88 in |
| Engine - Option one | |
| Make and Model | Rehlko KDI2504 TCR |
| Gross Horsepower | 74 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Ultra low sulfur diesel |
| Electrical System | |
| Voltage | 12 |
| Battery CCA Rating | 950 |
| Fluid Capacities | |
| Fuel Tank | 33 gal |
| Hydraulic Tank | 41 gal |
| Ground Drive | |
| Hydraulic pump type | Closed loop |
| Maximum Transport Speed | 2.5 mph |
| Ground pressure | 5.5 psi |
| Hammer | |
| Impact drive type | High frequency |
| Maximum hammer impact | 1500 BPM |
| Maximum pile dimension (round - large opening) | 9.3 in |
| Maximum pile dimension (square - large opening) | 8.3 in |
| Features | |
| Autoplumb | Standard |
| Laser receiver | Optional |
| Maximum laser operating distance | 1500 ft |
| Rotating platform | Standard |
| Hammer pull-down | Standard |
