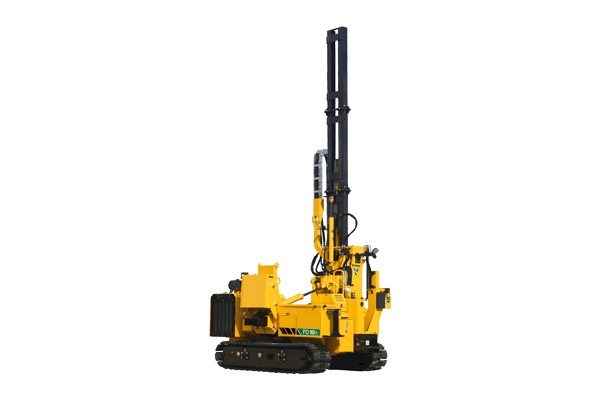

Vermeer PD10R Pile Driver
- Operated with a full-function remote
- Operator is able to handle all machine functions while remaining off the machine
- Equipped to suit a range of jobsite applications
Shopping Tools
PD10R Pile Driver Features & Benefits
Power and precision at your fingertips
Display also shows machine maintenance reminders to help maintain service schedules.
An industry-unique on-machine control system offers the operator a variety of machine information, including pile angle and height.
Move from pile to pile quickly and accurately with an efficient ground drive, help reduce cycle time.
Control machine functions, including hammer engagement, pile accuracy using the auto plumb feature and ground drive via wireless remote control.
An optional laser receiver integrated into the control system and a GPS-compatible design (capable of accepting compatible third-party systems) can help improve productivity.
Reduce your cycle time
Featuring a hammer which has high impact energy, cycle times have been reduced.
Using the auto plumb feature, the PD10R can set the mast to be vertical without any manual adjustment by the operator.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
PD10R Pile Driver Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Maximum operating height - 10' (3 m) mast | 24.9 ft |
| Operating weight - 20' (6.1. m) mast | 15560 lbs |
| Operating length | 10.2 ft |
| Operating width | 10.1 ft |
| Transport height - 20' (6.1 m) mast | 108 in |
| Transport length - 20' (6.1 m) mast | 122 ft |
| Transport width - 20' (6.1 m) mast | 101 in |
| ENGINE - OPTION ONE | |
| Make and Model | Deutz D 2.9 L4 |
| Gross Horsepower | 49 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Diesel |
| EPA Certification Family | Tier 4 Final (EU family stage IIIA) |
| ENGINE - OPTION TWO | |
| Make and Model | Deutz D 2.9 L4 Tier 4 Final |
| Gross Horsepower | 49 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Diesel |
| EPA Certification Family | Tier 4i (EU family stage IIIA) |
| ELECTRICAL SYSTEM | |
| Voltage | 12 |
| Battery CCA Rating | 950 |
| Battery Group Class | 31 |
| FLUID CAPACITIES | |
| Fuel Tank | 18 gal |
| Engine crankcase with filter | 2.1 gal |
| Hydraulic Tank | 36 gal |
| GROUND DRIVE | |
| Hydraulic pump type | Danfoss H1 hydrostatic |
| Maximum Transport Speed | 1.7 mph |
| Track drive | Steel track with rubber pads |
| HAMMER | |
| Maximum angle (direction of travel) | 11 deg |
| Maximum angle (perpendicular to travel) | 20 deg |
| Impact drive type | High-frequency hammer |
| Maximum hammer impact | 1500 bpm |
| Maximum Hammer Energy | 950 Joules |
| Maximum pile dimension (round - standard opening) | 9.3 in |
| Maximum pile dimension (square - standard opening) | 8.3 in |
| FEATURES | |
| Autoplumb | Standard |
| Laser receiver | Optional |
| Maximum laser operating distance | 1500 ft |
| Remote Control | Standard |
