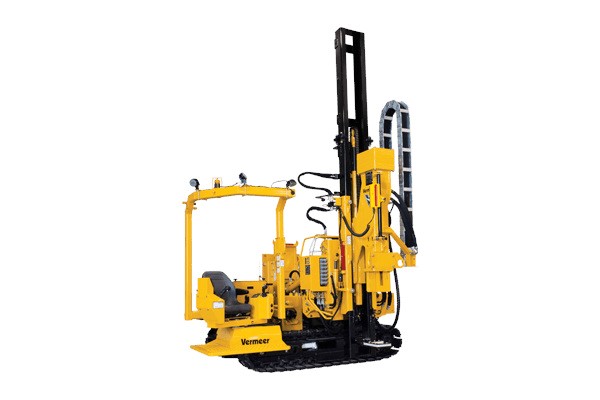

Vermeer PD10 Pile Driver
- Design to meet tight tolerances by commercial solar contractors.
Shopping Tools
PD10 Pile Driver Features & Benefits
Reduce your cycle time
With auto plumb, the mast automatically moves to a plumb orientation with a touch of a button, reducing both cycle time and out-of-plumb piles.
Improve your accuracy
With the capability to accept a number of GPS systems, the PD10 can help reduce surveying time and install piles at the correct location, depth and angle.
Take control
Dual joystick controls help to implement the above-mentioned features in the fast and most accurate way.
Dual joystick controls help to implement the above-mentioned features in the fast and most accurate way.
At your fingertips
An industry-unique integrated control system offers the operator a variety of machine information, including pile angle and height. Display also shows machine maintenance information to help maintain service schedules.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real-time data to make smarter decisions, and help maximize productivity and profitability.
PD10 Pile Driver Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Maximum operating height - 10' (3 m) mast | 14.9 ft |
| Maximum operating height - 15' (4.6 m) mast | 19.9 ft |
| Maximum operating height - 20' (6.1 m) mast | 24.9 ft |
| Operating weight - 10' (3 m) mast | 14135 lbs |
| Operating weight - 15' (4.6 m) mast | 14320 lbs |
| Operating weight - 20' (6.1. m) mast | 15980 lbs |
| Operating length | 10.2 ft |
| Operating width | 10.1 ft |
| Transport height - 10' (3 m) mast | 106.3 in |
| Transport height - 15' (4.6 m) mast | 106.3 in |
| Transport height - 20' (6.1 m) mast | 110 in |
| Transport length - 10' (3 m) mast | 10.2 ft |
| Transport length - 15' (4.6 m) mast | 10.2 ft |
| Transport length - 20' (6.1 m) mast | 10.1 ft |
| Transport width - 10' (3 m) mast | 99 in |
| Transport width - 15' (4.6 m) mast | 99 in |
| Transport width - 20' (6.1 m) mast | 101 in |
| OPERATOR'S STATION | |
| Rollover protection system (ROPS) rating | 16300 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | Deutz D 2.9 L4 |
| Gross Horsepower | 49 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Diesel |
| EPA Certification Family | Tier 4 Final (EU family Stage IIIA) |
| ENGINE - OPTION TWO | |
| Make and Model | Deutz D 2.9 L4 Tier 4 Final |
| Gross Horsepower | 49 hp |
| Number of Cylinders | 4 |
| Cooling Medium | Liquid |
| Fuel Type | Diesel |
| EPA Certification Family | Tier 4i (EU family Stage IIIA) |
| ELECTRICAL SYSTEM | |
| Voltage | 12 |
| Battery CCA Rating | 950 |
| Battery Group Class | 31 |
| FLUID CAPACITIES | |
| Fuel Tank | 18 gal |
| Engine crankcase with filter | 2.1 gal |
| Hydraulic Tank | 36 gal |
| GROUND DRIVE | |
| Hydraulic pump type | Sauer Danfoss H1 hydrostatic |
| Maximum Transport Speed | 1.7 mph |
| Track drive | Steel track with urethane pads |
| HAMMER | |
| Maximum angle (direction of travel) | 11 deg |
| Maximum angle (perpendicular to travel) | 20 deg |
| Impact drive type | High-frequency hammer |
| Maximum hammer impact | 1500 |
| Maximum Hammer Energy | 950 Joules |
| Maximum pile dimension (round - standard opening) | 7.2 in |
| Maximum pile dimension (square - standard opening) | 6.2 in |
| Maximum pile dimension (round - large opening) | 9.3 in |
| Maximum pile dimension (square - large opening) | 8.3 in |
| FEATURES | |
| Autoplumb | Standard |
| Laser receiver | Optional |
| Maximum laser operating distance | 1500 ft |
| Remote Control | Optional |
