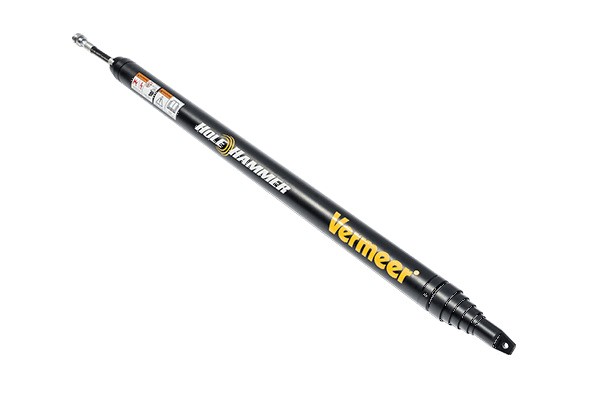

Vermeer Hole Hammer Quarter-Turn Reverse Piercing Tools
- The Vermeer hole hammer is a compact, efficient and economical tool for short- to medium-length trenchless installations
- It's a powerful, economical alternative that helps you achieve your short-bore project needs up to 150-ft (46-m) long, in a full range of soil conditions
- It's one of the most cost-effective trenchless options available
Shopping Tools
Hole Hammer Quarter-Turn Reverse Piercing Tools Features & Benefits
Serviceable rear tail hose
Can be field-serviced in minutes — no need to disassemble the tool. Helps maintain productivity.
Moving head design
Allows 100 percent of the striker energy to be delivered to the moving head, which is independent of the tool body. Designed for maximized production and accuracy in compact soil conditions.
Free-floating valve design
Allows the valve to pivot on a ball joint bushing assembly to center the valve in the striker bore. Helps to minimize wear and friction and extend tool component life.
Ribbed tool body
Inside body bore is honed and precision-fit to the striker, plus improved power and wear ring life. Maximizes production by placing additional friction between the tool body and the surrounding soil.
All-steel, air-on quarter-turn reverse
Instant positive audio and visual feedback indicates the tool has shifted into reverse — no need to shut the tool off underground. Allows the operator to efficiently rotate the air hose a quarter turn to reverse the tool.
Hole Hammer Quarter-Turn Reverse Piercing Tools Specs & Compare
| VHH200 | |
| Type | Quarter turn |
| Diameter | 2.12 in (54 mm) |
| Length | 40 in |
| Weight | 25 lbs |
| Air | 25 cfm (708 L/min) |
| Pressure | 110 psi |
| VHH250 | |
| Type | Quarter turn |
| Diameter | 2.56 in (65 mm) |
| Length | 44 in |
| Weight | 43 lbs |
| Air | 28 cfm (792 L/min) |
| Pressure | 110 psi |
| VHH300 | |
| Type | Quarter turn |
| Diameter | 3 in (76 mm) |
| Length | 53 in |
| Weight | 71 lbs |
| Air | 32 cfm (906 L/min) |
| Pressure | 110 psi |
| VHH330 | |
| Type | Quarter turn |
| Diameter | 3.38 in (85 mm) |
| Length | 54 in |
| Weight | 87 lbs |
| Air | 32 cfm (906 L/min) |
| Pressure | 110 psi |
| VHH200RT | |
| Type | Quarter turn |
| Diameter | 2.12 in (54 mm) |
| Length | 40 in |
| Weight | 25 lbs |
| Air | 25 cfm (708 L/min) |
| Pressure | 110 psi |
| VHH250RT | |
| Type | Quarter turn |
| Diameter | 2.56 in (65 mm) |
| Length | 45 in |
| Weight | 44 lbs |
| Air | 28 cfm (792 L/min) |
| Pressure | 110 psi |
| VHH300RT | |
| Type | Quarter turn |
| Diameter | 3 in (76 mm) |
| Length | 54 in |
| Weight | 72 lbs |
| Air | 32 cfm (906 L/min) |
| Pressure | 110 psi |
| VHH330RT | |
| Type | Quarter turn |
| Diameter | 3.38 in (85 mm) |
| Length | 54 in |
| Weight | 88 lbs |
| Air | 32 cfm (906 L/min) |
| Pressure | 110 psi |
