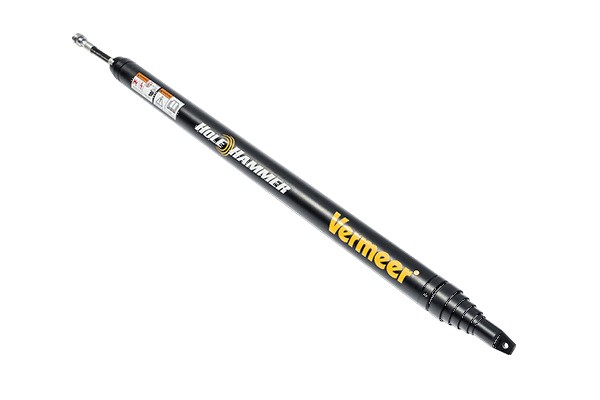

Vermeer Hole Hammer Positive-Turn Reverse Piercing Tools
- Proven and reliable design
- Legendary support and service from the industry's largest distribution network.
- Ease of maintanence
Shopping Tools
Hole Hammer Positive-Turn Reverse Piercing Tools Features & Benefits
Optimized accuracy and productivity
The moving head option on the 2.5-in (6.4-cm) and 3-in (7.6-cm) piercing tools help improve accuracy and help productivity on high production jobsites. Maintains productivity and accuracy.
Operator-friendly features
Oiler assemblies feature a quick-reverse swivel kit for air-on reversing, a sight glass to see oil levels and a pressure relief cap. Allows operator efficiency.
Maximum reliability
Proven design of the positive-turn reverse coupled with a heat-treated alloy steel tube body has minimal moving parts. Delivering maximum reliability and extended tool life.
Long-lasting performance
Replaceable head design is a heat-treated alloy to help protect the tool body and extend tool life.
Wear rings on pistons that help extend tool life and maximize tool performance.
Ease of tool maintenance
Tailbolt system provides ease of access for tool maintenance, requiring a maximum of only 35 ft-lb (47.5 Nm) of torque. Ease of access and maintenance.
Hole Hammer Positive-Turn Reverse Piercing Tools Specs & Compare
| VPT200 | |
| Type | Screw reverse - replaceable head |
| Diameter | 2 in (52 mm) |
| Length | 45.3 in |
| Weight | 28 lbs |
| Air | 22 cfm (623 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT250 | |
| Type | Screw reverse - replaceable head |
| Diameter | 2.7 in (68 mm) |
| Length | 51.9 in |
| Weight | 58 lbs |
| Air | 31 cfm (877 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT250S | |
| Type | Screw reverse - replaceable head (short body) |
| Diameter | 2.7 in (68 mm) |
| Length | 37 in |
| Weight | 41 lbs |
| Air | 31 cfm (877 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT250RT | |
| Type | Screw reverse - moving head |
| Diameter | 2.7 in (68 mm) |
| Length | 51.9 in |
| Weight | 57 lbs |
| Air | 31 cfm (877 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT300 | |
| Type | Screw reverse - replaceable head |
| Diameter | 3 in (76 mm) |
| Length | 56.1 in |
| Weight | 76 lbs |
| Air | 32 cfm (906 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT300RT | |
| Type | Screw reverse - moving head |
| Diameter | 3 in (76 mm) |
| Length | 56.1 in |
| Weight | 75 lbs |
| Air | 32 cfm (906 L/min) |
| Tailbolt access | 4 |
| Pressure | 110 psi |
| VPT400 | |
| Type | Screw reverse - replaceable head |
| Diameter | 3.89 in (100 mm) |
| Length | 64 in |
| Weight | 136 lbs |
| Air | 68 cfm (1926 L/min) |
| Tailbolt access | 6 |
| Pressure | 110 psi |
| VPT500 | |
| Type | Screw reverse - replaceable head |
| Diameter | 5.13 in (130 mm) |
| Length | 68.5 in |
| Weight | 214 lbs |
| Air | 98 cfm (2800 L/min) |
| Tailbolt access | 8 |
| Pressure | 110 psi |
