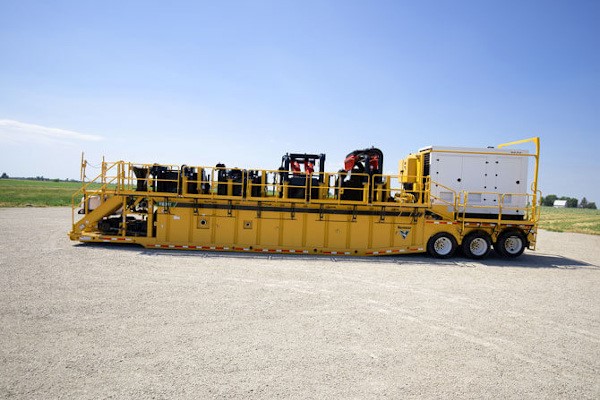

Vermeer R600T Reclaimer

Power configuration for your needs

Linear actuating motor to control discharge valve.

Contractors have flexibility in both the configurations and the option to lease or own the generator set.

Independent diesel powered hydraulic jacking motor assists with ease of transportation and jobsite set up.

Contractors can configure the reclaimer with or without the generator set mounted onboard. The option without the generator set onboard includes electrical cables for efficient connections.

Reduces headaches in large-scale pipeline work

Redesigns of the linear motion shaker deck weldment and wedge retention component help reduce weight, increase the available G-force and extend the expected screen life.

Three-tank unit offers a total capacity of 7,729 gal (29,257.4 L). A scalped tank, a middle tank and a clean tank combined with a three-stage cleaning process help provide a solution that processes over 1,100 gpm (4,163.9 L/min).

Engineered manifold provides an efficient flow of processed drilling fluid exiting the hydrocyclone, which helps reduce turbulence or excessive vacuum for efficient separation of sands and course silts.

Two 10-in (25.4-cm) desanders and 16 5-in (12.7-cm) desilters remove sand and coarse silts prior to the next stage in the cleaning process, resulting in dry solids.
