Powerful performance

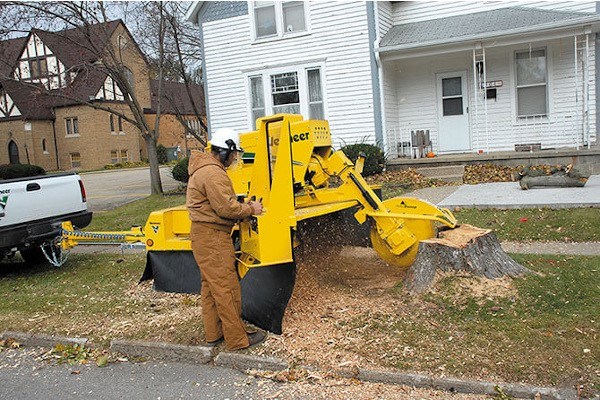

Tackle large tasks effortlessly with the SC802 stump cutter, powered by a robust 74-hp (55.2-kW) turbo-charged engine.
SmartSweep™ control system helps improve efficiency and productivity at the stump while helping to minimize wear and tear on the machine.
A 96-in (243.8 cm) straight-line cutting capacity provides extensive coverage, minimizing the need to reposition the machine.
Capable design
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions.
Independent rubber torsion suspension.
Maintain a safe distance by choosing the optional remote control, which allows you to operate the cutter from up to 100 ft (30 m) away.
A 60-in (152.4-cm) tongue extension helps reduce the amount of repositioning needed on a jobsite.
Maximized efficiency
The 68-ft3 (1.9-m3) containment area under the rear deck collects chips as you work, helping you clean up the job faster.
A 25-gal (94-L) fuel tank means you can spend less time fueling up and more time grinding on the job.
Operator safety
The operator presence system allows the cutter wheel to automatically stop when the operator releases the hydraulic cutter wheel controls.
The swing out control station helps protect the operator from thrown objects while providing optimal visibility at the stump.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length - Tongue In | 167.3 in |
| Length - Tongue Extended | 234 in |
| Length | 167.3 in |
| Width | 79.8 in |
| Height | 79 in |
| Weight - Engine Option One | 4400 lbs |
| Weight - Engine Option Two | 4040 lbs |
| Tongue Weight - Engine Option One | 460 lbs |
| Tongue Weight - Engine Option Two | 380 lbs |
| Sound Power | 108.0 dB(a) |
| Sound Power - Engine Option Two | 112.3 dB(a) |
| ENGINE - OPTION ONE | |
| Make and Model | Deutz TD2.9L Tier 4 Final |
| Number of Cylinders | 4 |
| Gross Horsepower (Maximum) | 74 hp |
| Torque (Max) | 188 ft-lb |
| Fuel Tank Capacity | 25 gal |
| Max Fuel Consumption | 4.6 gph |
| Fuel Type | Diesel |
| Air Cleaner | Dry-type with precleaner, restriction indicator, evacuator valve and safety element |
| Oil Filter | Spin-on |
| Recommended Oil | 15W40 Deutz |
| Oil Volume with Filter | 10.6 qt |
| Maximum Angle of Continuous Operation | 30 deg |
| Cooling Medium | Air-cooled head, oil-cooled block |
| Alternator | 95 amp |
| Clutch Type | Electric clutch with brake |
| CUTTERWHEEL SYSTEM | |
| Cutterwheel Diameter without Teeth | 28 in |
| Cutterwheel Thickness | .9 in |
| Cutterwheel Speed | 881 rpm |
| Cutterwheel Straight Line Dimension | 96 in |
| Cutterwheel Cut Above Ground | 35 in |
| Cutterwheel Cut Below Ground | 25 in |
| Tooth Description | Yellow Jacket™ cutter system |
| Number of Teeth | 42 |
| Number of Indexes | 2 |
| Number of Pockets | 42 |
| Reversible Pockets | Yes |
| Cutterwheel Guard | Standard |
| Chip Containment | 68 cu ft |
| CUTTERWHEEL DRIVE COMPONENTS | |
| Upper Gearbox | Straight bevel |
| Oil Type | SAE 75W90 synthetic gear oil |
| Oil Capacity | 1.7 qt |
| Lower Gearbox | Straight bevel |
| Oil Type - Lower Gearbox | SAE 75W90 synthetic gear oil |
| Oil Capacity - Lower Gearbox | 2.2 qt |
| Driveshaft | Rubber dampened with 2 universal joints |
| Driveshaft - U Joints | Two standard with double lip seal |
| HYDRAULIC SYSTEM | |
| Tank capacity | 6 gal |
| Recommended Oil Type | Vermeer HyPower 68 |
| System Type | Gear pump, pressure balanced |
| Filtration Method | 6 micron full flow return filter; suction strainer |
| Pump Flow at Maximum RPM | 3.2 gpm |
| System relief pressure | 2000 psi |
| Flow Control | Yes |
| Directional Control | Yes |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 Volt |
| Battery | 950 |
| Standard Gauges | MFD Multifunction LCD Display |
| Warning Lights | Engine warning |
| Switches | Ignition, throttle and clutch |
| Controller | Operation with AutoSweep |
| Display | Multifunction Display (MFD) |
| Shutdown System | Low oil pressure, high engine coolant temp |
| Radio Remote Control | None |
| CHASSIS | |
| Frame Description | Reinforced 4" (10.2 cm) square tubing |
| Control Station Description | Swing-out |
| Operator Vision Shield Description | Abrasion-resistant coated poly carbonate |
| Toolbox Description | Standard |
| Tongue Description | Extendable |
| Tongue Extension | 60" (152.4 cm) |
| Hitch Type | Pin, pintle, 2 1/6" (1.6 cm) ball |
| Tires - Option One | Std. 8.75-16LT Tubeless bias-ply load range D |
| Fender Description | Weld-on |
| Axle/Suspension | Rubber torsional axle |
| Type - Option One | Weld-on |
| Manufacturer - Option One | Dexter |
| Capacity - Option One | 6000 |
| Tires - Standard | 10x16.5LT Tubeless, bias ply, load ranged D |
| Wheels - Standard | 16.5"x 8.3" (41.9 x 21 cm) mod style, 6 bolt circle |
| Brake Type | Self-adjusting 12" x 2" (30.5 x 5.1 cm) electric with breakaway switch, max. total capacity 6000 lb (2721.6 kg) |
| Trailer Light Type | LED |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | Optional |
| Preventive Maintenance | Optional |
