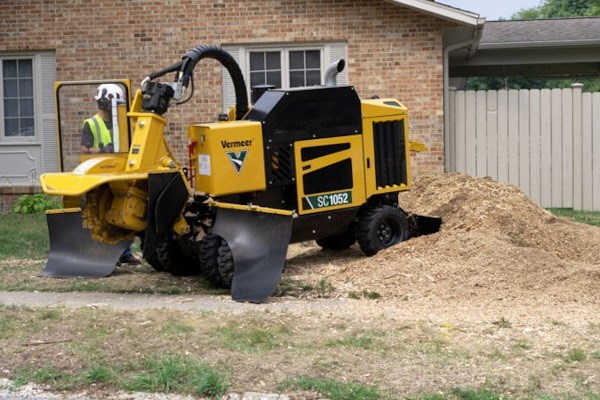

Stump cutting powerhouse
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions.
A standard backfill blade minimizes the need for manual cleanup on the job.
Variable drive speed improves maneuverability during transport and provides greater control while grinding.
Goes where you need it to
Without the dual wheels installed, the SC1052 is only 35 in (89 cm) wide, allowing it to enter narrow backyard gates and access tight jobsites.
The SC1052 transfers power and torque to all four wheels, navigating tough terrain with minimal disturbance. Disengage differential locks for better maneuverability or engage them for maximum torque on uneven ground.
The optional full-function remote control allows you to operate the stump cutter without being at the operator's station, giving you jobsite flexibility.
Efficient and versatile
Options for both the Vermeer cutting system (VCS) or Yellow Jacket™ cutter system give you the choice to select the wheel that is right for your operation and ground conditions
A standard backfill blade minimizes the need for manual cleanup on the job.
Variable drive speed improves maneuverability during transport and provides greater control while grinding.
Operator safety
The swing out control station helps protect the operator from thrown objects while providing optimal visibility at the stump.
The operator presence system allows the cutter wheel to automatically stop when the operator releases the hydraulic cutter wheel controls.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length | 152 in |
| Width | 35 in |
| Height | 80 in |
| Overall Width Transport (without duals) | 35 in |
| Overall Width Transport (with duals) | 56 in |
| Weight - Engine Option One | 4460 lbs |
| Sound Power | 111 dB(A) |
| ENGINE - OPTION ONE | |
| Make and Model | Origin 4.3L |
| Number of Cylinders | 6 |
| Gross Horsepower (Maximum) | 115 hp |
| Torque (Max) | 231 ft-lb |
| Fuel Tank Capacity | 18 gal |
| Max Fuel Consumption | 7.6 gph |
| Fuel Type | Gas |
| Air Cleaner | Two-stage dry type with maintenance-free pre-cleaner, restriction indicator, evacuator valve and safety element |
| Oil Filter | Spin-on |
| Recommended Oil | 10W-30 |
| Oil Volume with Filter | 7.5 qt |
| Maximum Angle of Continuous Operation | 30 deg |
| Cooling Medium | Extended Life (ELC) Nitrite Free (NF) |
| Coolant Capacity (Engine and Radiator) | 4 gal |
| Alternator | 70 Amp |
| Fan | Engine-driven |
| Clutch Type | Hydrostatic transmission |
| CUTTERWHEEL SYSTEM | |
| Cutterwheel Diameter | 26 in |
| Cutterwheel Thickness | .6 in |
| Cutterwheel Speed | 1014 rpm |
| Cutterwheel Straight Line Dimension | 72 in |
| Cutterwheel Cut Above Ground | 31 in |
| Cutterwheel Cut Below Ground | 25 in |
| Tooth Description | Vermeer cutting system |
| Number of Teeth | 33 |
| Number of Indexes | 2 |
| Number of Pockets | 6 |
| Reversible Pockets/Teeth | 30 |
| Cutterwheel Guard | Standard |
| Chip Containment | 28.2 cu ft |
| CUTTERWHEEL DRIVE COMPONENTS | |
| Lower Gearbox | 90 deg |
| Oil Type - Lower Gearbox | Syn 75W90 |
| Oil Capacity - Lower Gearbox | 2.7 qt |
| Driveshaft | Standard |
| Driveshaft - U Joints | 2 standard with double-lip seals |
| HYDRAULIC SYSTEM | |
| Tank capacity | 18.4 gal |
| Recommended Oil Type | Vermeer HyPower 68 |
| System Type | 2 closed loops and 1 open loop |
| Filtration Method | Suction strainers and 6-micron return filter |
| Pump Flow at Maximum RPM | 56 gpm |
| System relief pressure | 5800 psi |
| Directional Control | Electric over hydraulic |
| Oil Cooler | Standard |
| ELECTRICAL SYSTEM | |
| System Voltage | 12V |
| Battery | 950 CCA |
| Standard Gauges | Hour meter, fuel gauge, tachometer |
| Warning Lights | Low oil pressure and high engine temperature |
| Switches | Cutterwheel drive engagement; AutoSweep adjustment, differential lock, control panel selector (swingout or auxiliary), two-speed ground drive, blade, steering, boom controls and creep switches plus propel system joystick |
| Controller | Danfoss |
| Display | Multi-function display (MFD) |
| Shutdown System | High coolant or hyd oil temperature, low oil pressure |
| Radio Remote Control | Functions include: propel forward/reverse; boom up/down, boom left/right, steering left/right, blade up/down (optional), AutoSweep settings, travel speed high/low, differential lock, engine throttle |
| CHASSIS | |
| Frame Description | Welded tube and plate steel |
| Control Station Description | Swing-out control station with three available positions plus auxiliary control station |
| Operator Vision Shield Description | Abrasion-resistant coated polycarbonate, 3/16-in thick |
| Toolbox Description | None |
| Steerable Axle Type | Hydraulic, oscillating |
| Degree of Oscillation | 15 deg |
| Tires - Option One | Front: 20x8.00-10 |
| Wheels - Option One | Front: 10 in x 6 in (25.4 cm x 15.2 cm) |
| Axle/Suspension | Rigid at dual drive wheels; oscillating front steerable axle |
| Tires - Standard | Rear: Duals, 23x8.5-14 |
| Wheels - Standard | Rear: 14-in x 6-in (35.6-cm x 15.2-cm) rim |
| Brake Type | Spring-applied, hydraulic release at planetary drives |
| GROUND DRIVE | |
| Low Speed Travel | 80 ft/min |
| High Speed Travel | 140 ft/min |
| OPTION ONE | |
| Chip Blade Dimension | 34-in wide x 13.8-in tall (86.4-cm wide x 35.1-cm tall) |
| Blade Travel Above Ground | 14 in |
| REMOTE CONTROL OPTION | |
| Radio Remote Control | Optional |
| Remote Functions | Engine start/stop, throttle, cutter wheel engage, swing, raise/lower/blade/propel |
| Remote Display | LED |
| Remote Range | 300 ft (91.4 m) |
| OTHER OPTIONS | |
| Special Paint | Optional |
| Extended Warranty | 2-year/2,000-hour or 3-year/3,000-hour |
| Preventive Maintenance | Optional |
