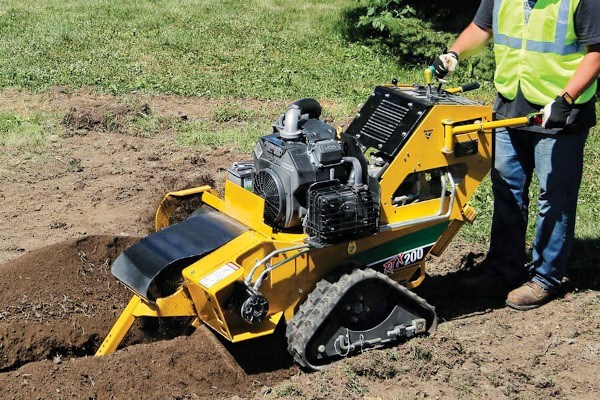

RTX200 Pedestrian Trencher Features & Benefits

Powerful torque

The RTX200 features a 20.5-hp (15.3-kW) Kohler engine, delivering high-powered digging torque.

Practical versatility

Rubber tracks offer outstanding traction in soft, rocky or muddy conditions with minimal ground disturbance.

Thanks to the intuitive and enhanced VZ steering capabilities, the operator can navigate difficult and uneven terrains with ease.

A 35-in (88.9-cm) width allows the RTX200 to access small spaces — including passing through typical backyard gates.

Smart safety

Promotes on-the-job safety with an operator presence system that disengages the trencher and ground drives if the operator leaves the controls, in addition to a trenching cleat that restricts backward motion.

The tandem effort of a heavy-duty hydraulic oil cooler and large reservoir help manage system temperature to enhance performance and reliability.

RTX200 Pedestrian Trencher Specs & Compare

GENERAL DIMENSIONS AND WEIGHTS
Length (Tractor with Tires)83 in
Width (Over Rubber Tracks)35 in
Width (Over Rubber Tires)35 in
Height46 in
Weight (Tractor with Tires)940 lbs
Wheel Base From Centerline of Axles33.2 in
Tread Width with Rubber Tires (Centerline to Centerline)8.5 in
ENGINE - OPTION ONE
Make and ModelKohler CH640
Fuel TypeGasoline
Horsepower at Maximum RPM (Gross)20.5 hp
Displacement41.1 cu-in
Cooling MediumForced air
Maximum Operating Angle (Fore/Aft)*25 deg
Maximum Operating Angle (Left/Right)*25 deg
AspirationNatural
HYDRAULIC SYSTEM
Attachment Pump Relief Pressure (Trencher/Forward)2500 psi
Ground Drive Pump Relief Pressure Forward/Reverse2400 psi
Ground Drive Pump gpm at Maximum Engine RPM5.4 gpm
Hydraulic Supply Filter Rating100 mesh strainer
Attachment Pump gpm at Maximum Engine RPM10.3 gpm
Hydraulic Return Filter Rating3 micron
CAPACITIES
Fuel Tank2.5 gal
Hydraulic Tank10.8 gal
Hydraulic System11.3 gal
Engine Oil.5 gal
GROUND DRIVE
Ground Drive TypeHydrostatic
Clutch Typenone
Maximum Forward Transport Speed at Full Throttle3.1 mph
Maximum Reverse Transport Speed at Full Throttle1 mph
