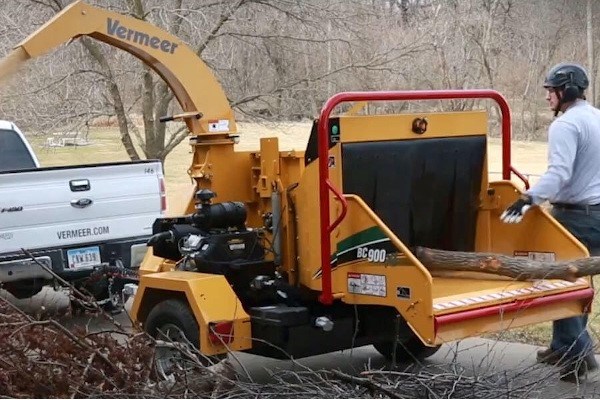

Vermeer BC900XL Brush-Chipper
- Enhanced chipping capabilities
- Optimal access to key machine maintenance areas
- Safety features built with the operator in mind
Shopping Tools
BC900XL Brush-Chipper Features & Benefits
Intelligent feeding
SmartFeed, a patented feed-sensing control system, boosts operator productivity and reduces engine strain by monitoring engine rpm and controlling feed rollers.
The large infeed opening simplifies feeding irregular material and reduces the need for crosscuts before feeding the chipper.
Serviceability
Designed with ease of maintenance in mind, the BC900XL features a dripless oil filter and conveniently located grease points to help reduce service time.
Safety
The patented bottom feed stop bar is strategically positioned so the operator can strike it to shut off the feed mechanism.
Your access to MORE: VermeerOne™
VermeerOne™ Platform isn’t just a tool or platform. It’s an experience — one designed to simplify equipment management, empower users with real time data to make smarter decisions, and help maximize productivity and profitability.
BC900XL Brush-Chipper Specs & Compare
| GENERAL DIMENSIONS AND WEIGHTS | |
| Length - Feed Table Up, Tongue In | 140.4 in |
| Length - Table Down, Tongue Extended | 154.8 in |
| Width | 79.5 in |
| Height | 101.5 in |
| Weight - Engine Option One | 2980 lbs |
| Tongue Weight - Engine Option One | 300 lbs |
| ENGINE - OPTION ONE | |
| Make and Model | Briggs and Stratton Vanguard |
| Gross Horsepower (Maximum) | 35 hp |
| Torque (Max) | 53 ft-lb |
| Fuel Tank Capacity | 16 gal |
| Max Fuel Consumption | 3.2 gph |
| Fuel Type | Gasoline |
| Air Cleaner | Dry-type safety element and restriction indicator |
| Oil Filter | Spin-On |
| Recommended Oil | 10W30 |
| Oil Volume with Filter | 2 qt |
| Cooling Medium | Air |
| Alternator | 20 amp |
| Clutch Drive Engagement | Clutchless PTO or centrifugal clutch |
| FEED SYSTEM | |
| Feed Roller Orientation | Horizontal |
| Number of Feed Rollers | 1 |
| Feed Roller Clamp Load | 484 lbs |
| Feed Roller Clamp Type | Feed roller weight only |
| Feed Roller Dimension | 15.8" dia x 13.5" long (40 cm x 34.3 cm) |
| Number of Knives | 12 |
| Weight of Feed Roller | 210 lbs |
| Number of Feed Roller Motors | 1 |
| Motor Displacement | 33.1 CID |
| Motor Manufacturer | White |
| Feed Speed | 146 ft/min |
| Infeed Table Width | 48 in |
| Infeed Table Length | 25 in |
| Infeed Hopper Height | 32 in |
| Infeed Throat Capacity | 9 in x 14 in (22.9 cm x 35.6 cm) |
| Pinch Point - Distance to End of Feed Table | 66 in |
| Distance from Feed Table to Ground | 29 in |
| Infeed Table Material Thickness | .2 in |
| SAFETY SYSTEM | |
| Bottom Feed Stop Bar | Standard |
| Bottom Feed Stop Bar Diameter | 2 in |
| Bottom Feed Stop Bar Material Thickness | 11 GA |
| Actuation Force (BFSB) | 34 lbs |
| Normal Sensitivity | 22 deg |
| Reduced Sensitivity | 12 deg |
| Reset Method | Dual green hold-to-run buttons |
| Four Position Feed Control Bar | Standard |
| Diameter | 2 in |
| Material Thickness | .1 in |
| Positions | Four positions: Emergency stop, forward, stop and reverse |
| Actuation Force | 34 lbs |
| Green Hold to Run Button | Standard |
| DRUM/DISC CUTTING SYSTEM | |
| Material Capacity | 9 in |
| Thickness | 1 in |
| Diameter | 33 in |
| Speed | 1500 rpm |
| Weight With Shaft | 330 lbs |
| Safety Lock - Number of Positions | 6 |
| Number of Knives | 2 |
| Knife Thickness | .6 in |
| Material | A8 chipper steel |
| Useable Edges | 2 |
| Knife Size | 5" x 11.75" (12.7 cm x 29.8 cm) |
| Number of Bolts/Knife | 5 |
| Replaceable Threaded Knife Block | Yes |
| Number of Paddles | 2 |
| Fixture Method | Bolt-on |
| Air Flow | 933 cfm |
| Bedknife Size | 5" x 12.1" (12.7 cm x 30.7 cm) horizontal and 5" x 8.8" (12.7 cm x 22.4 cm) vertical |
| Bedknife Thickness | .8 in |
| Bedknife Material | Grade 50 |
| Bedknife - Number of Useable Edges | 2 |
| CUTTER DRIVE COMPONENTS - ENGINE OPTION ONE | |
| Number of Bearings | 2 |
| Bore | 2.2 in |
| Type | Dual spherical roller |
| Manufacturer | Linkbelt |
| Dynamic Capacity | 31400 lbs |
| Static Capacity | 54500 lbs |
| Belt Idler/Tensioner | Yes |
| Belt Type | Chipper - Polyester Cord with wrap |
| DISCHARGE SYSTEM | |
| Chute Height | 96.7 in |
| Bottom Thickness | .1 in |
| Top Thickness | .1 in |
| Side Wall Thickness | .1 in |
| Deflector Thickness | .1 in |
| Chute Rotation Angle | 270 deg |
| Rotation Type | Manual dual handles with pin lock |
| Rotational Lock | Yes |
| HYDRAULIC SYSTEM | |
| Tank capacity | 6.8 gal |
| Recommended Oil Type | Vermeer VMF Gold |
| System Type | Tandem Center |
| Filtration Method | 10 micron return |
| Pump Flow at Maximum RPM | 5 gpm |
| System relief pressure | 2500 psi |
| Auto Reverse PSI | 2300 psi |
| ELECTRICAL SYSTEM | |
| System Voltage | 12 V |
| Battery | Group 24 - 580 CCA |
| Standard Gauges | Hour meter |
| Controller | Vermeer ACS |
| Shutdown System | Engine |
| CHASSIS | |
| Frame Description | 3/16" x 5/6" (.5 cm x 14.2 cm) Z-channel |
| Tongue Description | 3" x 5" 3/16" (7.6 cm x 12.7 cm x .5 cm) Tube |
| Hitch Type | Pintle or ball |
| Fender Description | Bolt-on |
| Axle/Suspension | 3500 lb (1587.6 kg) |
| Type - Option One | Rubber torsional |
| Manufacturer - Option One | Dexter |
| Capacity - Option One | 3500 (1587.6 kg) |
| Tires - Option One | ST215/75R14 |
| Wheels - Option One | 14" (35.6 cm) |
| Axle/Suspension - Option Two | 3500 lb (1587.6 kg) with electric brakes |
| Type - Option Two | Rubber torsional |
| Manufacturer - Option Two | Dexter |
| OTHER OPTIONS | |
| Special Paint | Yes |
| Extended Warranty | Yes |
| Preventive Maintenance | Yes |
