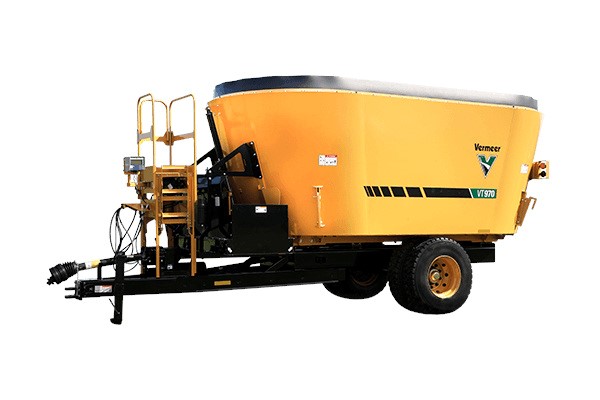

Vermeer VT970 Premium Twin-Screw Vertical Mixer
- Reap all the benefits of the VT970 plus even more durability and longevity
- Nearly 1,000 ft3 (28.3 m3) in capacity plus an overlapping screw design that pulls feed from opposite chambers for a quick mixing process
- Optimize ration costs and help reduce feed waste
Shopping Tools
VT970 Premium Twin-Screw Vertical Mixer Features & Benefits
Efficient mixing and cleanout
Three points of contact with the tub floor, made up of two bi-pulse legs and the leading edge of the screw, help move material from the tub to the discharge conveyor for consistent distribution along a bunk line or tire.
Achieve a consistent, thorough mix with two overlapping screws and offset baffles on the tub wall. Instead of feedstuffs remaining in either the front or the back of the tub, the tub construction encourages the material to travel between the screws.
Convenient operation
Optimize rations and achieve defined targets when feeding in multiple pens with a 4-point scale. Plus, wireless connectivity makes load weights accessible from a smart device.
Optional bidirectional discharge makes feeding convenient. Feed either on the right or left side of the alley when traveling between pens or multiple buildings.
Versatile options
Looking for a large-capacity mixer but have terrain constraints? The VT970 twin-screw vertical mixer gives operators the option to configure a single axle with dual tires or a tandem-spring axle with four large super-single tires.
Built to last
Equipped with 3/8-in (9.5-mm) tub material and 1-in (2.5-cm) floor thickness, this mixer is built to withstand load after load.
Help machine life and get ready for long-lasting performance with two extra heavy-duty planetaries powering the screw.
Designed for strength, longevity and versatility, the durable screws are made from abrasion-resistant, heat-treated AR200 steel.
Operators can be confident their mixer will withstand various types of feedstuffs with minimized rust and maximized durability by adding optional stainless steel liners.
Premium features
Experience maximized strength, durability and longevity with thicker sidewalls, thicker tub floor and thicker screw flighting compared to the VT970 twin-screw vertical mixer.
Premium models are equipped with an additional remote display for visibility to the accurate weight-reads from the 4-point scale.
VT970 Premium Twin-Screw Vertical Mixer Specs & Compare
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 127 in |
| Machine weight - standard | 22880 lbs |
| Maximum net load | 25000 lbs |
| Total length | 300 in |
| Transport width - 50-in folding conveyor extension | 119 in |
| Transport width - 119-in bi-directional conveyor | 119 in |
| Working width - 50-in folding conveyor extension | 136 in |
| Working width - 119-in bi-directional conveyor | 119 in |
| Tires (retread) | Standard 315/80R-22.5 dual; Optional 445/50R-22.5 tandem |
| TUB AND SCREWS | |
| Capacity | 970 cu ft |
| Number of screws | 2 |
| Number of knives per screw | 7 |
| Tub wall thickness | 3/8 in (9.5 mm) |
| Tub wall material | AR200 |
| Floor thickness | 1 in (2.5 cm) |
| Screw flighting thickness | 3/4 in (19.1 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Front conveyor |
| Discharge Direction | Left or right |
| Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
| Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
| Rear discharge door | Optional |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 180 hp (2-speed) (130 kW) |
| Recommended PTO horsepower | 200 hp |
| DRIVE SYSTEM | |
| Driveline | 1,000 rpm, CV |
| Two-speed gearbox | Optional |
| Torque Protection | Shear bolt |
| Screw rpm | 39 (1-speed); 39/26 (2-speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2810-BT |
| Number of weigh bars | 4 |
| Bluetooth connectivity | Standard |
| Remote Display | Standard |
