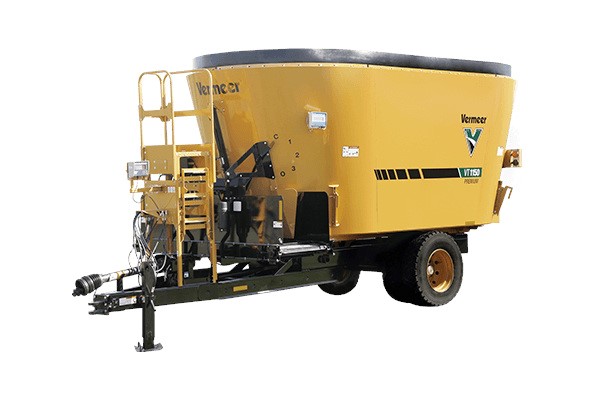

Vermeer VT1150 Premium Twin-Screw Vertical Mixer
- Heavy-duty planetary and larger size for maximum load capacity
- Standard planetary cooling system and optional two-speed gearbox cooling
- Optimize ration costs and help reduce feed waste
Shopping Tools
VT1150 Premium Twin-Screw Vertical Mixer Features & Benefits
Efficient mixing and cleanout
Three points of contact with the tub floor, made up of two bi-pulse legs and the leading edge of the screw, help move material from the tub to the discharge conveyor for consistent distribution along a bunk line or tire.
Achieve a consistent, thorough mix with two overlapping screws and offset baffles on the tub wall. Instead of feedstuffs remaining in either the front or the back of the tub, the tub construction encourages the material to travel between the screws.
Convenient operation
Optimize rations and achieve defined targets when feeding in multiple pens with a 4-point scale. Plus, wireless connectivity makes load weights accessible from a smart device.
Optional bidirectional discharge makes feeding convenient. Feed either on the right or left side of the alley when traveling between pens or multiple buildings.
Built to last
Equipped with 3/8-in (9.5-mm) tub material and 1-in (2.5-cm) floor thickness, this mixer is built to withstand load after load.
A standard cooling system helps keep the planetary from overheating so the mixer can be used like it’s built to be used — all day, every day.
Designed for strength, longevity and versatility, the durable screws are made from abrasion-resistant, heat-treated AR200 steel.
Operators can be confident their mixer will withstand various types of feedstuffs with minimized rust and maximized durability by adding optional stainless steel liners.
Premium features
Experience maximized strength, durability and longevity with thicker sidewalls, thicker tub floor and thicker screw flighting compared to the VT1150 twin-screw vertical mixer.
Premium models are equipped with an additional remote display for visibility to the accurate weight-reads from the 4-point scale.
VT1150 Premium Twin-Screw Vertical Mixer Specs & Compare
| DIMENSIONS AND WEIGHTS | |
| Loading height - standard | 139 in |
| Machine weight - standard | 24800 lbs |
| Maximum net load | 30000 lbs |
| Total length | 303 in |
| Transport width - 50-in folding conveyor extension | 120 in |
| Transport width - 119-in bi-directional conveyor | 119 in |
| Working width - 50-in folding conveyor extension | 138 in |
| Working width - 119-in bi-directional conveyor | 119 in |
| Tires (retread) | Standard 315/80R-22.5 dual; Optional 255/70R-22.5 dual, tandem; 445/50R-22.5 tandem |
| TUB AND SCREWS | |
| Capacity | 1150 cu ft |
| Number of screws | 2 |
| Number of knives per screw | 141 |
| Tub wall thickness | 3/8 in (9.5 mm) |
| Tub wall material | AR200 |
| Floor thickness | 1 in (2.5 cm) |
| Screw flighting thickness | 3/4 in (19.1 mm) |
| Screw flighting material | AR200 |
| DISCHARGE SYSTEM | |
| Discharge style | Front conveyor |
| Discharge Direction | Left or right |
| Folding conveyor extension length | 25 in/40 in/50 in (64 cm/100 cm/130 cm) |
| Bi-directional conveyor length | 101 in/110 in/119 in (257 cm/280 cm/302 cm) OR 101 in (257 cm) hydraulic shift |
| Rear discharge door | Optional |
| TRACTOR REQUIREMENTS | |
| Minimum PTO horsepower | 190 hp (2-speed) (140 kW) |
| Recommended PTO horsepower | 220 hp |
| DRIVE SYSTEM | |
| Driveline | 1,000 rpm, CV |
| Two-speed gearbox | Optional |
| Torque Protection | Shear bolt |
| Screw rpm | 34 (1-speed); 34/23 (2-speed) |
| SCALE SYSTEM | |
| Scale display | Digi-Star EZ2810-BT |
| Number of weigh bars | 4 |
| Bluetooth connectivity | Standard |
| Remote Display | Standard |
