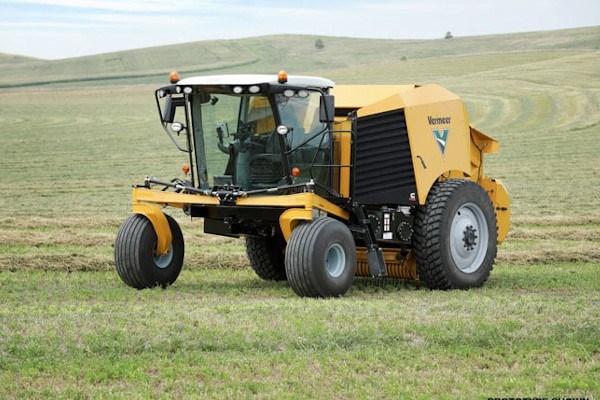

Vermeer ZR5-1200
- Get ready to let the ZR5-1200 self-propelled baler change the way you put up hay
- Make quick work of a field with an unprecedented level of comfort and maneuverability
- Reduce the number of steps needed to make a bale with automation
- Built tough and specifically designed for one job — baling
Shopping Tools
ZR5-1200 Features & Benefits
More bales in less time
Save time when picking up bales with integrated quarter-turn technology that allows bales to be placed parallel to the windrow.
Minimize missed windrows to help maximize productivity. The zero-turn capabilities of the ZR5-1200 means you can spend less time correcting course and more time baling when compared to a conventional tractor-baler combination.
By automating parts of the baling process, the ZR5-1200 helps reduce the number of manual steps to make a bale to just one step.
Experience speeds of up to 12 mph (19.3 km/hr) in the field based on ground conditions, and up to 34 mph (54 km/hr) when in transport mode.
Smooth, comfortable operation
Experience a smooth, comfortable ride with the cab uniquely positioned over the suspension. A patented independent suspension system within the ZR5-1200 allows operators to better handle the uneven ground conditions that naturally come with baling.
No need to turn around while baling — the ZR5-1200 cab was built with wide visibility in mind with two cameras to see both the baler pickup and rear view of the machine displayed on a screen in the cab.
Convenient maintenance
The bale chamber can be removed for quick maintenance. After the chamber is detached from the base unit, operators have convenient access to the bale chamber for routine maintenance.
ZR5-1200 Specs & Compare
| BALE SIZE | |
| Bale Diameter | 36 in - 72 in (91.4 cm - 182.9 cm) |
| Bale Width | 61 in |
| Maximum bale weight | 2400 lbs |
| DIMENSIONS AND WEIGHTS | |
| Length with Netwrap and Ramp | 248 in |
| Height | 124 in |
| Width | 142 in |
| Weight | 19500 lbs |
| ENGINE | |
| Engine | 200 hp (149 kW) Cummins Stage V 4.5L engine |
| Ground Drive | 2-speed |
| Maximum Road Speed | 30+ mph (48.3+ kph) |
| Maximum Baling Speed | 12 mph |
| Rear Tire | 18.4 R38 |
| Front Tire | 21.5L 16.1 HWY |
| Fuel Capacity | 88 gal |
| DEF Capacity | 8.8 gal |
| Suspension | Double A-arm independent hydraulic |
| Dual steering mode | Standard |
| Counter steer | Standard |
| CONTROL SYSTEM | |
| Display | 10.4-in (26.4-cm) color touchscreen with soft keys |
| Bale shape sensors | Standard |
| Real-time moisture data | Standard |
| Scales | Standard |
| Field Statistics | 50 fields with names |
| Automation mode | Standard |
| LED work lights | Standard |
| CAB | |
| Seats | Leather, heated, air-conditioned, air-ride, adjustable |
| Entertainment | AM/FM bluetooth with auxiliary input |
| Steering | Tilt and telescoping |
| Camera | Two infrared cameras: one pickup view and one tailgate view with auto-changing color display |
| Instructional seat | Standard |
| Beverage cooler | Standard |
| In-cab heat | Standard |
| In-cab air conditioning | Standard |
| BALE FORMING CHAMBER | |
| Drive roller size | 5.5 in |
| Drum roller size | 12 in |
| Idler roller size | 3.5 in (8.9 cm), 4.8 in (12.1 cm), 5.5 in (14 cm) |
| Start Roller Size | 4.5 in |
| Belt Type | Standard mini rough top |
| Number of Belts | 8 |
| Width of Belt | 6.8 in |
| Length of belt (long) | 540 in |
| Length of belt (short) | 533 in |
| Type of Lace | Alligator rivet |
| Silage kit | Optional |
| Powered windguard | Optional |
