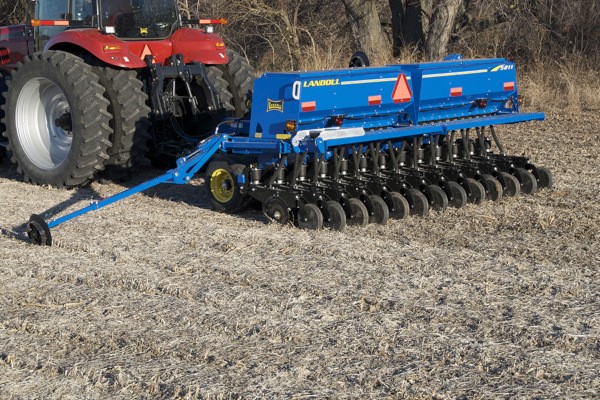

Landoll 5211-10x7.5
Seeding innovation is at its finest with the Grain Drill line-up from Landoll. Built tough to easily handle conventional tilled soil all the way to no-till conditions.
Shopping Tools
5211-10x7.5 Features & Benefits
Features for the Finest in Seeding Innovation
- State of the Art Laser Cut and Robotically Welded Main Frame and Hitches
- Rigid Frames on 10′, 12 1/2′, 15′ and 20′ Models
- Front Folding Frames on 30′, 40′ and 50′ Models
- All Tires are in Front of Frame
- Row Units Raise Independently from Frame
- UHMW Pivots on Lift System
- Cat. III or Cat. IV Single Lip Hitches (Model Dependent)
- Pneumatic Down Pressure (Adjustable from 120 to 400 lbs.)
- Maintenance Free Pivots on Openers
- 15.8” x 3.5 mm Opener Blades
- Blades Configured “Heads Up” for Decreased Wear on Openers
- Poly Soil Hold Down Strips Clean Openers and Control Opener Blow-Out
- Planter Style Seed Drop Tubes
- Swivel Type Press Wheels with 2” x 13” Smooth or 3” x 13” Double Rib Tires
- 3.25 bu./ft. Grain Only Seed Box Capacity
- Grain with Dry Fertilizer: 2 bu./ft. Grain Capacity with 105 lbs./ft. Fertilizer Capacity
- Small Grass Seed Option: .33 bu./ft. Capacity and Equipped with Brillion Micro-Meters
- New Fluted Seed Meters
- Inline Box Design with 12 Degree Down and 15 Degree Flex
- Weight Package for Wings
- 320/70R x 15 Radial Tires for Rigid Models
- 380/55R x 16.5 Radial Tires on Center Frame of 30′ & 40′ Folding Models
- 480/45R x 17 Radial Tires on Center Frame of 50′ Folding Models
- 280/70R x 15 Radial Tires on Wings of 30′, 40′ & 50′ Folding Models
- Slip-In Spindles in All Locations on All Models
- Monitor with Acre Meter, Seed Tube Flow Sensors, Bin Level Sensors
- On-Board 12 Volt Air Compressor
- Blue Powder Coat Paint
- LED Safety Warning Lights
5211-10x7.5 Specs & Compare
| Model | 5211-10x7.5 |
| Approximate Weight | 8,731 lbs. (3,960 kg) |
| Working Width | 10 ft. 0 in. (3.0 m) |
| Transport Width | 10 ft. 0 in. (3.0 m) |
| Opener Spacing | 7.5 in. (191 mm) |
| Number of Openers | 16 |
| Frame | 7 in. x 7 in. x 0.375 in. (178 x 178 x 9.5 mm) |
| Frame Construction | Laser Cut/Matchcut Components, Robotically Welded |
| Frame Type | Weighted Main Frame |
| Three-Point Hitch | N/A |
| Weighted Pull-Type Hitch | Cat. III Single-Lip |
| Transport Tire Size | (4) 11L x 15, 12 Ply |
| Wheel Hubs | 6-Bolt |
| Spindles | 2 in. (50.8 mm) Slip-In Spindles |
| Drive Chain | Enclosed #50 Chain |
| Transport Wheel Mount | In Front of Openers |
| Row Unit Type | Pneumatically Adjustable Down Pressure |
| Row Unit Adjustment Range | 120 to 400 lbs. (54 to 181 kg) |
| Disc Opener Type | Double Disc Openers |
| Disc Opener Style | Heads Up Alignment |
| Disc Type | Smooth |
| Disc Size | 15.8 in. x 0.1383 in. (400 x 3.5 mm) |
| Disc Bearing | #205 Bearing |
| Opener Pivots | Maintenance Free Pivot Points |
| Seed Tubes | Poly, Planter Type Seed Tubes |
| Opener Tenders | Flat Spring Backed Poly Soil Hold Strips |
| Press Wheels | Swivel Type |
| Press Wheel Sizes | 2 in. x 13 in. (50.8 x 330 mm) Smooth or 3 in. x 13 in. (76.2 x 330 mm) Double Rib |
| Hopper Construction | All Welded 14 ga. Steel |
| Hopper Lids | All Steel Formed Lids with Latches |
| Meter Type | Externally Fluted |
| Grain Hopper Capacity | 3.25 Bushel per Foot |
| Integral Folding Ladder | Standard |
| Integral Fold-Up Walk Boards | Standard |
| On-Board 12V Air Compressor | Standard |
| Monitor with Acre Meter, Seed Tube Sensors, Bin Level Sensors | Standard |
| Safety Warning Lights and SMV Emblem | Standard |
| Safety Chain Kit (Pull-Type Models) | Standard |
| Powder Coat Paint, Blue Sapphire | Standard |
| Seed Meter Plug | Optional |
| Hydraulic Row Markers | Optional |
| Double Lip Hitch Clevis (Pull-Type Models) | Optional |
| Rear Hitch Package | Optional |
| Coulter Hitch | Optional |
| Horsepower Requirements | 7 to 10 HP (5 to 7 kW) per Foot |
