Features
| Features | Benefits |
| Quality hydraulic motor available in two volume flows | Provides long life, durable construction. Two flow options allow the trencher to fit many compact loaders. |
| Reversible motor | Helps in areas where rocks may lodge and stop chain, can back out and try again. |
| Boom ball bearings are selfcontained ball bearing with triple-lip seals and metal shroud covers | Boom ball bearings are protected against dirt invasion and do not require greasing. |
| Drive bearings are self-contained, single & double row ball bearings with extra heavy duty seals. | Drive bearings are protected against dirt invasion and do not require greasing. |
| Hardened cup teeth | Increase life and productivity of the teeth. |
| High tensile strength trencher chain | Chain stands up to rugged use. |
| High tensile strength trencher chain | Designed for anti-flex without binding or piggybacking |
| Full length bolts securing teeth with spacers at every station. | Helps to distribute load equally on both sides of the chain. Minimizes chain wear. |
| Connect under pressure hydraulic couplers | Couplers are easier to connect and disconnect. |
| Removable spoil auger | Helps dig a trench closer to fences and buildings. |
| Floating crumber shoe | Improves the performance of the crumber shoe. |
| Depth indicator | Helps the operator judge the depth of trench from the operator's station. |
| Numerous chain options | Plenty of options to choose from to match your local digging conditions |
| Heavy frame construction | Stands up to rugged use. (1/4" Thick hitch plate with 1/2" AR400 lock pin slot.) |
| CTR1030: 30" digging depth CTR1036: 36" digging depth CTR1048: 48" digging depth | Customer can choose which trencher best suits their needs. |
Specs

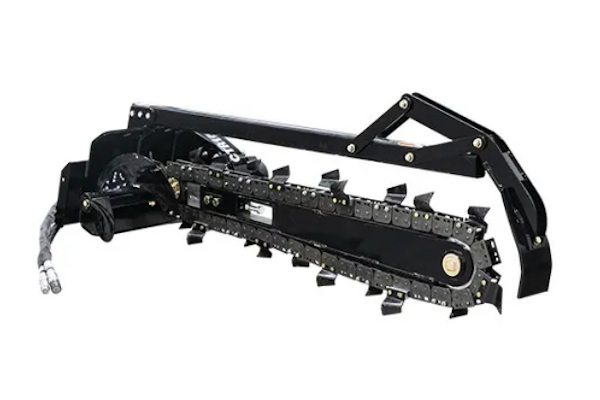

| Model Numbers | CTR1036 |
| Operating weight With 2 pitch cup chain | 516 lbs (234kg) |
| Overall length | 72" (1.8 m) |
| Digging depth at 60 degrees | 36"(.9 m) |
| Overall width | 32" (81 cm) |
| Overall height | 33" (84 cm) |
| Auger diameter | 12.25" (31.1 cm) |
| Trenching widths available | 4", 6", 8" & 10" (10 cm,15.2 cm, 20.3 cm, & 25.4 cm) |
| Motor options | High speed or High torque |
| Hydraulic motor flow requirements | 20 gpm (75.7 lpm) max. continuous |
| Hydraulic motor pressure range | 3000 psi (21 MPa) max. |
| Chain speed (at 15 gpm) | 638 |
| Chain tightener | Threaded |
| Crumber shoe | Floating, optional equipment |
| Depth indicator | Standard (Viewable from operator platform) |
| Roller guide bearings at boom head | Sealed, ball bearings with triple lip seals & metal shroud covers |
| Drive bearings | Sealed, double row ball bearings with heavy duty seals |
| Spoil auger | Removable |
| Chain options - numerous | Cup teeth on 2 or 4 pitch, or scorpion w/cup teeth |
| Trencher chain | 1.7" (4.2 cm) Pitch, 34,000 lb (15,422 kg) tensile strength |
| Trencher chain side links | Anti-flex |
| Cup teeth | Hardened with hard facing |
