Features
| Bucket | |
| Features | Benefits |
| Grade 50 high strength steel shell 3/16" (5 mm) thick |
Improved strength & wear versus mild steel |
| Five 1/2" x 5" (13 mm x 127 mm) bottom wear plates |
Extends bucket life |
| Reinforced bucket corners & side edges | Adds strength & extends bucket life |
| Drilled cutting edge 5/8" x 6" (16 mm x 152 mm) |
Accepts optional bolt on cutting edge |
| Optional bolt on cutting edge 5/8" x 6" (16 mm x 152 mm) |
Reversible and replaceable; extends life of cutting edge |
| Upper torque tube/lower torque channel | Prevents twisting |
| Struck capacity >br/>.7yd³ (.5m³) | Allows high volume material handling |
| Universal Quick-Attach mount | Allows grapple to be installed/removed quickly |
| Grapple | |
| Features | Benefits |
| High strength cast grapple tines | Stronger and more aesthetic than welded tines |
| Tubular steel construction | Resists twisting |
| Parking stands | Allows grapple to be stored upright when not in use |
| Spill guard | Helps contain loose material |
| Dual cylinders 3" @ 3500psi (7.6 cm @ 24MPa) |
Large cylinders handle high pressure & loads |
| Hose kit included | Hoses provided to center tees or valve |
| Optional lock valve | Prevents hydraulic bleed-off / improves cylinder control |
| Quick release grapple | Four pin mount system |
| Large 77" opening | Handles large bales and high volumes of material |
| Greasable pivot points | Extends grapple life |
Specs

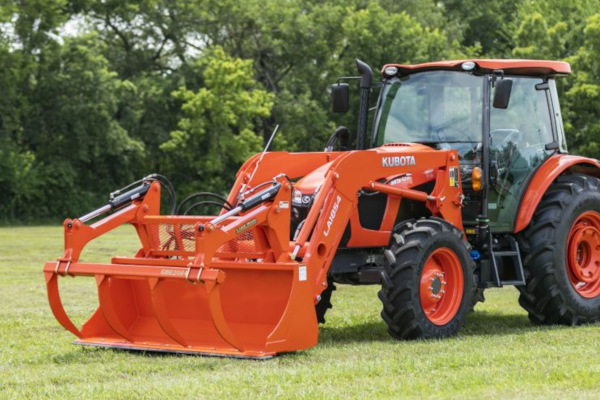

| Model | GB2084 |
| Hitch Style | Universal Quick Attach |
| Weight (Optional BOE and Valve included) | 997 lbs |
| Bucket Capacity (Struck) | .7 yd. capacity |
| Overall Width | 84" (2.13 m) |
| Grapple Opening (With BOE) | 77" |
| Number of Tines | 4 |
| Tine Thickness | 3/4" |
| Tine Construction | Ductile iron tine with reinforced gussets |
| Hydraulic Cylinder | Dual 3" x 14" x 1 1/2" rod |
| Maximum Pressure Rating | 3500 psi (24MPa) |
