Features
| Features | Benefits |
| Cat. I hitch | Fits tractors up to 45 horsepower. |
| Quick Hitch compatible | Makes it easy to hook-up to the cultivator. |
| Heavy-duty angle frame with C-channel support brace |
Angle frame stands up to rugged treatment. C-channel support brace helps stiffens the angle frame. |
| Stabilizing C-tine support brackets |
Holds C-tine shanks straight. |
| Adjustable C-tine shanks | Shanks can be adjusted to operator preference. Shanks can be adjusted to clear row crop such as sweet corn. |
| High drawbar clearance | Allows the cultivator to operate in the ground without moving or removing the drawbar. |
Specs

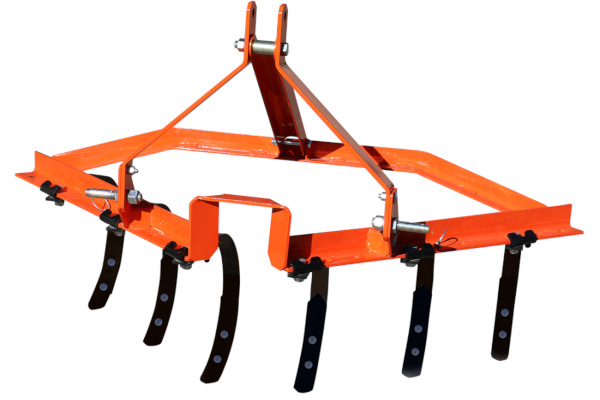

| Model | FC10 |
| Tractor horsepower | Maximum 45 hp |
| Hitch type | Cat I 3-point & Cat I Quick Hitch compatible |
| Frame construction | Formed steel angle |
| C-channel support brace | Formed out of heavy plate |
| C-tine support bracket | 1/4" Formed plate holds C-tines straight |
| C-tine shanks | Heat treated 3/8" spring steel Shanks can be adjusted 4 1/4" horizontally in 2 1/8" increments (See illustration below) |
| C-tine spacing | Adjustable |
| C-tine blades | Adjustable up to 7/8" along the shank curvature Reversible by rotating them 180o on the C-tine shanks Replaceable without replacing C-tine shanks |
