3-Point Hitch

Designed for deep tillage with strength and durability in mind. This Category III, 3-point hitch is integrated into a two-bar frame design with main members of heavy-duty, 6”x6” structural steel tubing.

Drawbar Pull-Hitch (Small Frame)

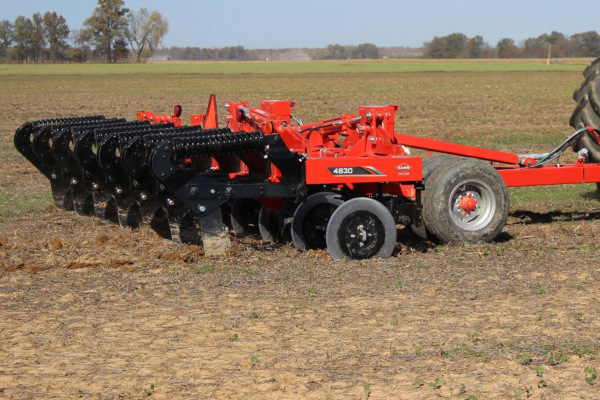

The optional drawbar pull-hitch lets you match tractors, not equipped with 3-point hitches, to the 4830 in-line ripper. Equipped with four 280/70 R 15 tires, the drawbar hitch provides excellent field flotation and depth control.

Drawbar Pull-Hitch (Large Frame)

The optional drawbar pull-hitch lets you match tractors, not equipped with 3-point hitches, to the 4830 in-line ripper. Four 280/70 R15 tires rear and (2) 280/70 R15 tires on front mounted gauge wheels.

Shear-Bolt

Rigid, shear-bolt mounts are an economical choice for soils where rocks or other obstacles are not a concern.  Shear-bolt protection guards against shank damage from unexpected obstacles.

• Shear force: 10,000 pounds (approximate)
• 16” maximum shank working depth
• For non-rock conditions

Spring Reset

Recommended for field conditions where obstacles or rocks may be encountered. A 4”x4” welded tube provides strength.

•  2,500 pound point load
•  20” trip height
•  16” maximum shank working depth
•  36” underframe clearance

PathFind’R™

Exclusive pivoting design allows the shank to deflect up to 6 degrees on each side for a total of 12 degrees of movement.

•  Basic spring reset design
•  Makes deep ripping possible on contours or terraces
•  Deflects impacts improving performance in rocky soils
•  Smoother steering under full power with tracked tractors
•  Reduces stress on implement frame and 3-point tractor hitch
•  Not compatible with pull-type hitch
•  20” trip height
•  16” maximum shank working depth
•  36” underframe clearance

MRD Shanks, Points and Wings (Minimum Residue Disturbance)

Choose from a variety of MRD shank points and wings to achieve optimum residue level and surface appearance.

•  1-1/4” Profile
•  Austempered ductile, reversible wear bar
•  Welded chromium carbide side plates

2” Chromium Carbide Point

5” Shattering Wing

•  Residue remaining: 51% to 65%
•  Fracture: 36% to 52%

Low-Disturbance Shank Cap

•  Residue remaining: 51% to 65%
•  Fracture: 31% to 48%

¾” Chromium Carbide Point

5” Shattering Wing

•  Residue remaining: 68% to 75%
•  Fracture: 36% to 52%

 Low-Disturbance Shank Cap

•  Residue remaining: 68% to 75%
•  Fracture: 31% to 48%

No-Till Shank, Points and Wings

The no-till point and 8” wing break up the compacted soil layer, while the narrow ¾” shank slips through the soil leaving up to 86% residue on the surface. With replaceable wear parts, this no-till design offers up to 50% operation cost saving versus competitors.

•  ¾” profile
•  High-tensile steel shank
•  Austempered or chromium carbide points, wings and wear bar
•  Chromium carbide side plates
•  Residue remaining: Up to 86%
•  Fracture: 55% to 70%
•  Replaceable wear parts

2” Hard Surface Point

•  Best performance for rocky conditions
•  Residue remaining: 51% to 65%
•  Fracture: 31% to 48%
