Simple Starting
Stop switch automatically resets to ON so trimmer is ready for next use
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Smart Start® Technology
Specially-designed engine and starter for easy and fast starting with minimum effort
Ergonomic Design
Comfortable curved handle and shaft for easier use and increased maneuverability
High Line Capacity
Tap 'n' Go trimmer head is easy to use and refill
Low Noise Engine
Specially-designed engine reduces extra noise

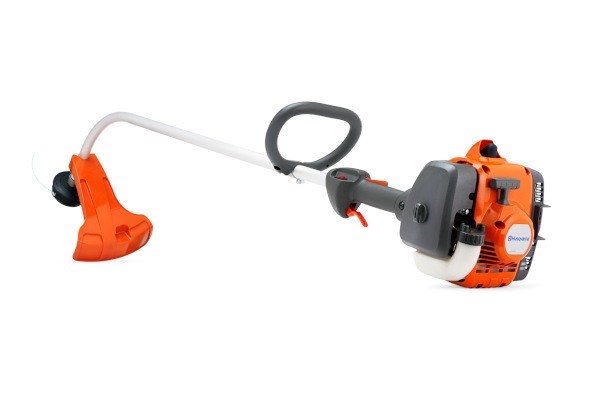

| Vibration | 22cc, Curved Shaft Trimmer SKU: 966 71 27‑01 |
| Equivalent vibration level (ahv, eq) left handle | 5 m/s² |
| Equivalent vibration level (ahv, eq) right handle | 3.6 m/s² |
| Equivalent vibration level (ahv, eq) front handle | 5 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 3.6 m/s² |
| Capacity | |
| Cutting width | 17 in |
| Dimensions | |
| Weight (excl. cutting equipment) | 9.7 lbs |
| Product size length | 59.4 in |
| Product size width | 9.4 in |
| Tube length | 54.37 in |
| Product size height | 14.8 in |
| Tube diameter | 1 in |
| Emission | |
| Exhaust emissions (CO average) | 230.89 g/kWh |
| Exhaust emissions (CO average) | 254.87 g/kWh |
| Exhaust emissions (CO average) | 254.87 g/kWh |
| Engine | |
| Cylinder displacement | 1.3 cu.inch |
| Power output | 0.8 hp |
| Maximum power speed | 7,800 rpm |
| Fuel tank volume | 12.2 fl oz |
| Fuel consumption | 630 g/kWh |
| Fuel consumption | 0.79 lbs/h |
| Idling speed | 2,900 rpm |
| Spark plug | Husqvarna HQT-4 672201 |
| Electrode gap | 0.02 in |
| Torque, max. at rpm | 6,000 rpm |
| Torque, max. | 0.8 Nm |
| Clutch engagement speed (±120) | 4,200 rpm |
| Maximum rpm output shaft | 10,000 rpm |
| Equipment | |
| Grass blade | Not included |
| Harness | Not included |
| Trimmer head | T25 (R) |
| Saw blade | Not included |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Sound and Noise | |
| Sound pressure level at operators ear | 88 dB(A) |
| Sound power level, guaranteed (LWA) | 104 dB(A) |
| Transmission | |
| Gear ratio | 1.1 |
