Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Barrier bar
Equipped with barrier bar for increased stability during operation.
Optimal Cutting Performance
Trimmer head designed for high torque to deliver optimal cutting performance when parallel to the ground
High Line Capacity
Tap 'n' Go trimmer head is easy to use and refill
Auto return stop switch
When the machine is turned off, the stop switch automatically returns to the start position for easier starting.
Standard single harness
Standard harness for lighter brushcutters
Ergonomic Design
Comfortable curved handle and shaft for easier use and increased maneuverability
Versatile guard
The cutting attachment guard can be used with either a grass blade or a trimmer head.

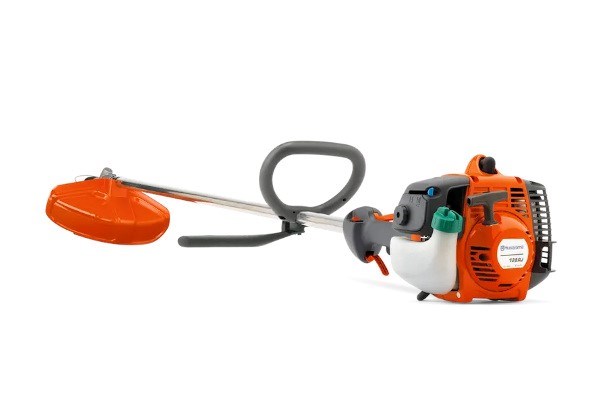

| Engine | 28cc straight shaft brushcutter with T25 trimmer head SKU: 970 51 42‑01 |
| Power output | 1 hp |
| Maximum power speed | 8,000 rpm |
| Fuel tank volume | 13.5 fl oz |
| Fuel consumption | 507 g/kWh |
| Idling speed | 2,750 rpm |
| Electrode gap | 0.02 in |
| Clutch engagement speed (±120) | 4,000 rpm |
| Maximum rpm output shaft | 7,200 rpm |
| Output shaft thread | M10x1.25 Lefthanded |
| Transmission | |
| Gear ratio | 19 |
| Drive gear angle | 30 ° |
| Dimensions | |
| Weight (excl. cutting equipment) | 13.4 lbs |
| Tube length | 46.063 in |
| Tube diameter | 1 in |
| Equipment | |
| Grass blade | Grass 255-4 |
| Harness | Single harness |
| Trimmer head | T25 (L) |
| Saw blade | Not included |
| Lubricant | |
| Lubricant type (Engine) | Husqvarna 2 stroke or equiv. at 50:1 |
| Lubricant type (bevel gear) | Biodegradable grease |
| Emission | |
| Exhaust emissions (HC average) | 32.2 g/kWh |
| Exhaust emissions (HC average) | 34.95 g/kWh |
| Exhaust emissions (HC average) | 32.08 g/kWh |
| Exhaust emissions (CO average) | 288 g/kWh |
| Exhaust emissions (CO average) | 247.13 g/kWh |
| Exhaust emissions (CO average) | 247.13 g/kWh |
| Exhaust emissions (NOx average) | 0.6 g/kWh |
| Exhaust emissions (NOx average) | 0.59 g/kWh |
| Exhaust emissions (NOx average) | 0.4 g/kWh |
