Powerful and Efficient X-TORQ® Engine
Powerful X-TORQ® engine reduces emissions by up to 60% and increases fuel efficiency by up to 20%
LowVib® Technology
Dampeners between the engine and chassis significantly reduce vibrations so you can work more comfortably
Quick Start with Air Purge
Air purge removes air from carburetor and fuel system for easy starting
Air Injection™ Technology
Centrifugal air cleaning system expels larger dust and debris particles before they reach the air filter to help improve engine life
Separate Choke/Stop Switch Controls
Stop switch automatically resets when the choke is pulled out to help prevent accidental flooding
Inertia-Activated Chain Brake
Reduces the likelihood of injury due to kickback.

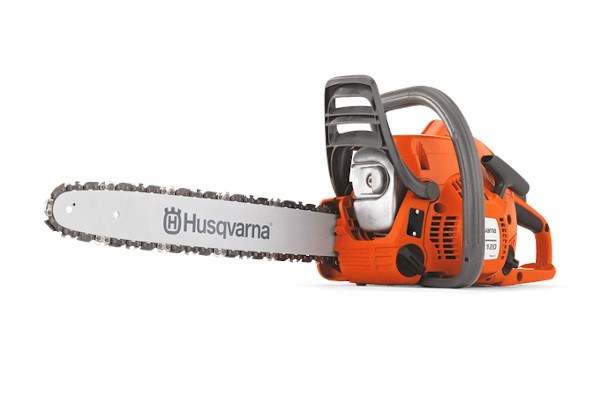

| Engine | 16", 3/8 pitch, .050 ga. 38cc chainsaw FA CraftBx SKU: 970 51 50‑16 |
| Power output | 1.88 hp |
| Cylinder displacement | 38.2 cm³ |
| Maximum power speed | 9,000 rpm |
| Idling speed | 3,000 rpm |
| Clutch engagement speed (±120) | 4,250 rpm |
| Fuel consumption | 428 g/kWh |
| Fuel consumption | 1.32 lbs/h |
| Spark plug | Champion RCJ7Y |
| Electrode gap | 0.02 in |
| Ignition module air gap | 0.01 in |
| Oil pump type | Automatic |
| Equipment | |
| Bar length (inch) | 16 in |
| Recommended bar length, min-max | 14-18 in |
| Chain type | H37 |
| Gauge | .050" |
| Pitch | 3/8" mini |
| Sprocket type | Spur 6 |
| Dimensions | |
| Weight (excl. cutting equipment) | 10.7 lbs |
| Lubricant | |
| Lubricant type | Husqvarna 2 stroke or equiv. at 50:1 |
| Oil tank volume | 0.32 US pint |
| Sound and noise | |
| Sound power level, guaranteed (LWA) | 113 dB(A) |
| Sound power level, measured | 100.7 dB(A) |
| Sound pressure level at operators ear | 100.7 dB(A) |
| Vibrations | |
| Equivalent vibration level (ahv, eq) front handle | 2.1 m/s² |
| Equivalent vibration level (ahv, eq) rear handle | 2.7 m/s² |
