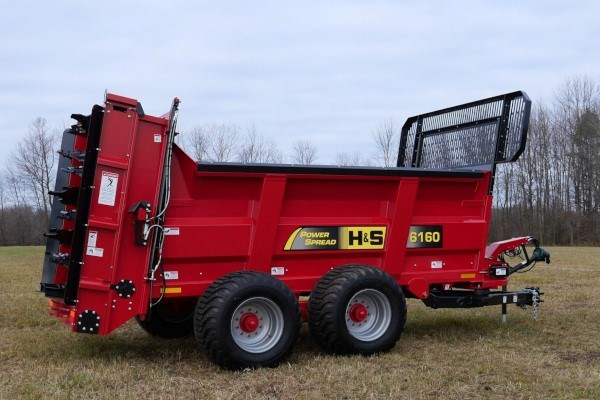

H&S PS6160 404 Cu. Ft.

PS6160 404 Cu. Ft. Struck Per ASAE S324.2 PowerSpread

1/2" Beater Flighting w/Replaceable Beater Paddles
Heavy-Duty Monobloc Beater & Apron Drive Gearboxes
5/8" Marine Grade Main Apron Log Chain
1.5” x 2.5” x ¼” Wall Apron Chain Slats

Get a Quote Value Your Trade Request Brochure
Send to a Friend
Payment Calculator

Get information on the PS6160 404 Cu. Ft.

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Title

Name*

Email*

Phone

Comments*

Request Brochure

Fields with asterisks* are required. Please email our helpful staff with any questions or comments using the contact form.

Item*

Name*

Email*

Phone*

Address*

City*

Postal Code*

Send your friend information on the PS6160 404 Cu. Ft.

Fields with asterisks* are required. Your friend will receive an email that contains a reference to this page. Please send this email only to people you know who would be interested in this information.

Requesting Trade In on PS6160 404 Cu. Ft.

Contact Information

Equipment Interested In

Trade Information

Request A Demo

Fields with asterisks* are required.

Loan Calculator

Use the Loan Calculator to help you determine the financing and payment options that are best for you.

**The accuracy of this calculator and its applicability to your circumstances is not guaranteed. You should obtain personal advice from qualified professionals. This information is provided for illustrative purposes only and does not constitute an application. This notice does not guarantee loan approval, nor is it an offer or commitment to make a loan to you on the above terms.

Shopping Tools

Contact Salesman

Request Demo

Apply for Financing

Features
Specifications

PS6160 404 Cu. Ft. Features & Benefits

509 cu ft heaped capacity per ASAE S324.2
A center drive shaft with a torque limiting clutch provides power and protection to the bottom driven monobloc gearbox
Dual hydraulic cylinder guillotine/metering style end gate
Vertical beaters feature reverse flighting; this patented feature allows for an even spread pattern of material
1/2” material is used for the flighting
5/8″ Grade 80 Apron Chain
Single bolt easy adjust main apron chain
1.5” x 2.5” x ¼” apron slats
Beater blades are replaceable, and the beater assembly is removable for stockpiling manure
Constant velocity PTO
Heavy hydraulic hose couplers
Heavy built frame
Poly side load bump rails
LED highway lighting

PS6160 404 Cu. Ft. Specs & Compare

MODEL	PS6160
Capacity
Capacity Heaped Bushel Per S324.2	409.07
Capacity Cu. Ft. Struck Level Per ASAE S324.2	404
Capacity Cu. Ft. Heaped Per ASAE S324.2	509.07
Capacity Heaped Bushel Per S324.1	N/A
Height
Side Loading Height	89.5" (227.33 cm)
Vertical Beater Height	118.38" (300.7 cm)
Dimensions
Inside Width	73″ (185.4 cm)
Inside Length	177″ (4.5 m)
Inside Depth	52.3" (132.84 cm)
Overall Width w/Tires	139" (353.06 cm)
Overall Length	297″ (7.5 m)
Construction
Standard Number of Beaters	2
Vertical Beater Diameter	34″ (86.4 cm)
Replaceable Beater Paddles	Yes
Removeable Beater Assembly	Yes
Apron Chain Size	5/8″ Grade 80
Hub	12,000 lbs.
Spindle Size	3″ (7.6 cm)
Poly Bump Rails	Standard
PTO Choices	Choice of 1 ⅜″ or 1 ¾″ 1,000 RPM Constant Velocity
Standard
Jack	Crank
Weight
Weight w/Tires	11,539 lbs.
